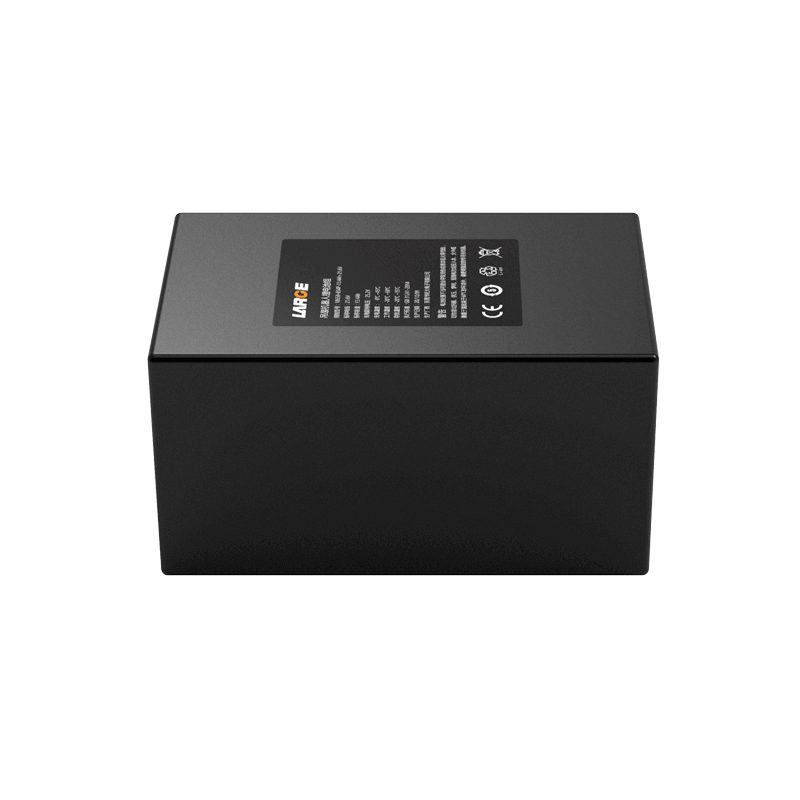

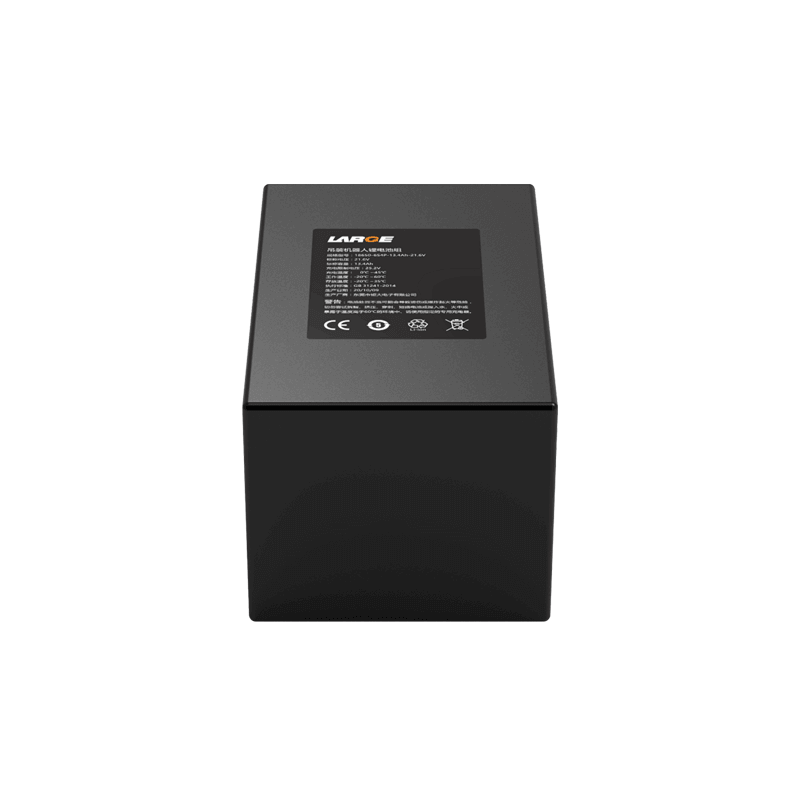

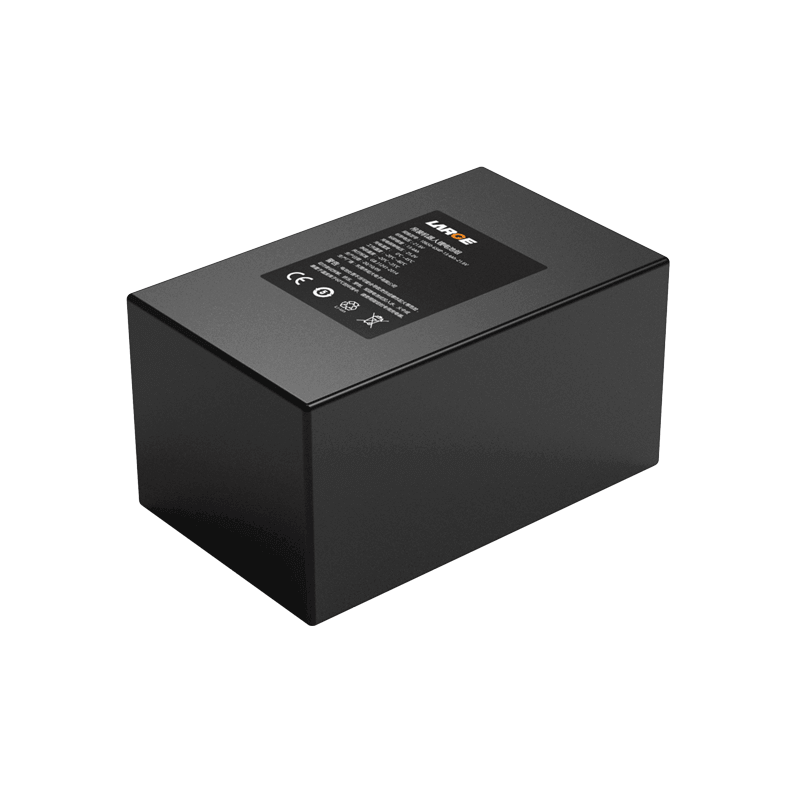

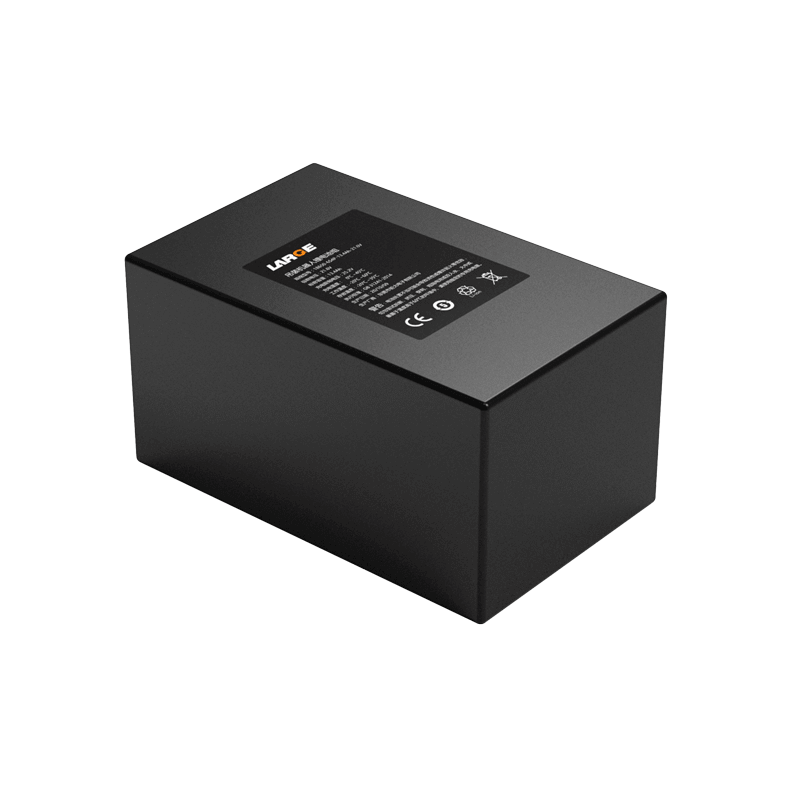

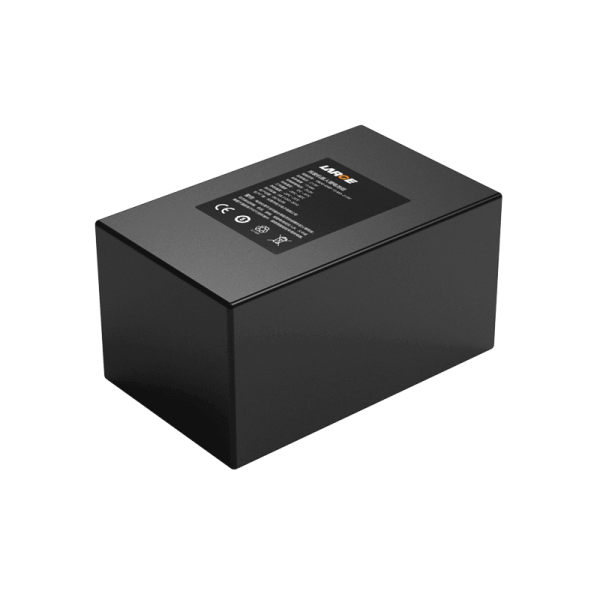

21.6V 13.4Ah Samsung Battery Ternary Battery for Hoisting Robot

Product number: 05DQ0047-01

Cell model：18650-3500mAh-3.6V-35E

Battery specification: 18650-6S4P-13.4Ah-21.6V

Nominal voltage：21.6V

Nominal capacity：13.4Ah

Charging voltage: 25.2V

Charging current: ≤5A

Discharging current: 3A

Instant discharging current: 5A

End-off voltage: 15V

Internal resistance: ≤180mΩ

Battery weight: 1500g

Product dimension: 132×86×72mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35 ℃

Battery case: PVC shrink film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, ESD protection, etc.

Application field: patrol robot, hoisting robot

Product features

1. PVC shrink film is reliable and is easy to assemble.

2. Adopt T-type plug output mode to increase the conductive reliability of the plug, and gold-plated hardware terminal output mode is adopted to increase the conductive reliability.

3. Battery protection management: Adopt special lithium battery protection chip with good stability, high precision monitoring, accurate control, temperature protection and other functions, so as to eliminate safety hazard to the greatest extent.

4. The battery pack has good security, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection..
