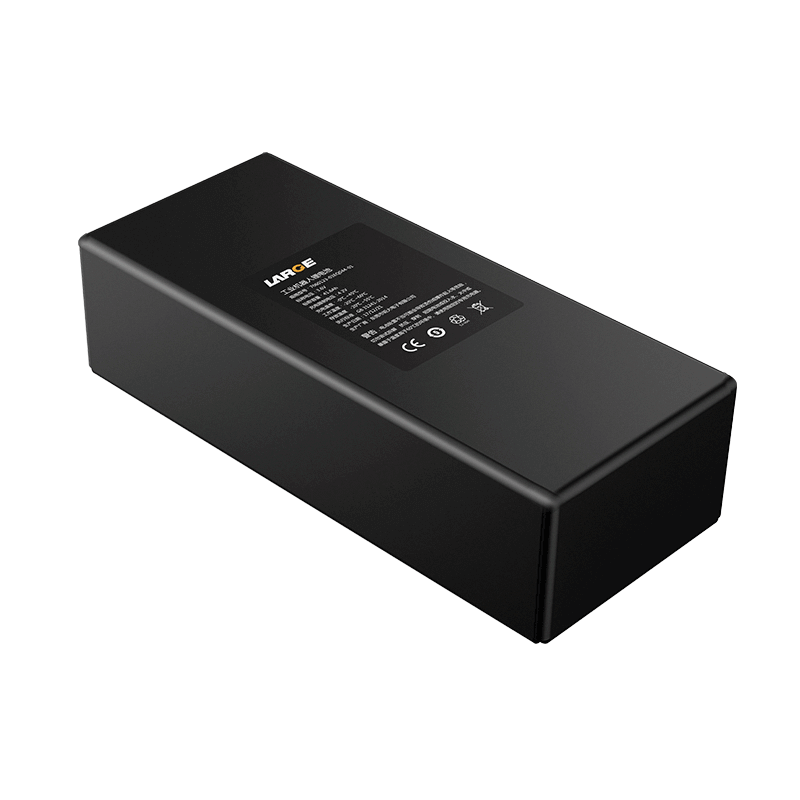

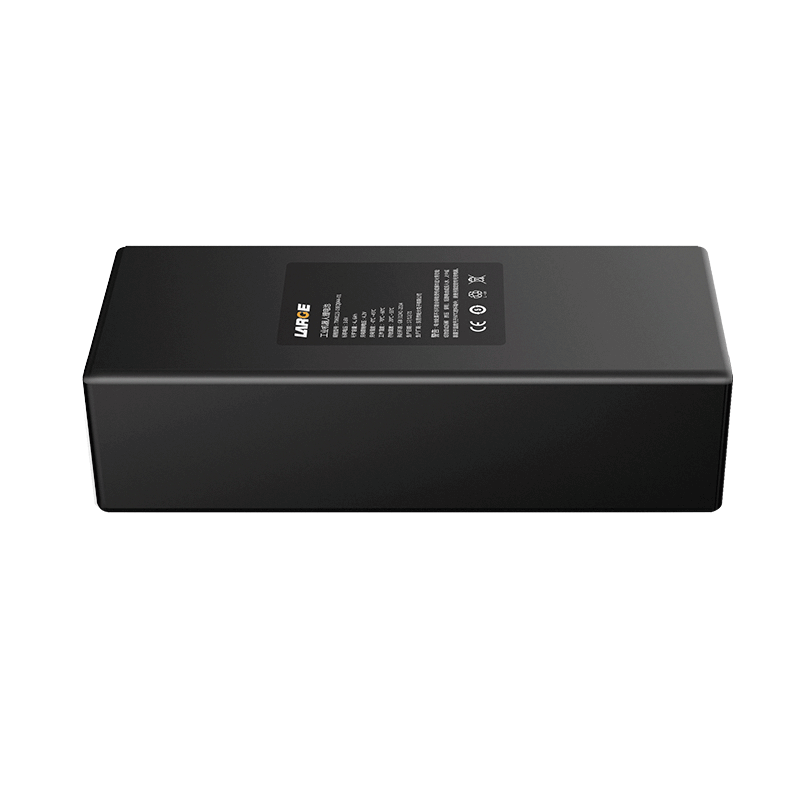

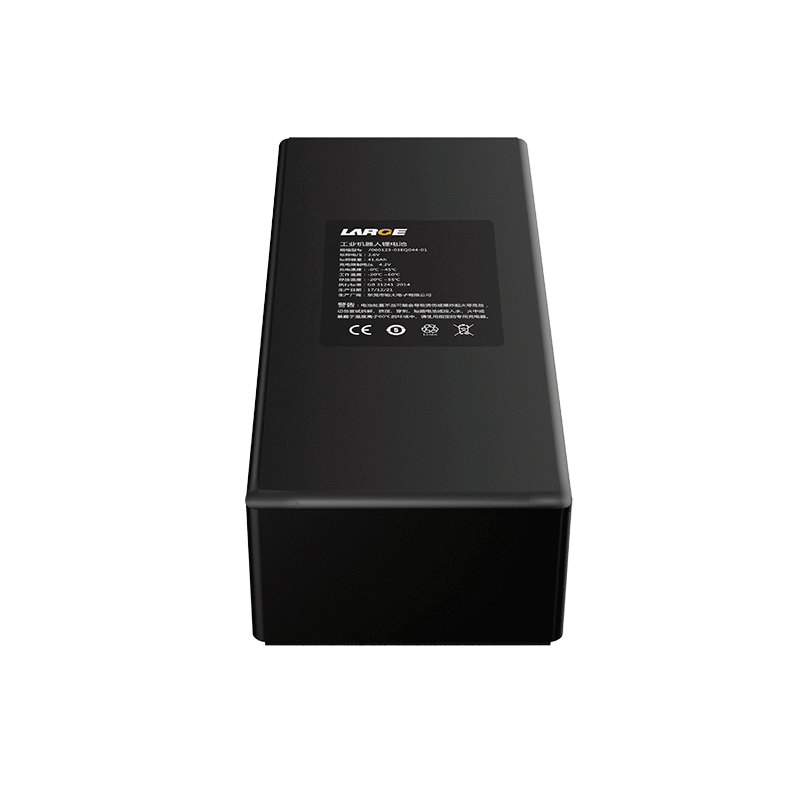

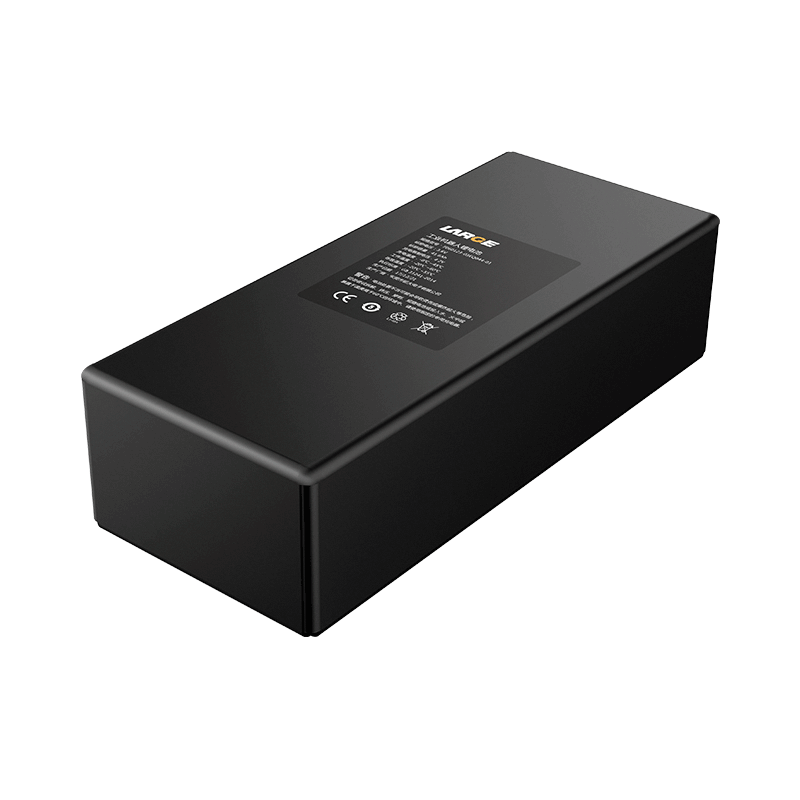

Custom Lithium Ion Battery Pack

18650 3.6V 40Ah Lithium Power Battery Lishen Battery for Industrial Robot

  • Model number:03EQ044-01

  • Nominal voltage:3.6V

  • Nominal capacity:41600mAh

  • Battery cell:18650/3.6V/2600mAh

  • Dimension:170*72*45mm(Max)

  • Application:industrial battery, backup battery of industrial robot, etc.

Product Detail

Product number: 03EQ044-01

Cell model:18650/3.6V/2600mAh

Battery specification: 18650-1S16P/3.6V/40Ah

Nominal voltage:3.6V

Nominal capacity:41.6Ah

Charging voltage: 4.2V

Charging current: ≤4A

Discharging current: 8A

Instant discharging current: 20A

End-off voltage: 2.8V

Internal resistance: ≤100mΩ

Battery weight: 800g

Product dimension: 170*72*45mm(Max)

Charging temperature:-0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~55 ℃

Temperature protection: 60℃±5℃

Battery case: outsourcing PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: industrial battery, backup battery of industrial robot, etc.


*
*
*
