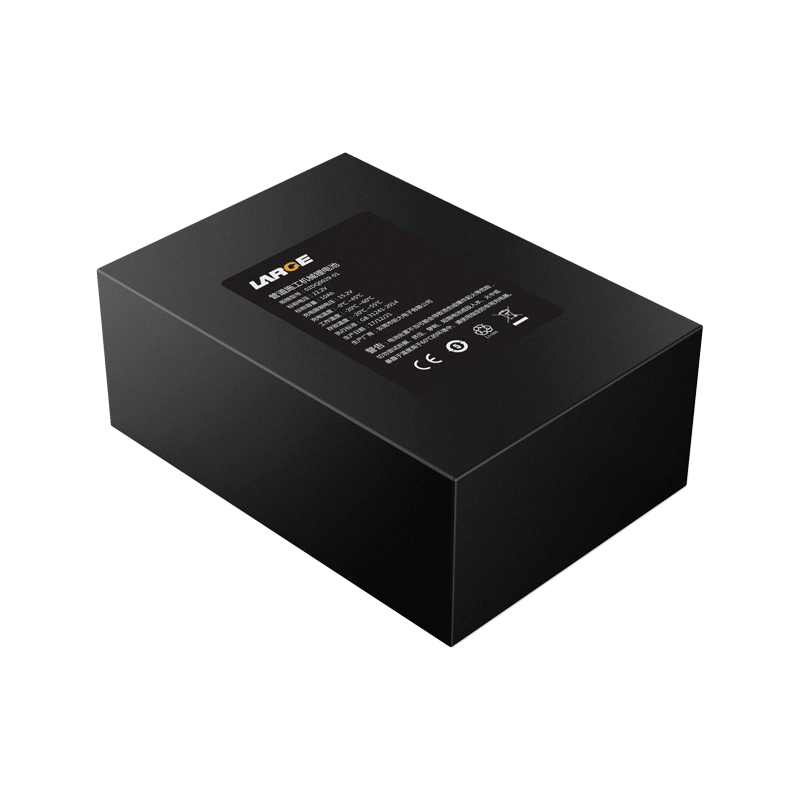

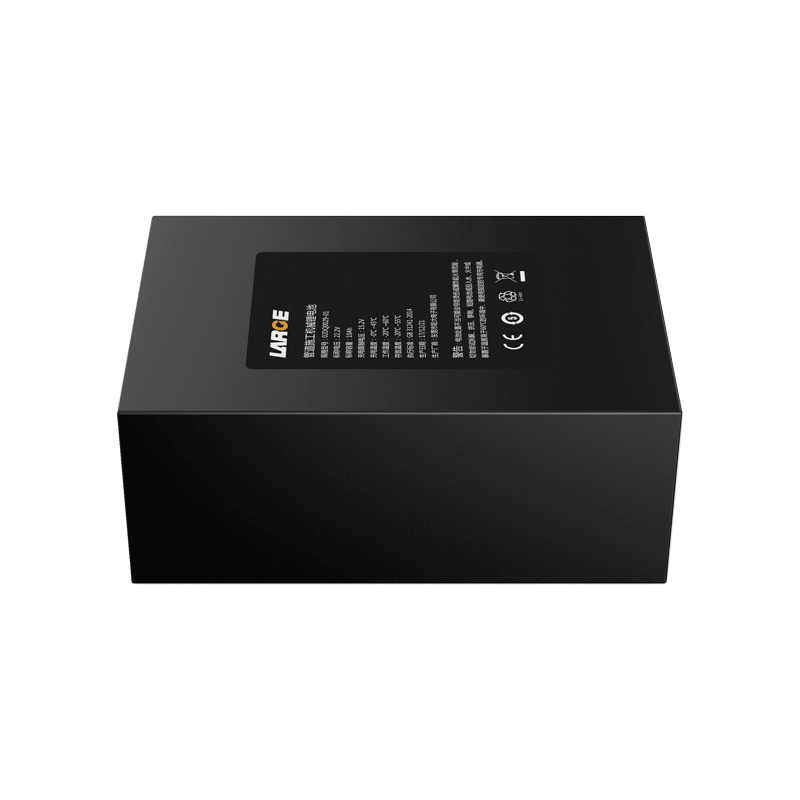

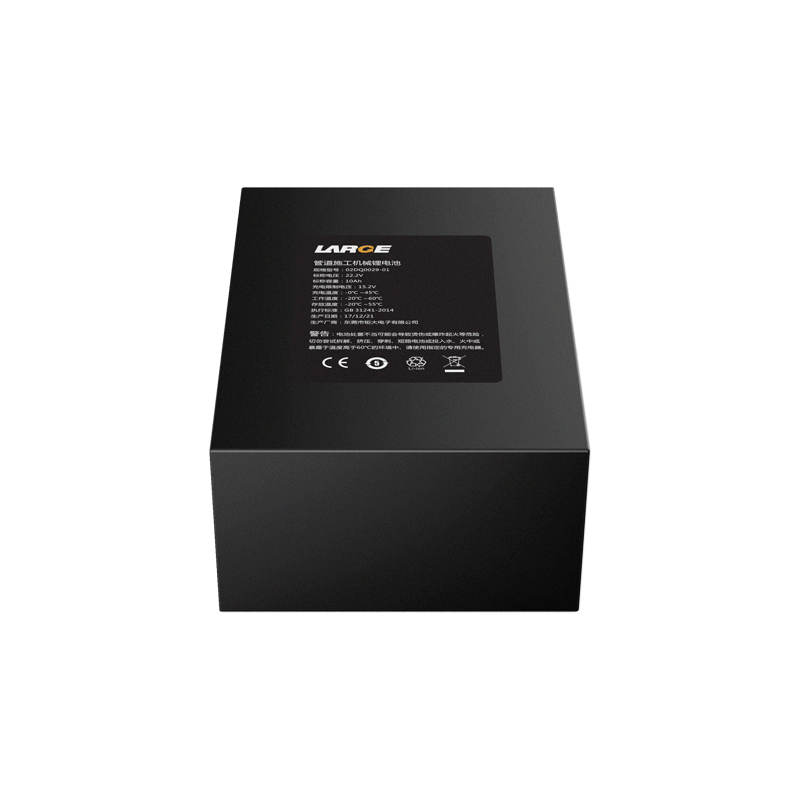

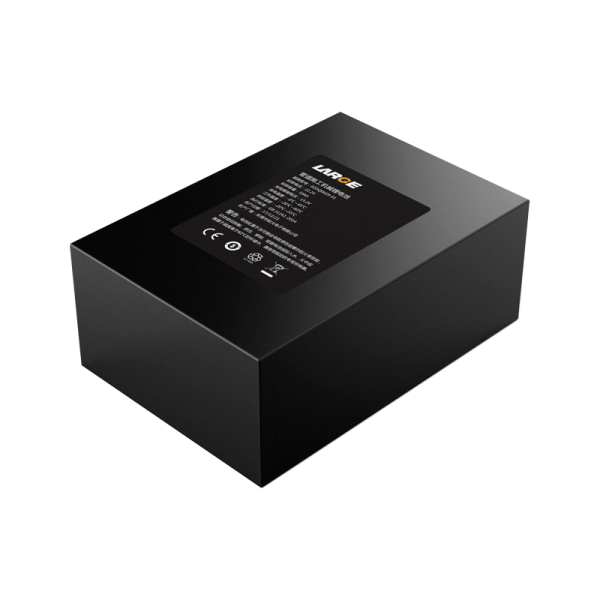

18650-6S4P 22.2V 10Ah Lithium Ion Battery Pack
Product Number:
02DQ0029-01
Nominal voltage:
22.2V
Nominal capacity:
10Ah
Battery Configuration:
18650-6S4P
Dimension:
181 × 127 × 71 mm (Max)
Application:
Machine of Pipe Constrution
Blue PVC casing, High-current 10A discharge, Multi-layer protection
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 02DQ0029-01 |
| Cell Model | 18650/3.7V/2.5Ah |
| Battery Configuration | 18650-6S4P |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 10Ah |
| Rated Energy | 222Wh |
| Charging Voltage | 15.2V |
| Discharge Cut-off Voltage | 18.0V |
| Standard Charging Current | ≤5A |
| Standard Discharge Current | 5A |
| Max Continuous Discharge Current | 5A |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 181 × 127 × 71 mm (Max) |
| Weight | 1.9 kg |
| Battery Case | Blue PVC |
| Protection System | Short circuit, overcharge, overdischarge, overcurrent |
Application Background
This battery solution is designed for pipeline construction machinery and testing & control instruments, suitable for long-duration operation and high-load monitoring scenarios.
The devices require stable power to support mechanical operation and data acquisition while ensuring safety and reliability, demanding high performance in endurance, current capacity, and compact structure.
Project Challenges
- Continuous operation required for 6–8 hours or more
- Instantaneous discharge up to 10A may cause voltage fluctuations
- Frequent charging and discharging, requiring long cycle life and stability
- Limited device size, strict constraints on dimensions and weight
Customized Battery Solution
- High-voltage 22.2V output structure to support high-power mechanical operation
- Blue PVC casing, lightweight and durable
- Multi-protection system: short circuit, overcharge, overdischarge, and overcurrent protection
- Wide-temperature compact design: -20–60℃ operation, suitable for tight device space
Application Results
- Supports continuous operation for 6–8 hours or more
- Stable output under high-load operation, performance improved by ~15%
- Durable casing enhances device reliability
- Excellent cycle performance, extending battery and device service life
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
