Custom Lithium ion Battery Pack

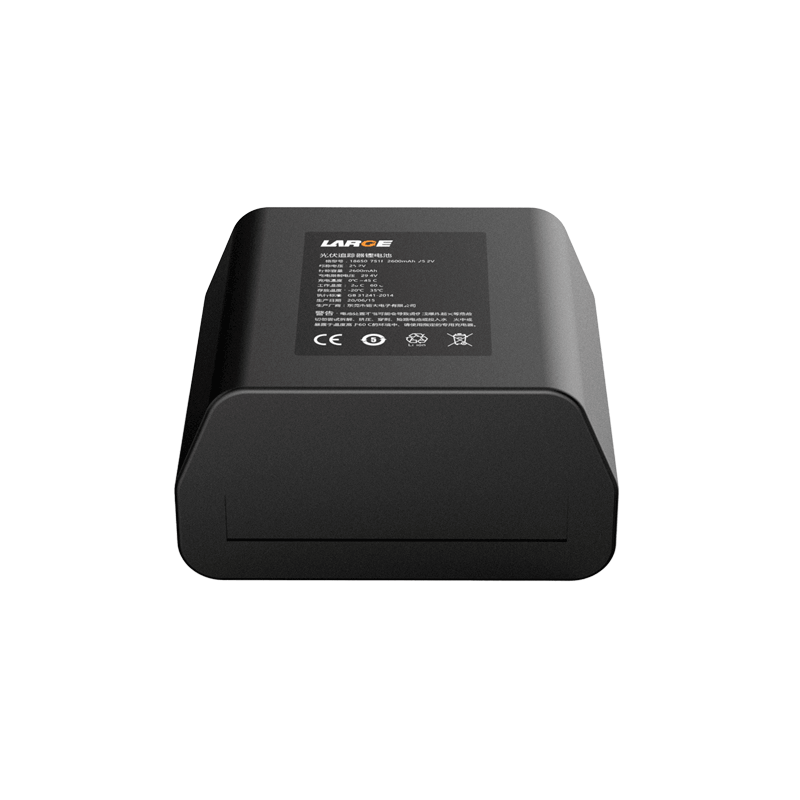

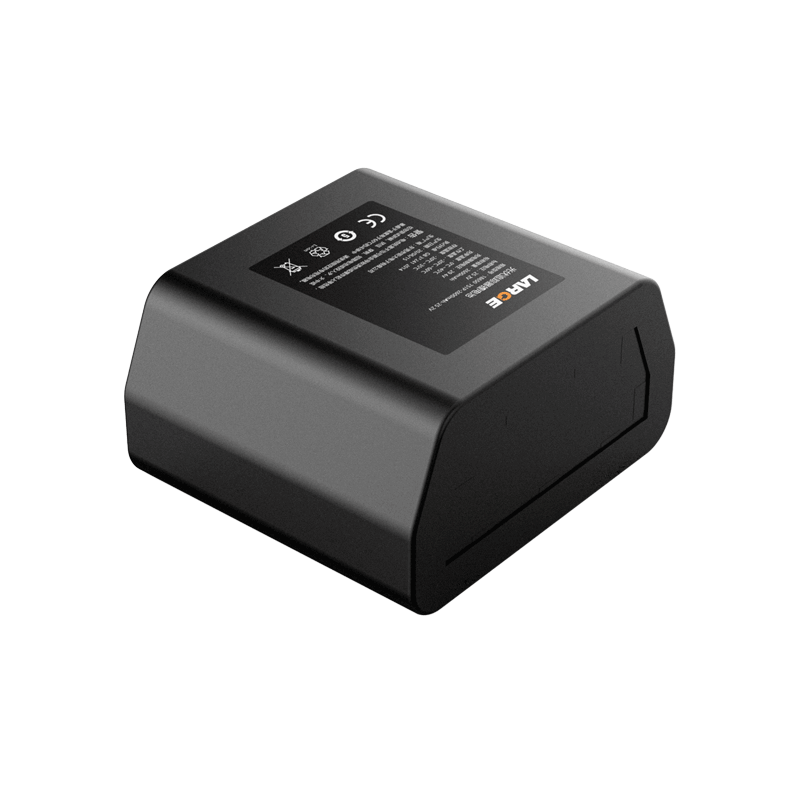

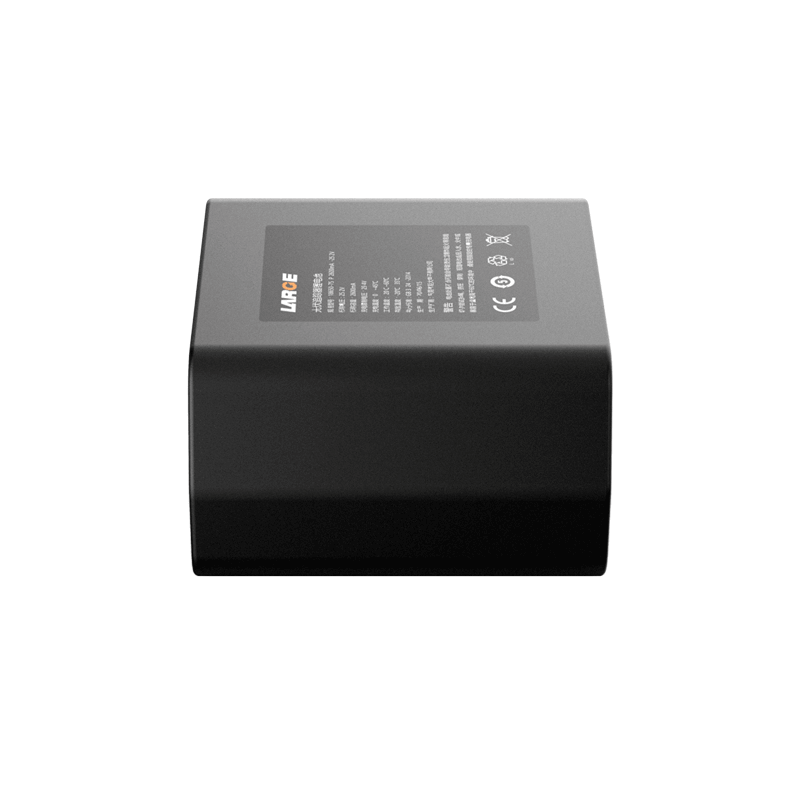

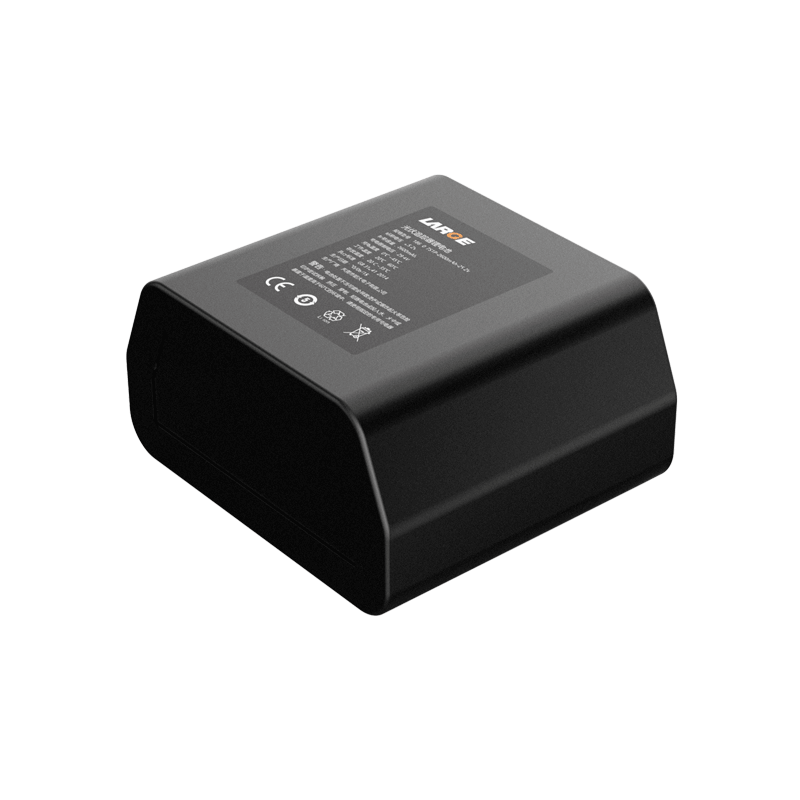

18650 25.2V 2600mAh Lithium Ion Battery for Photovoltaic Tracker

Product Detail

Product number: 36AQ347-01

Cell model:H18650CQ/2550mAh/3.6V(BAK)

Battery specification: 18650-7S1P-2600mAh-25.2V

Product dimension: 70*79*40mm(Max)

Nominal voltage:25.2V

Nominal capacity:2600mAh

Charging voltage: 29.4V

Charging current: ≤1.3A

Discharging current: 0.5A

Instant discharging current: 10A

End-off voltage: 21V

Internal resistance: ≤350mΩ

Battery weight: 400g

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: blue PVC shrink film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, ESD protection, etc.

Application field: photovoltaic tracker, portable equipment

Product features

1. Blue PVC shrink film is simple, reliable and easy to install.

2. Connector plug outlet: adopt XT plug to increase conductive reliability.

3. Adopt gold-plated shrapnel output mode to increase the conductivity reliability

4. Battery management: Use special lithium battery protection chip with good stability, high precision monitoring, accurate control, ESD protection and temperature protection to maximize the elimination of safety risks.

5. The battery pack has good safety performance, nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
