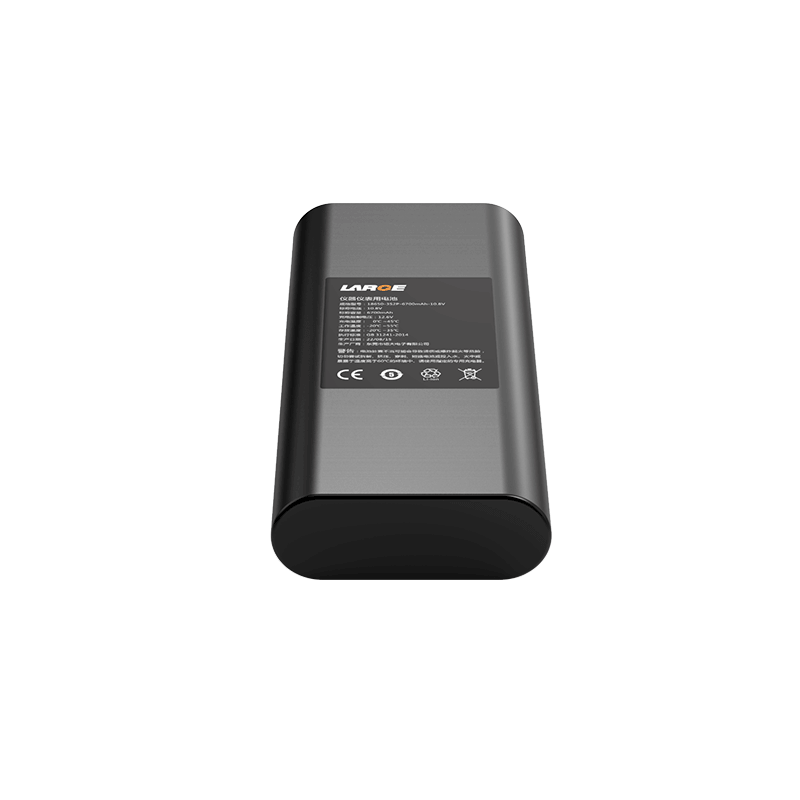

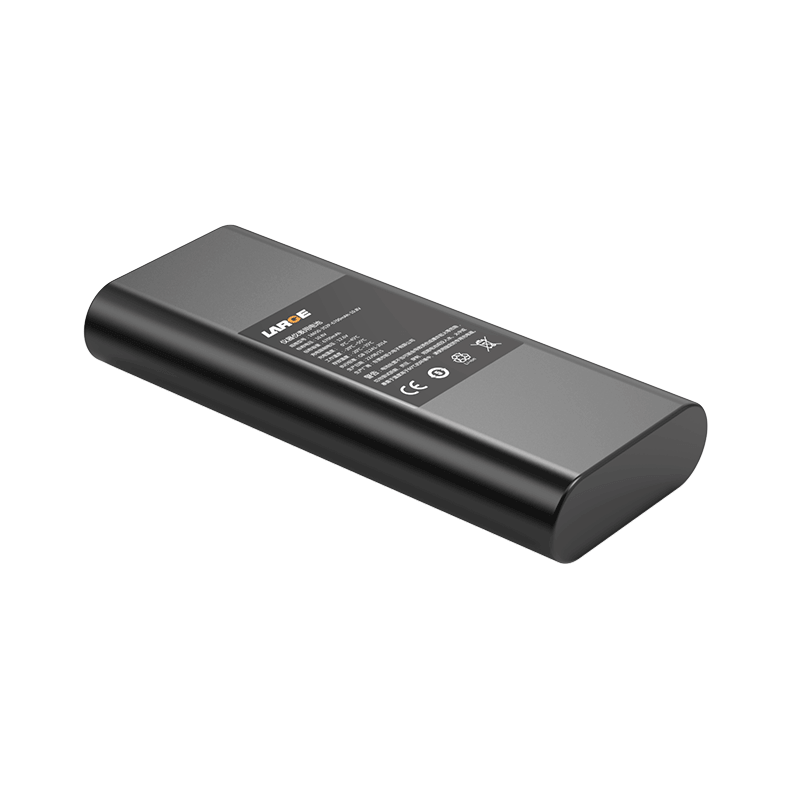

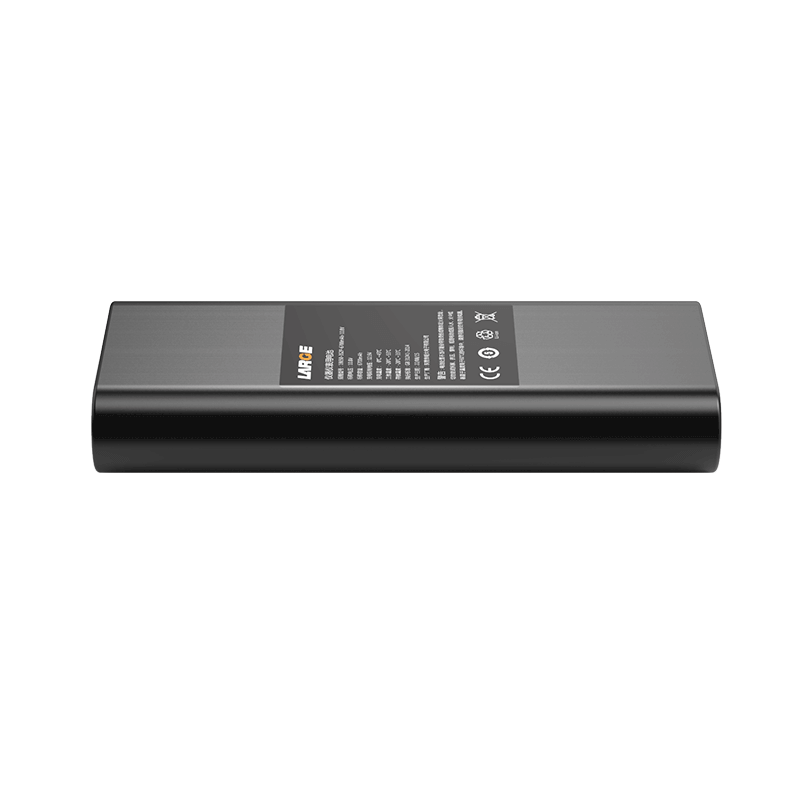

18650 10.8V 6700mAh Batteries for Instrumentation
Product Number:
40AQ036-01
Nominal voltage:
10.8V
Nominal capacity:
6700mAh
Battery Configuration:
18650-3S2P
Dimension:
138 × 58 × 21mm (Max)
Application:
medical tablets
High Capacity Design, Multiple Protection Functions, Stable Power Output
Product Overview
This battery is designed for medical tablets, handheld devices, and portable security equipment, supporting continuous operation in mobile and high-frequency usage scenarios. With stable output and high-capacity performance, it ensures reliable power supply for demanding field applications.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 40AQ036-01 |
| Cell Model | 18650-3350mAh-3.6V |
| Battery Configuration | 18650-3S2P |
| Nominal Voltage | 10.8V |
| Nominal Capacity | 6700mAh |
| Rated Energy | 72.36Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 7.5V |
| Standard Charging Current | ≤3350mA |
| Standard Discharge Current | 1280mA |
| Max Continuous Discharge Current | 3350mA |
| Internal Resistance | ≤180mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ +55℃ |
| Storage Temperature | -20 ~ +35℃ |
| Dimensions | 138 × 58 × 21mm (Max) |
| Weight | 350g |
| Battery Case | Soft Package |
| Protection System | Short Circuit Protection, Over Charge Protection, Over Discharge Protection, Over Temperature Protection, Over Current Protection, ESD Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
