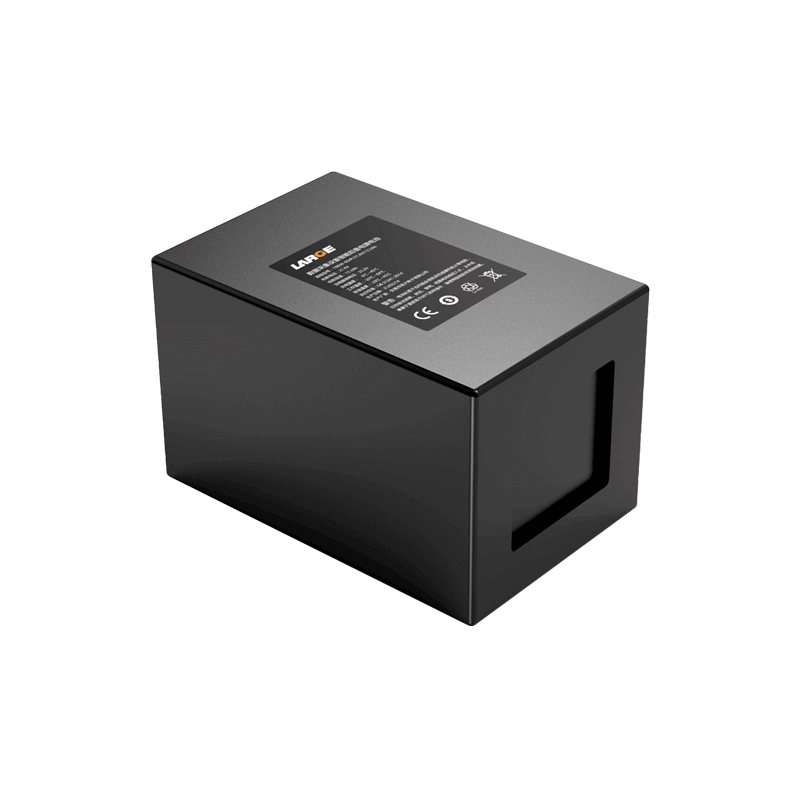

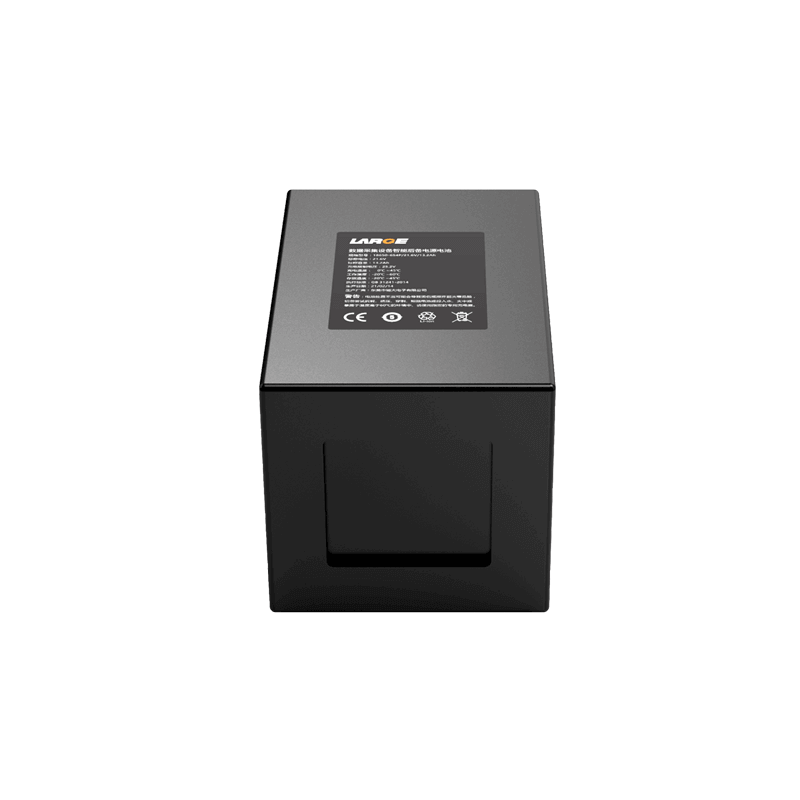

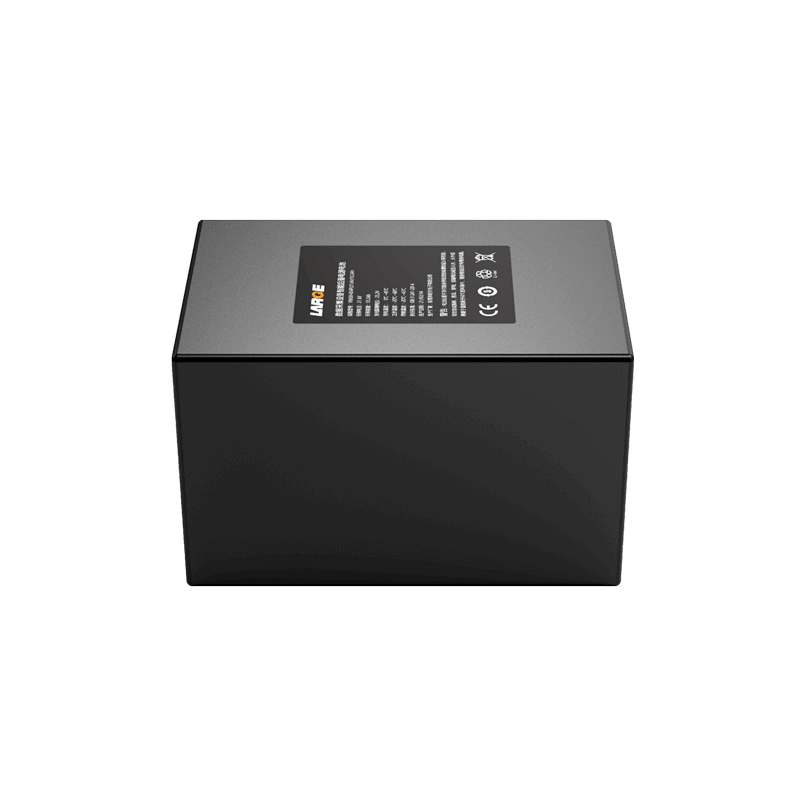

18650 21.6V 13.2Ah Samsung Battery for Data Acquisition Equipment

Product Detail

Product number: 33DZ027-01

Cell model: 18650/3.6V/3.3Ah

Battery specification: 18650-6S4P/21.6V/13.2Ah

Nominal voltage: 21.6V

Nominal capacity: 13.2Ah

Charging voltage: 25.2V

Charging current: ≤6.5A

Discharge current: 10A

Instant discharge current: 30A

Discharge cut-off voltage: 18V

Finished product internal resistance: ≤150mΩ

Battery weight: 1.5g

Product dimension: 150*95*85 mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Temperature protection: 65℃±5℃

Battery case: PVC

Communication: 485 MOSBUS protocol

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, equalization, anti-reverse connection protection, etc.

Application: data acquisition equipment


Product features

1.Small power consumption;

2.Temperature protection

3.The battery pack has good safety and long cycle life;

4.485 communication

5.High current rate discharge

6.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
