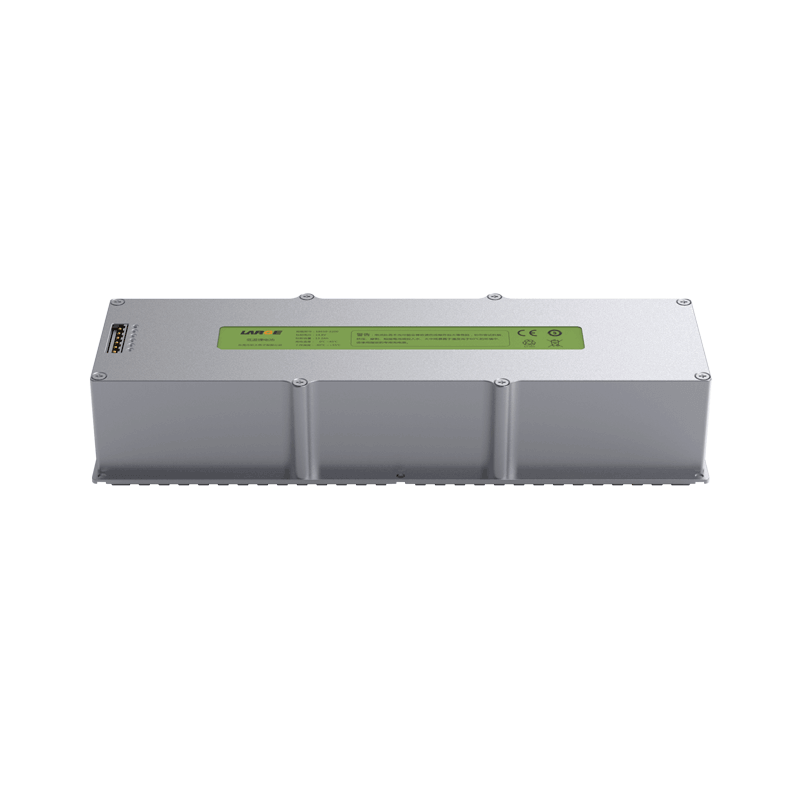

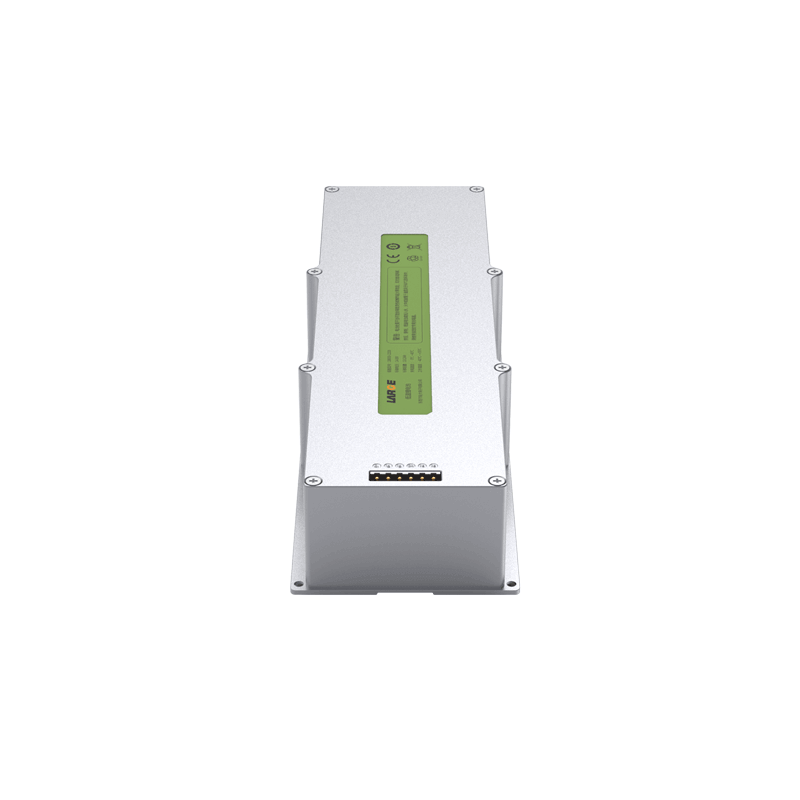

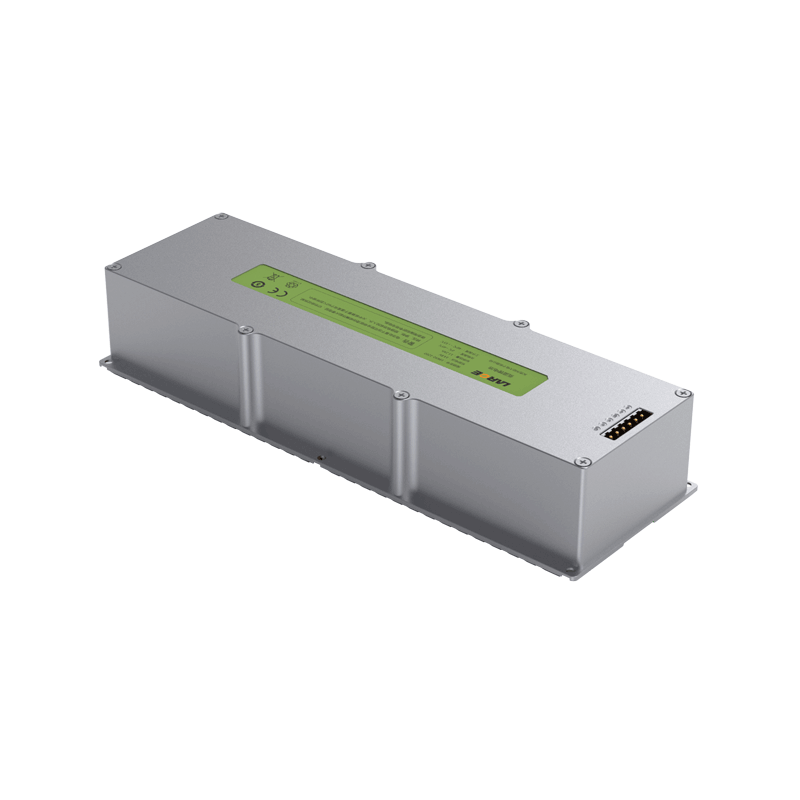

18650 14.8V 13.2Ah Lithium-ion Battery for Instrument

Product number: 00AQ015-02

Cell model: 18650-2200(LARGE)

Specification: 14.8V-13.2AH

Product size: 250±0.3mm×82.0±0.2mm×47±0.3mm

Nominal voltage: 14.8V

Nominal capacity: 13.2Ah

Charging voltage: 16.8V

Charging current: 12.6A

Discharge current: 12.6A

Discharge cut-off voltage: 10V

Product internal resistance: ≤180mΩ

Battery weight: ≤ 1700G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40°C ~+55 °C

Storage temperature: -30 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -10~+20℃ (less than 6 months)

Battery case: aluminum alloy surface conductive oxidation, natural color

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Equipment

Product Features

1.Aluminium alloy shell

2.Input terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt well-known protection chips with good stability, high precision monitoring and precise control, to minimize safety risks.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
