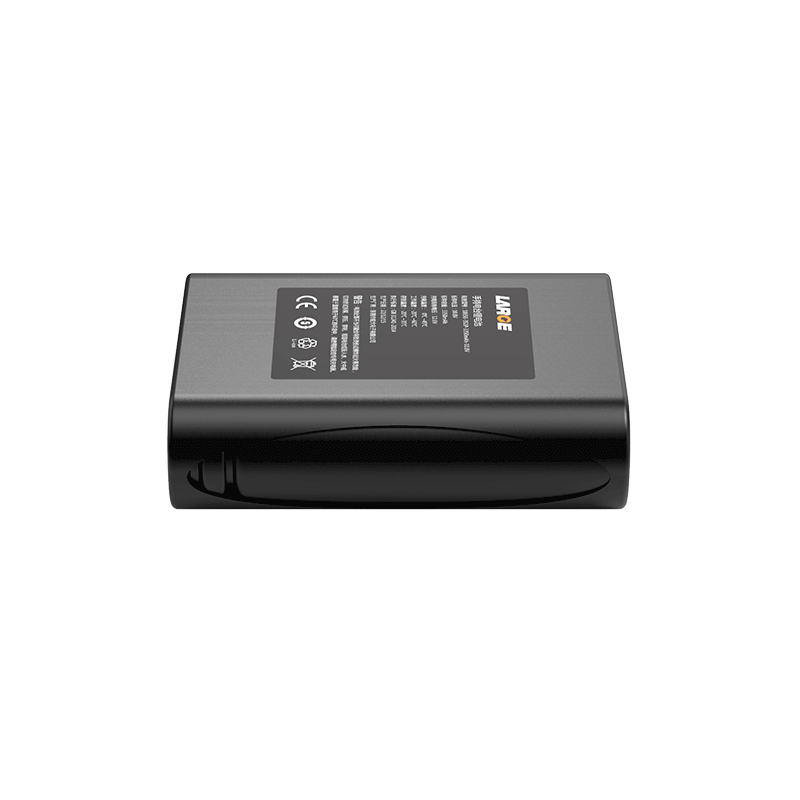

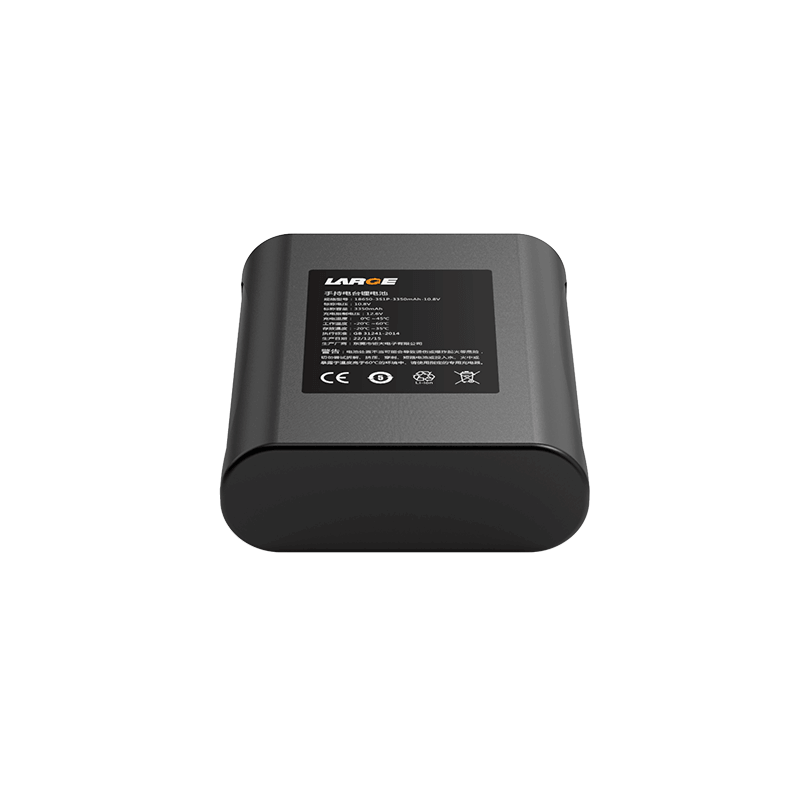

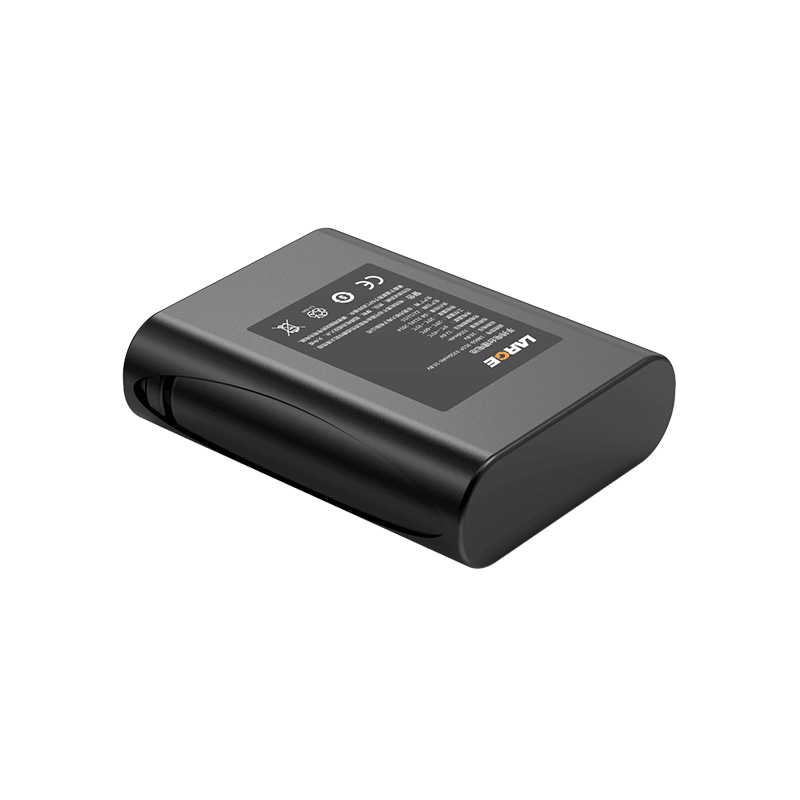

10.8V 3350mAh Lithium ion Battery Pack
Product Number:
08DQ0069-01
Nominal voltage:
10.8V
Nominal capacity:
3350mAh
Battery Configuration:
18650-3S1P
Dimension:
71*56*19.5mm
Application:
Handheld Radio
PVC Heat Shrink,Multi Protection System,DC5521 Output
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 08DQ0069-01 |
| Cell Model | 18650-3350mAh-3.6V |
| Battery Configuration | 3S1P |
| Nominal Voltage | 10.8V |
| Nominal Capacity | 3350mAh |
| Rated Energy | 36.18Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 7.5V |
| Standard Charging Current | ≤1.6A |
| Standard Discharge Current | ≤3.0A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～35℃ |
| Dimensions | 715619.5mm (Max) |
| Weight | 150g |
| Output Type | DC5521 DC connector |
| Battery Case | Blue PVC heat shrink |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, overtemperature protection, overcurrent protection, ESD protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
