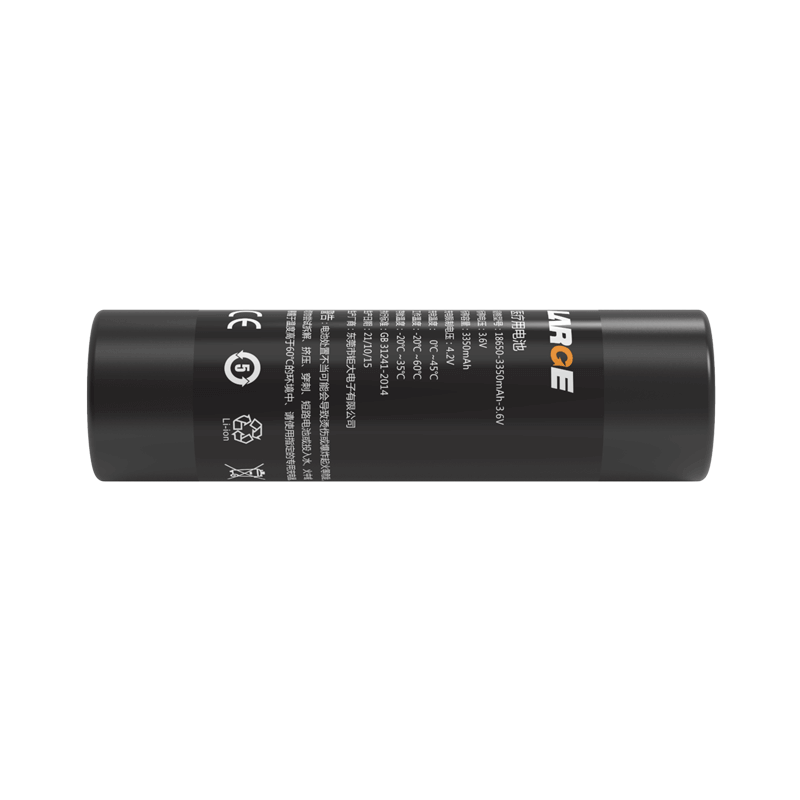

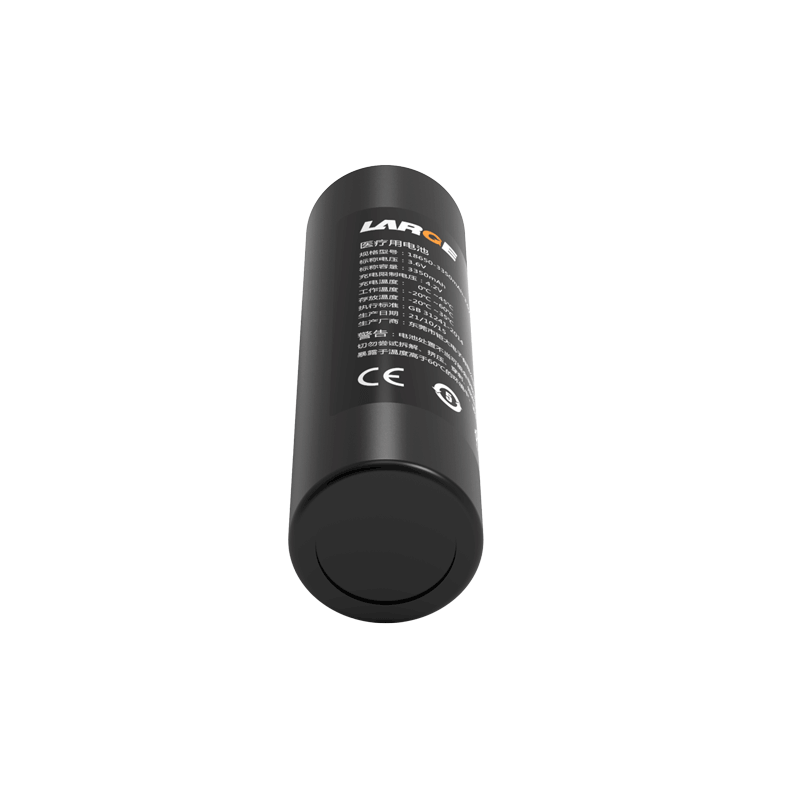

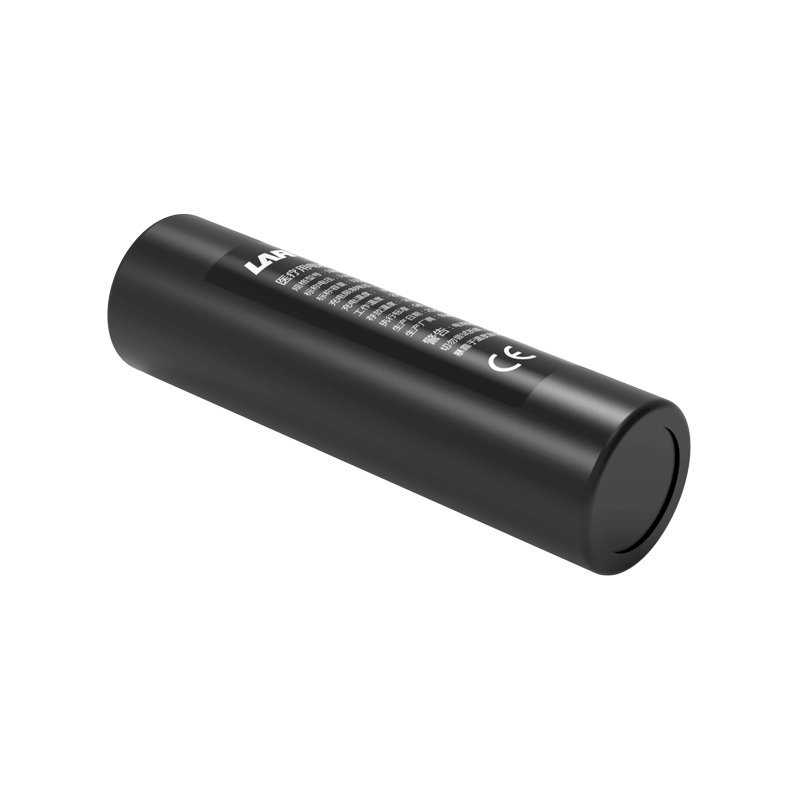

18650 3350mAh 3.6V Medical Lithium-ion Battery
Product Number:
40AQ027-01
Nominal voltage:
3.6V
Nominal capacity:
3350mAh
Battery Configuration:
18650-1S1P
Dimension:
73 × φ19.5mm
Application:
Medical handheld devices
High Energy Density, Multi Protection System, Wide Temperature Range
Product Overview
This lithium-ion battery is designed for medical handheld devices,With compact 18650 design, stable output, and long-lasting performance, it supports continuous operation in portable and space-constrained devices.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 40AQ027-01 |
| Cell Model | 18650-3350MAH-3.6V |
| Battery Configuration | 18650-1S1P |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 3350mAh |
| Rated Energy | 12.06Wh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.65V |
| Standard Charging Current | ≤1.6A |
| Standard Discharge Current | 670mA |
| Max Continuous Discharge Current | 670mA |
| Internal Resistance | ≤160mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 73 × φ19.5mm (Max) |
| Weight | 50g |
| Battery Case | Blue PVC heat shrinkable film package |
| Protection System | Short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
