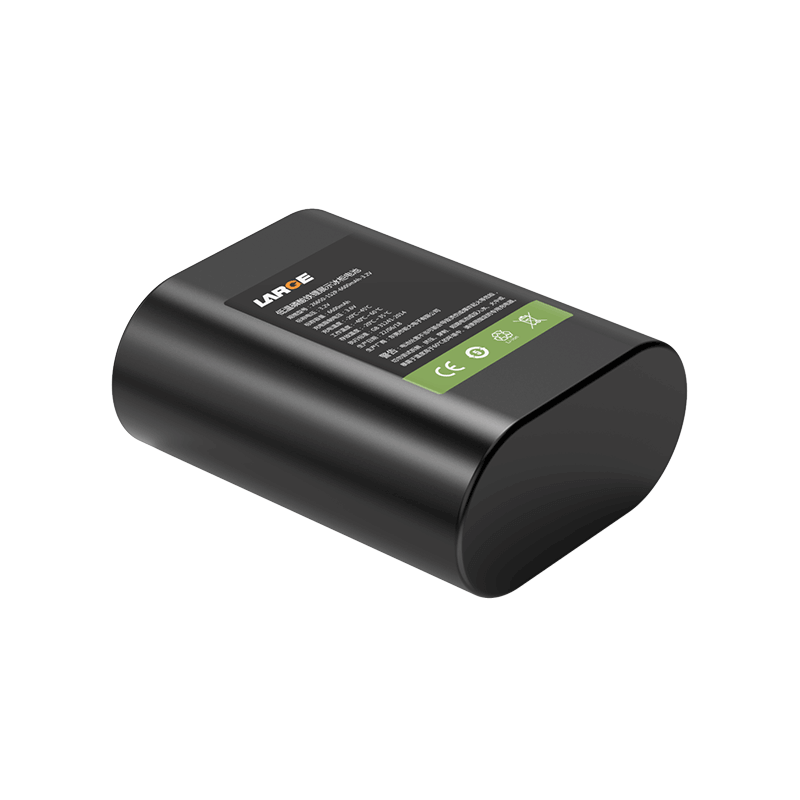

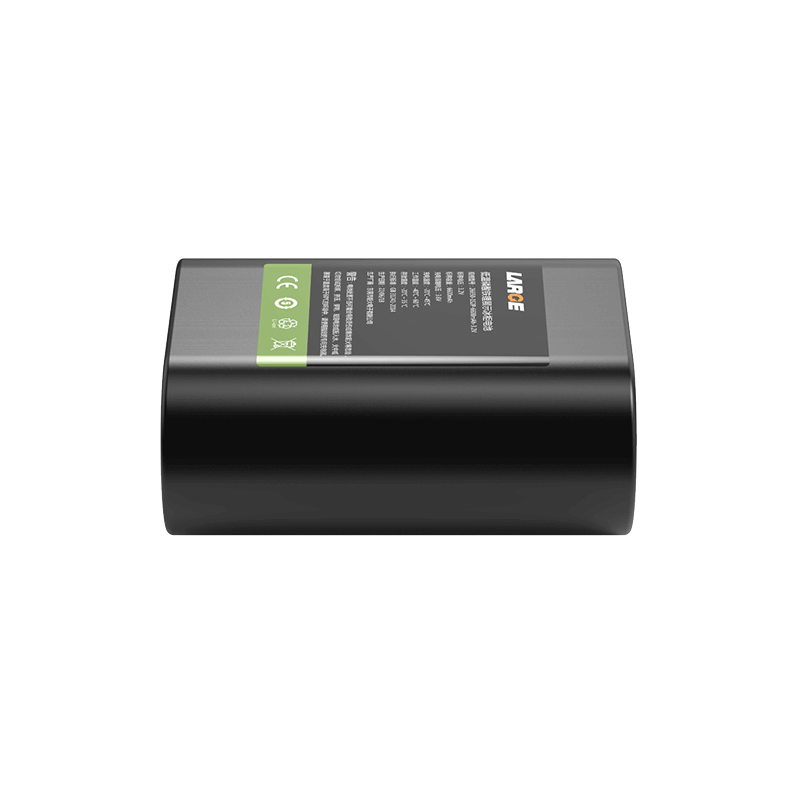

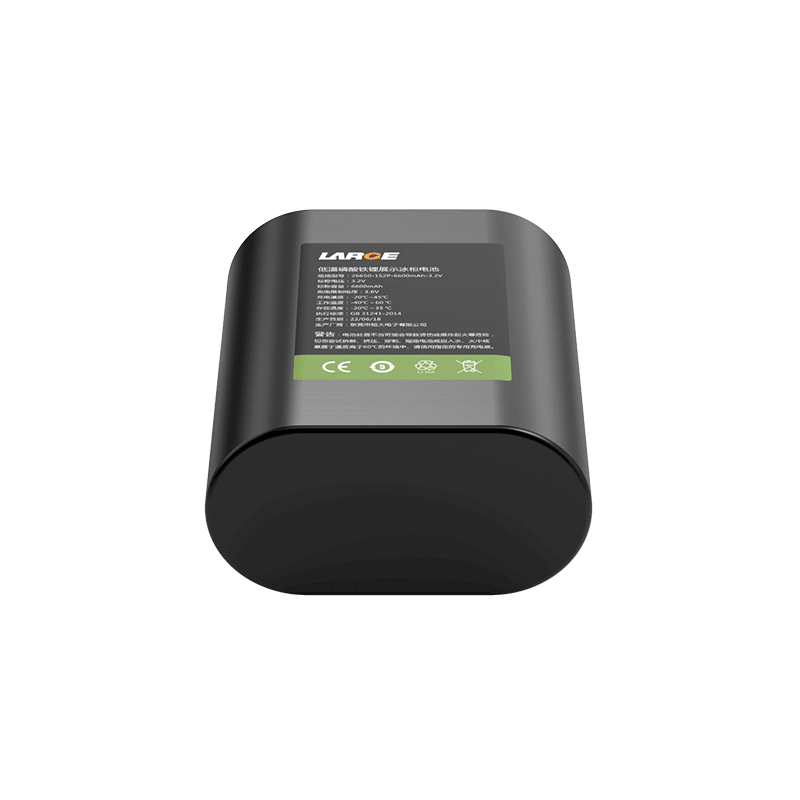

26650 3.2V 6600mAh Low Temperature LiFePO4 Battery for Freezer
Product Number:
06DQ040-07
Nominal voltage:
3.2V
Nominal capacity:
6600mAh
Battery Configuration:
26650-1S2P
Dimension:
68×55×28mm（Max）
Application:
display freezers and cryogenic equipment
Low Temperature Performance, Multiple Protection System, Stable Power Output
Product Overview
This battery is designed for display freezers and cryogenic equipment, supporting continuous operation in low-temperature and high-demand working environments. With stable output and excellent low-temperature discharge performance, it ensures reliable power delivery under extreme cold conditions.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 06DQ040-07 |
| Cell Model | 26650-3300mAh-3.2V |
| Battery Configuration | 26650-1S2P |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 6600mAh |
| Rated Energy | 21.12Wh |
| Charging Voltage | 3.6V |
| Discharge Cut-off Voltage | 2.0V |
| Standard Charging Current | ≤3.2A |
| Standard Discharge Current | ≤3.2A |
| Internal Resistance | ≤120mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | -20～45℃ |
| Discharge Temperature | -40～60℃ |
| Storage temperature | -20～35℃ |
| Dimensions | 68×55×28mm（Max） |
| Weight | 170g |
| Output Type | JST Connector |
| Battery Case | Blue PVC Heat Shrink Wrap |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, ESD Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
