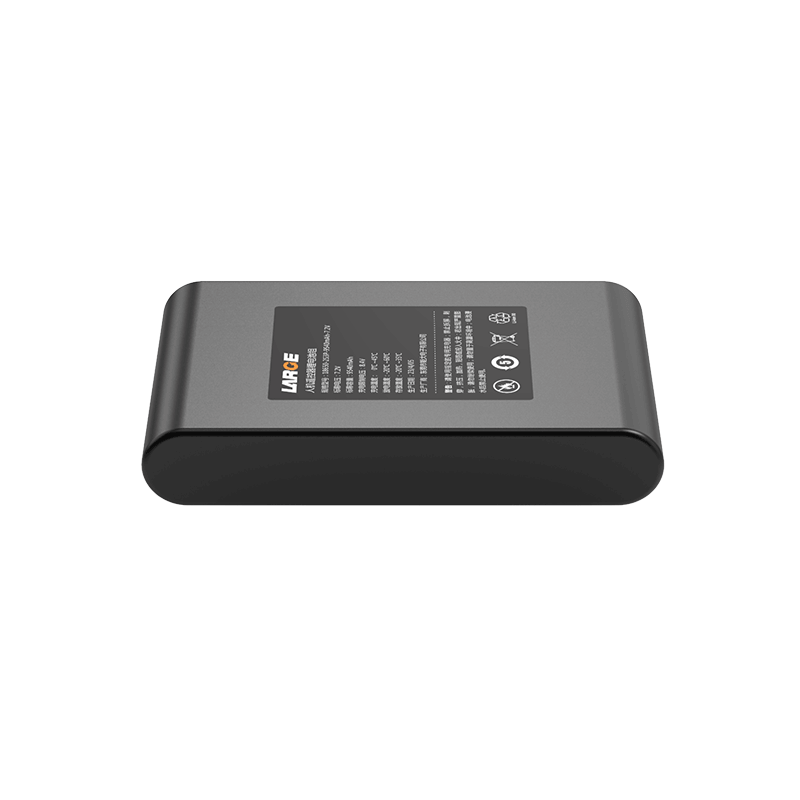

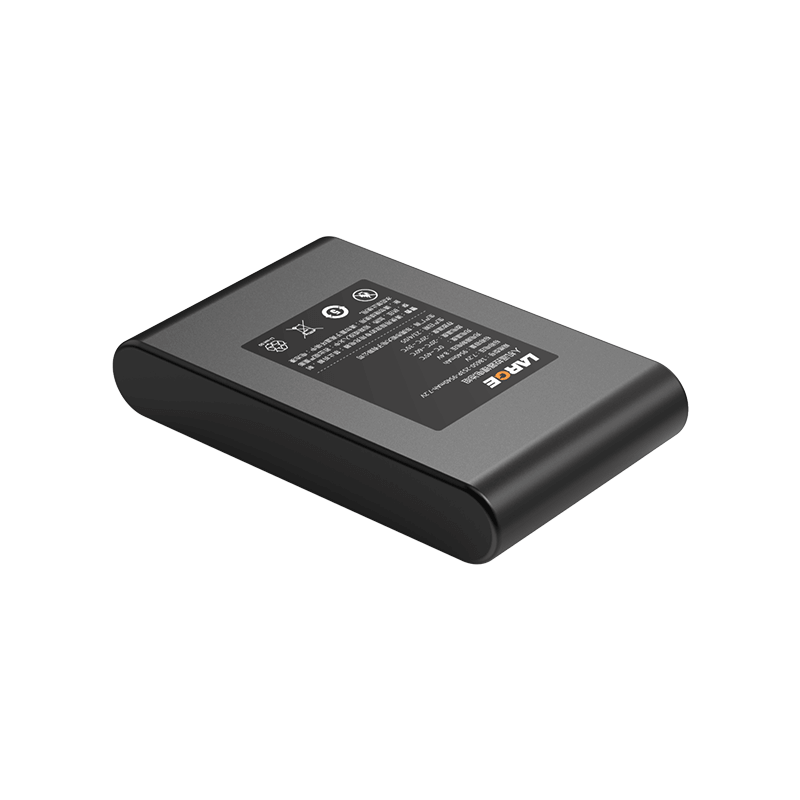

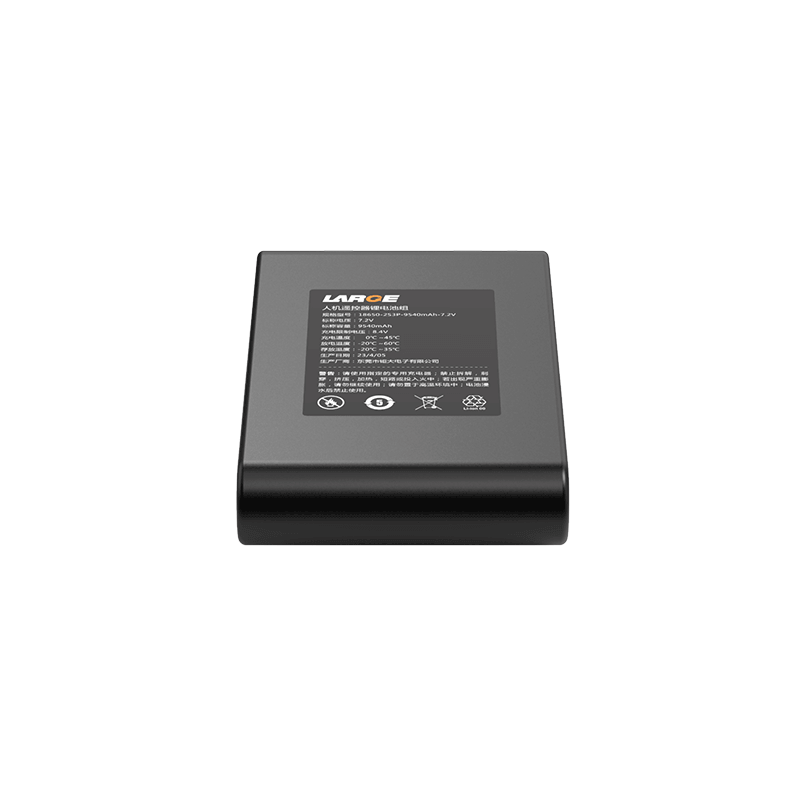

18650 7.2V 9540mAh Lithium-ion Battery Pack
Product Number:
01DQ0023-67
Nominal voltage:
7.2V
Nominal capacity:
9540mAh
Battery Configuration:
18650-2S3P
Dimension:
115*70*22mm
Application:
Drone Remote Control
TI SMBus Communication,MOLEX Connector Output,Multi Protection BMS
Product Overview
This battery is designed for UAV remote controllers, used in drone operation and real-time flight control scenarios. It delivers stable output and compact structure, ensuring reliable long-duration operation with consistent power support for precise control performance.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01DQ0023-67 |
| Cell Model | 18650-3180mAh-3.6V |
| Battery Configuration | 18650-2S3P |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 9540mAh |
| Rated Energy | 68.69Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6.0V |
| Standard Charging Current | ≤4.3A |
| Standard Discharge Current | ≤4.3A |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～35℃ |
| Dimensions | 1157022mm (Max) |
| Weight | 305g |
| Battery Case | Blue PVC heat shrink |
| Output Type | MOLEX connector |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, over-temperature protection, overcurrent protection, ESD protection, TI-SMBus communication management |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
