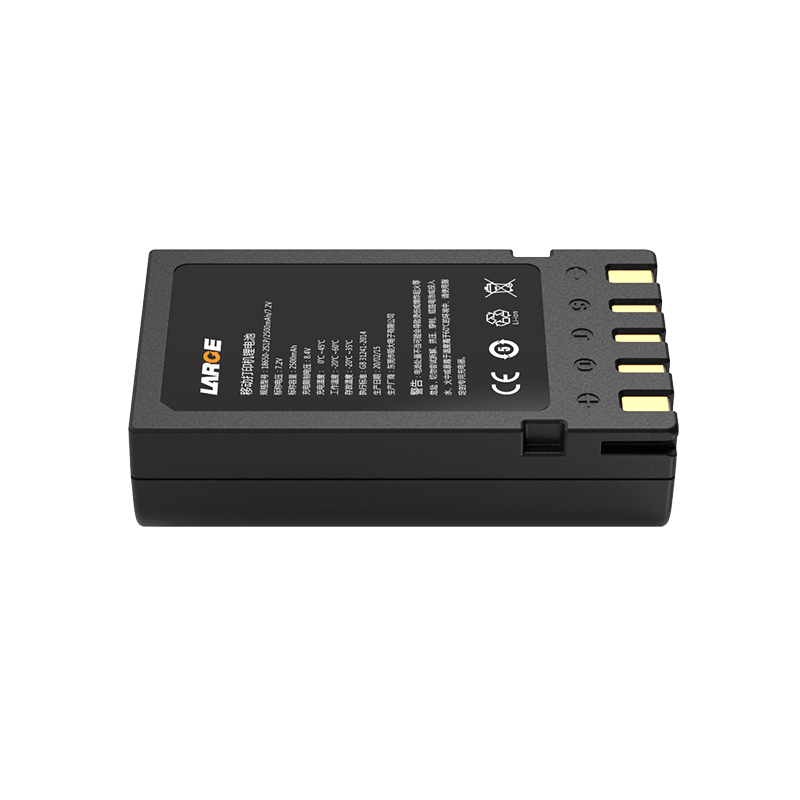

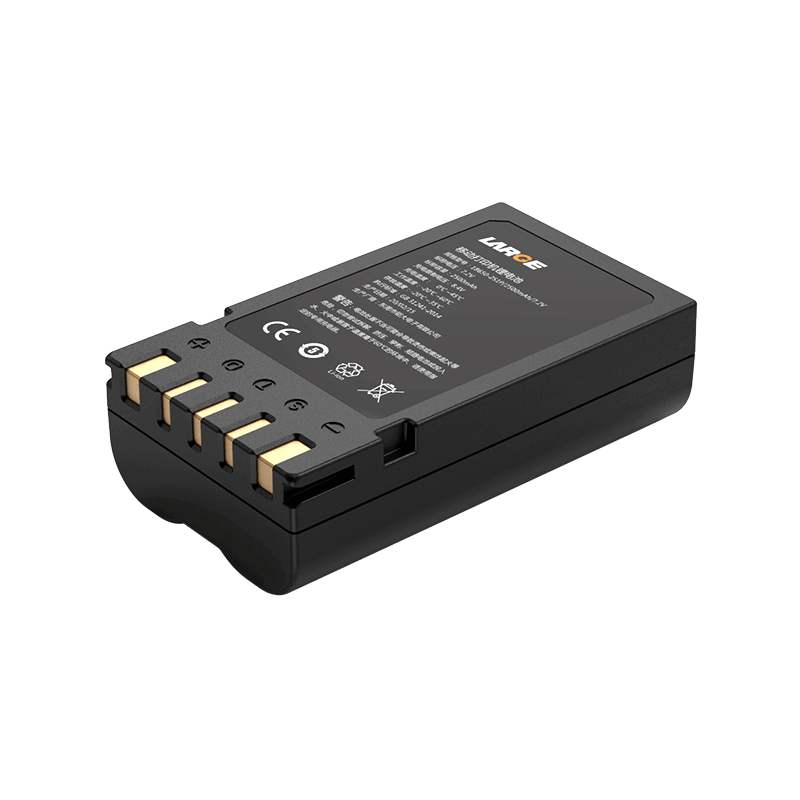

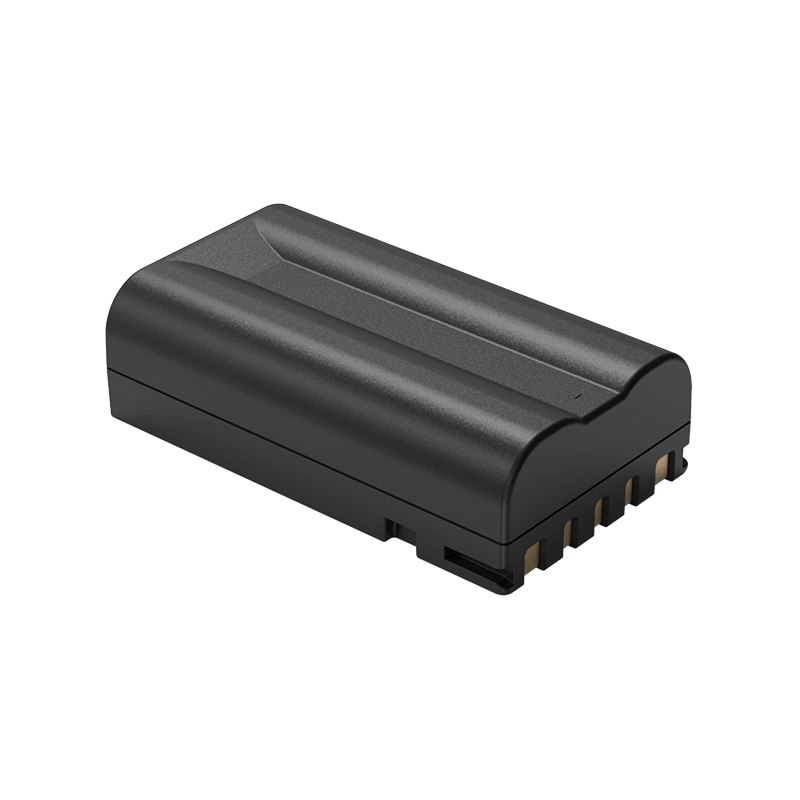

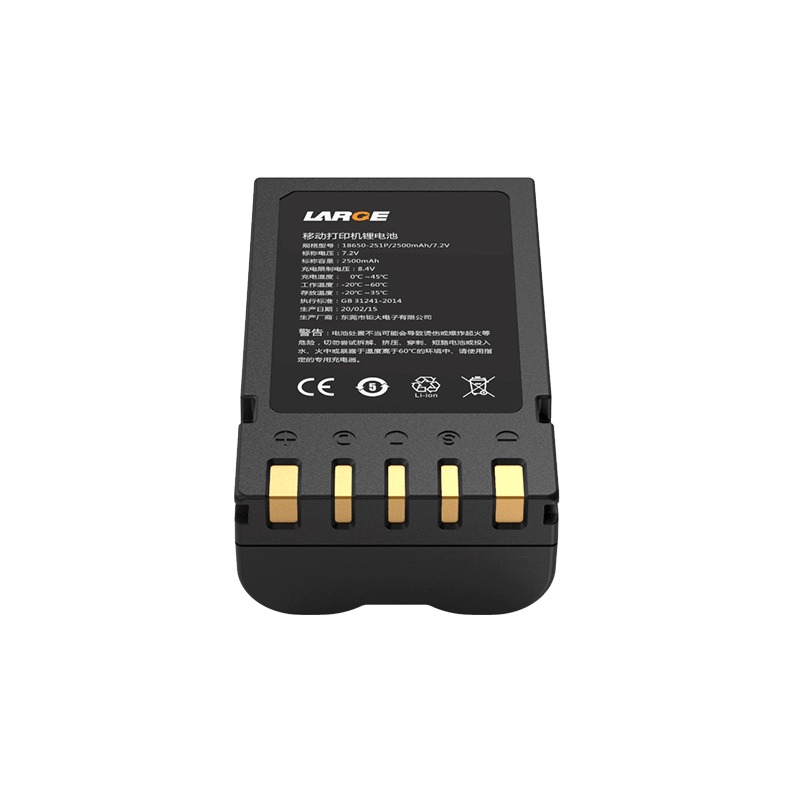

7.4V 2500mAh Lithium-ion Battery for Mobile Printer

7.4V 2500mAh Lithium-ion Battery for Mobile Printer
7.4V 2500mAh Lithium-ion Battery for Mobile Printer
7.4V 2500mAh Lithium-ion Battery for Mobile Printer
7.4V 2500mAh Lithium-ion Battery for Mobile Printer

Product Detail

Product number: 03DQ0024-08T

Cell model: 18650/2500mah /3.6V

Specification: 18650-2S1P/2500mAh/7.2V

Nominal voltage: 7.2V

Nominal capacity: 2500mAh

Charging voltage: 8.4V

Charging current: ≤ 2.5A

Discharge current: 500MA

Instantaneous discharge current: 7A

Discharge cut-off voltage: 5.0V

Finished product internal resistance: ≤80mΩ

Battery weight: 105g

Product size: 19.1+0/-0.2mm*41±0.2mm*71.5±0.2mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: engineering plastic ABS+PC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: POS machine mobile printer


Product Features

1.ABS+PC shell increases battery reliability and firmness.

2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

3.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
