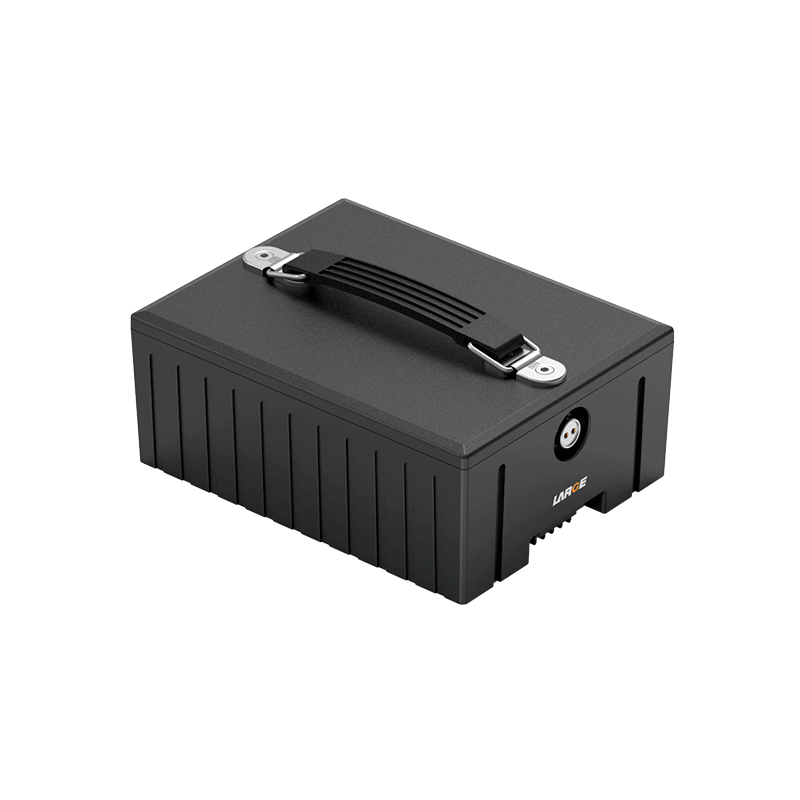

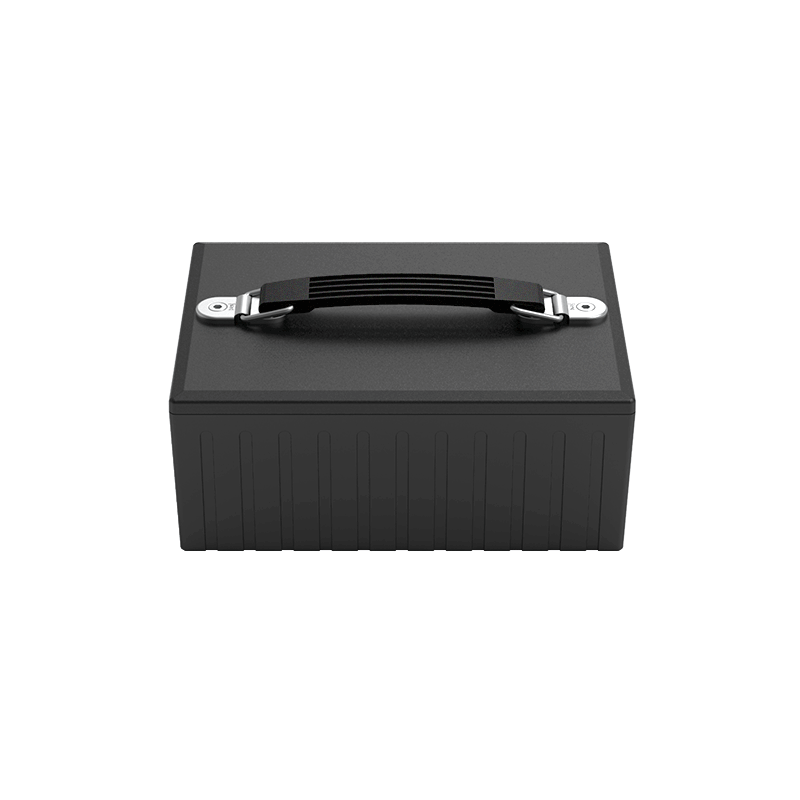

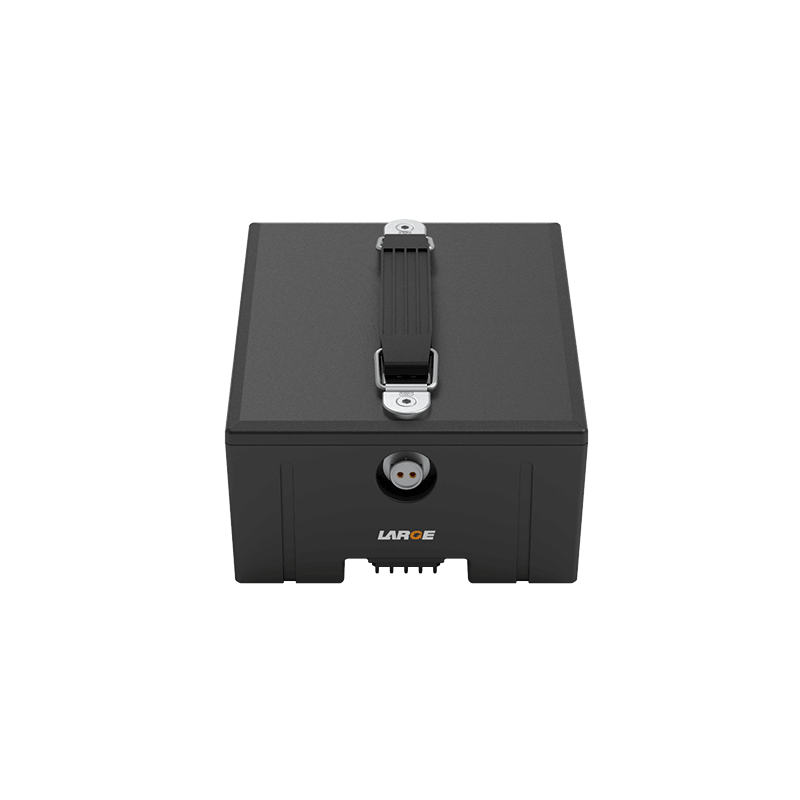

18650 Low Temperature Lithium-ion Battery Pack 14.4V 40.2Ah
Product Number:
36AQ508-01
Nominal voltage:
14.4V
Nominal capacity:
40.2Ah
Battery Configuration:
18650-4S12P
Dimension:
190 × 145 × 76 mm
Application:
industrial equipment
SMBUS Communication Support, High Capacity Design, Multi Protection System
Product Overview
This high-capacity battery is designed for industrial equipment, supporting continuous operation and high-load working environments. Featuring stable power output, SMBUS communication, and reliable low-temperature performance, it ensures long-lasting operation in demanding applications.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 36AQ508-01 |
| Cell Model | 18650-3350mAh-3.6V |
| Battery Configuration | 18650-4S12P |
| Nominal Voltage | 14.4V |
| Nominal Capacity | 40.2Ah |
| Rated Energy | 578.88Wh |
| Charging Voltage | 16.8V |
| Discharge Cut-off Voltage | 10V |
| Standard Charging Current | 10A |
| Standard Discharge Current | 10A |
| Internal Resistance | ≤180mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0°C ~ +60°C |
| Discharge Temperature | -40°C ~ +60°C |
| Storage temperature | -20~+45°C (Less Than 1 Month); -20~+35°C (Less Than 3 Months); -20~+25°C (Less Than 6 Months) |
| Dimensions | 190 × 145 × 76 mm |
| Weight | 3kg |
| Battery Case | Plastic Housing |
| Communication Protocol | SMBUS |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Overtemperature Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
