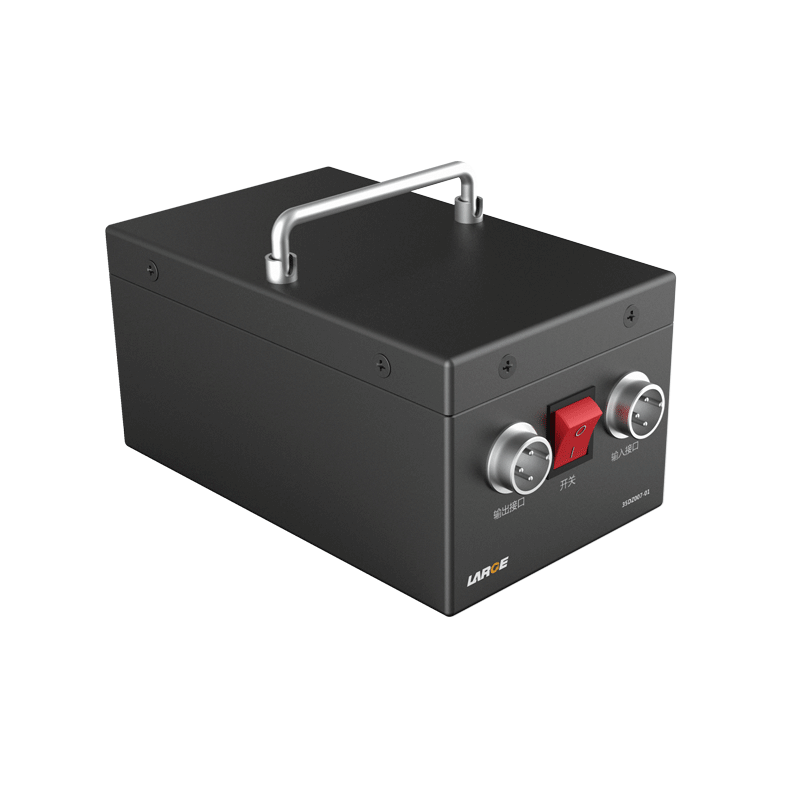

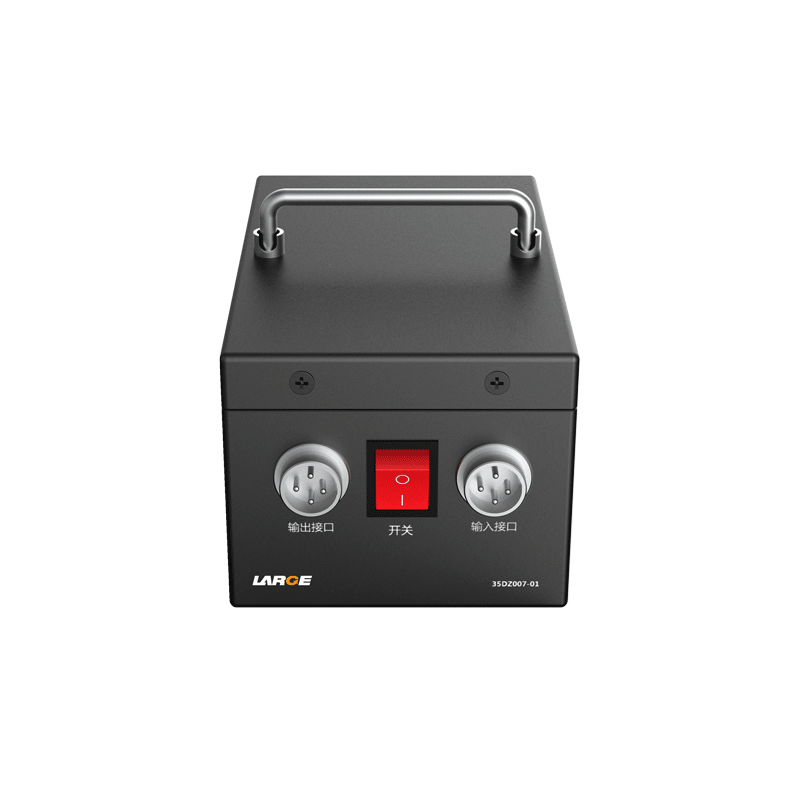

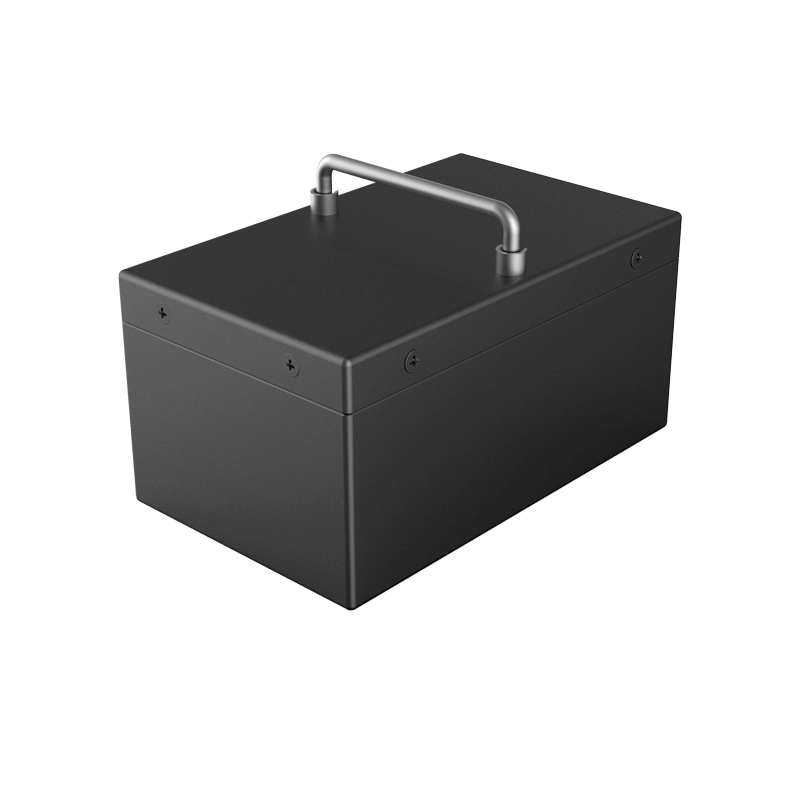

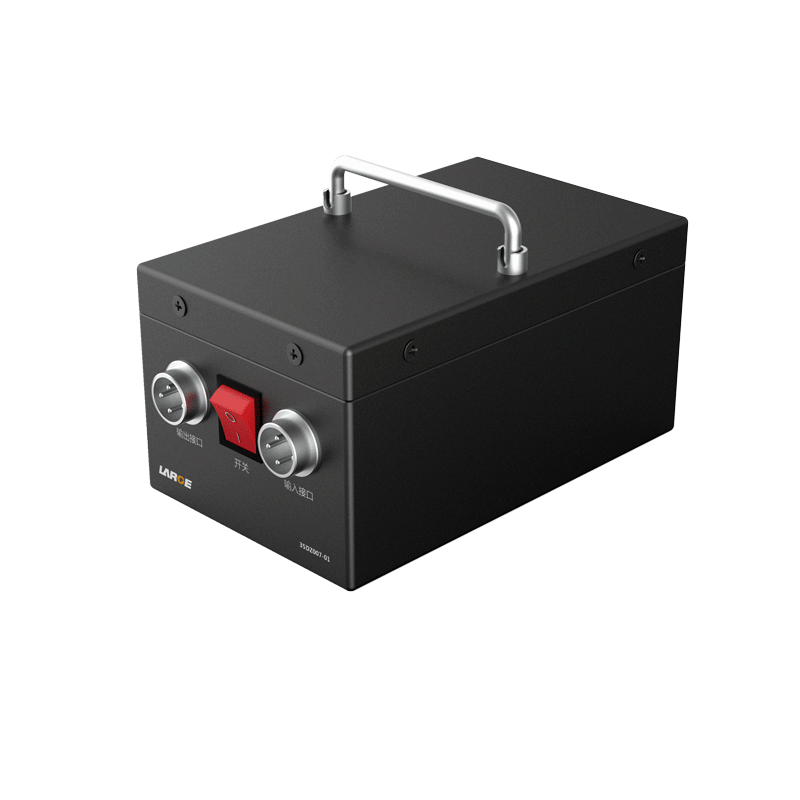

25.9V 10Ah 18650 Low Temperature Lithium Power Battery for Field Rover

Product number: 35DZ007-01

Cell model：18650/3.6V/2.2Ah (low temperature)

Battery specification: 18650-7S5P/25.9V/10Ah

Nominal voltage：25.9V

Nominal capacity：10Ah

Charging voltage: 29.4V

Charging current: ≤5A

Discharging current: ≤10A

Instant discharging current: 35A

End-off voltage: 17.5V

Internal resistance: ≤180mΩ

Battery weight: 3000g

Product dimension: 190*120*90mm（Max）

Charging temperature：0～45℃

Discharging temperature: -40～55 ℃

Storage temperature: -40～45 ℃

Temperature protection: 65℃±5℃

Battery case: metal plate

Battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: power battery of field vehicle

Product features

1. Small self-discharging current;

2. Discharge at low temperature;

3. Low voltage switch;

4. Have temperature protection;

5. The battery has good security and long cycle life;

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
