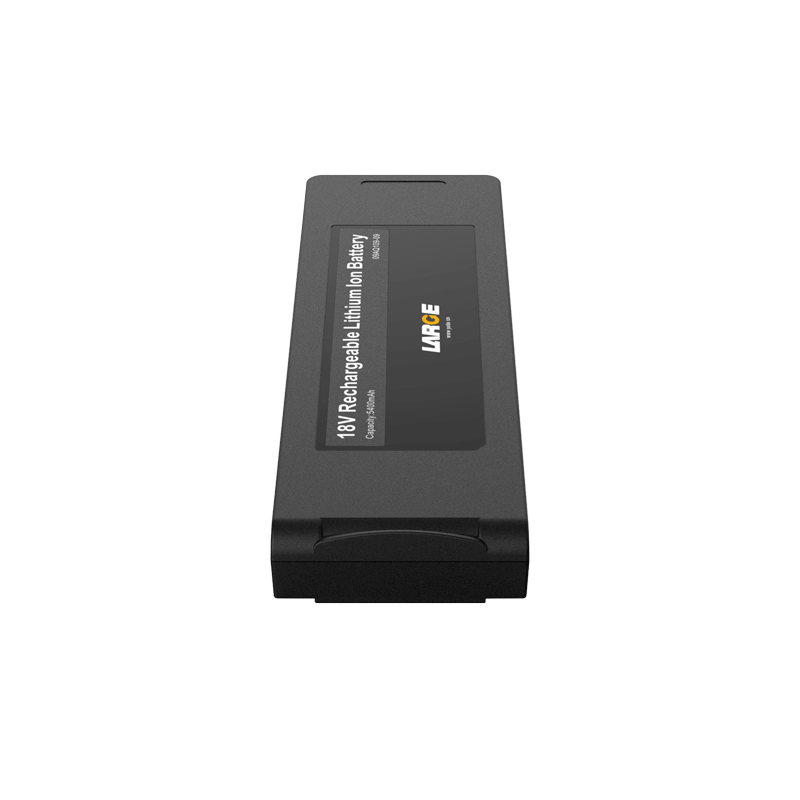

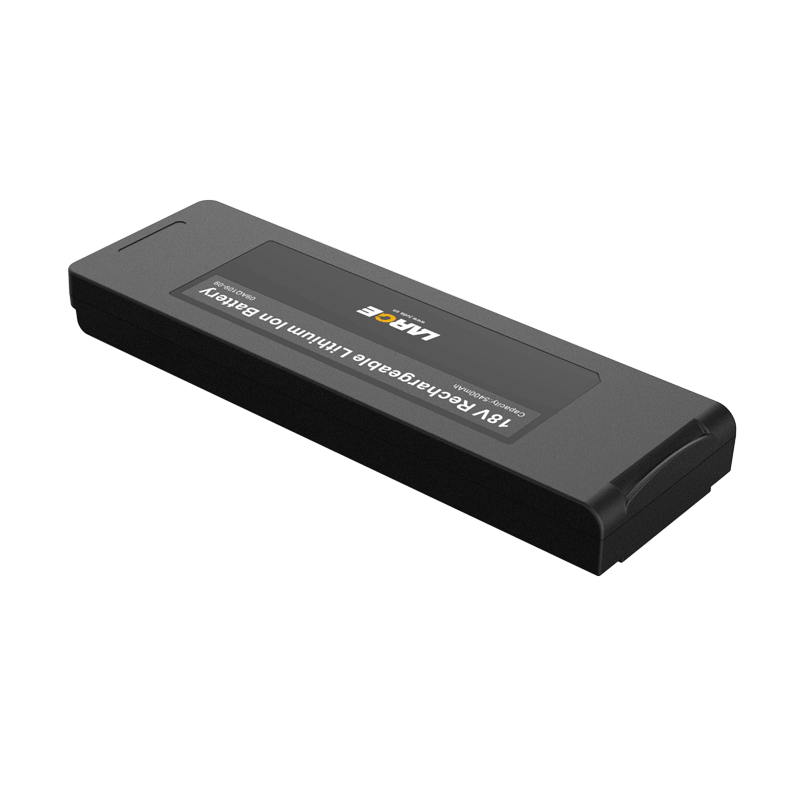

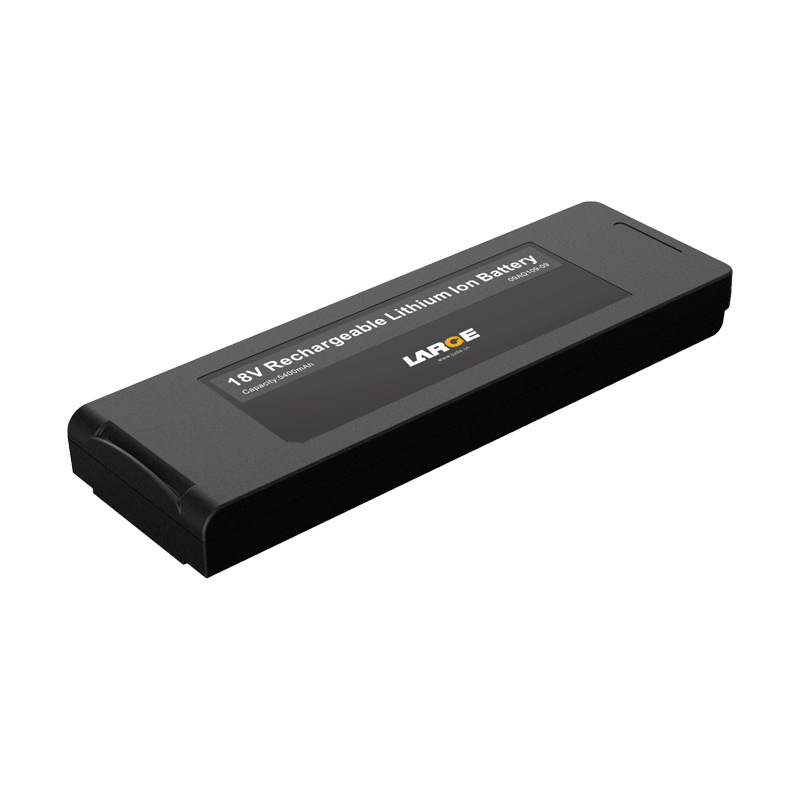

18650 18V 5400mAh Panasonic Lithium Battery Pack For Medical B Supersonic Diagnostic Set With SMBUS Communication Protocol
Product Number:
09AQ109-09
Nominal voltage:
18.0V
Nominal capacity:
5400mAh
Battery Configuration:
NCR1865PF-5S2P
Dimension:
235.3 × 75.3 × 24.3 mm (Max)
Application:
medical equipment
SMBus Communication Support, ABS+PC Protective Housing, Long Cycle Life
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 09AQ109-09 |
| Cell Model | NCR1865PF/2900mAh/3.6V |
| Battery Configuration | NCR1865PF-5S2P |
| Nominal Voltage | 18.0V |
| Nominal Capacity | 5400mAh |
| Rated Energy | 97.2Wh |
| Charging Voltage | 21.0V |
| Discharge Cut-off Voltage | 12.0V |
| Standard Charging Current | 1080mA |
| Standard Discharge Current | 1080mA |
| Max Continuous discharge current | 2000mA |
| Internal Resistance | ≤300mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 10～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～50℃ (Less Than A Month) |
| Dimensions | 235.3 × 75.3 × 24.3 mm (Max) |
| Weight | 600g |
| Battery Case | ABS+PC |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
