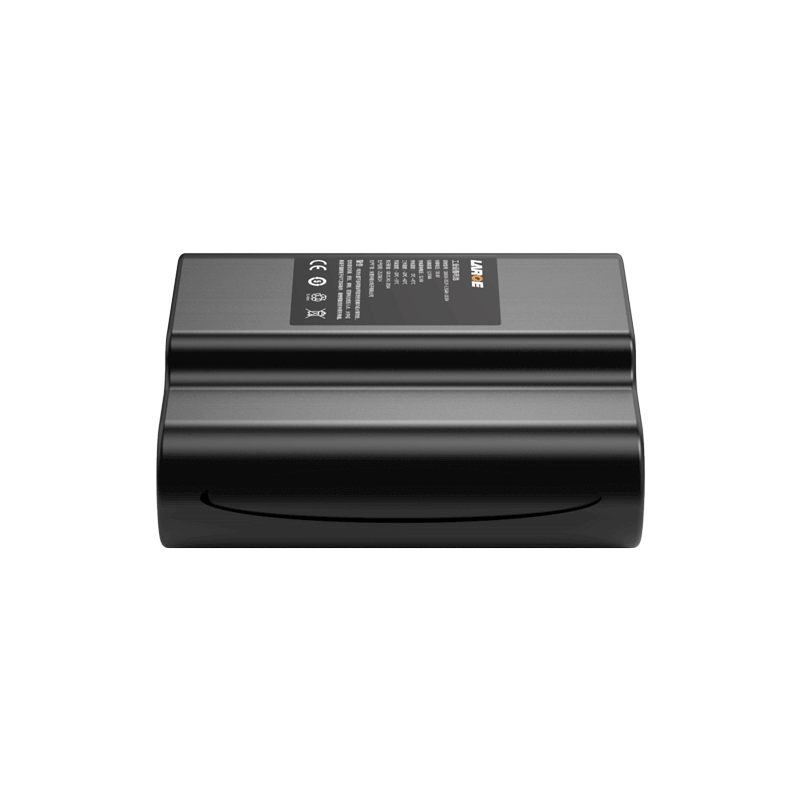

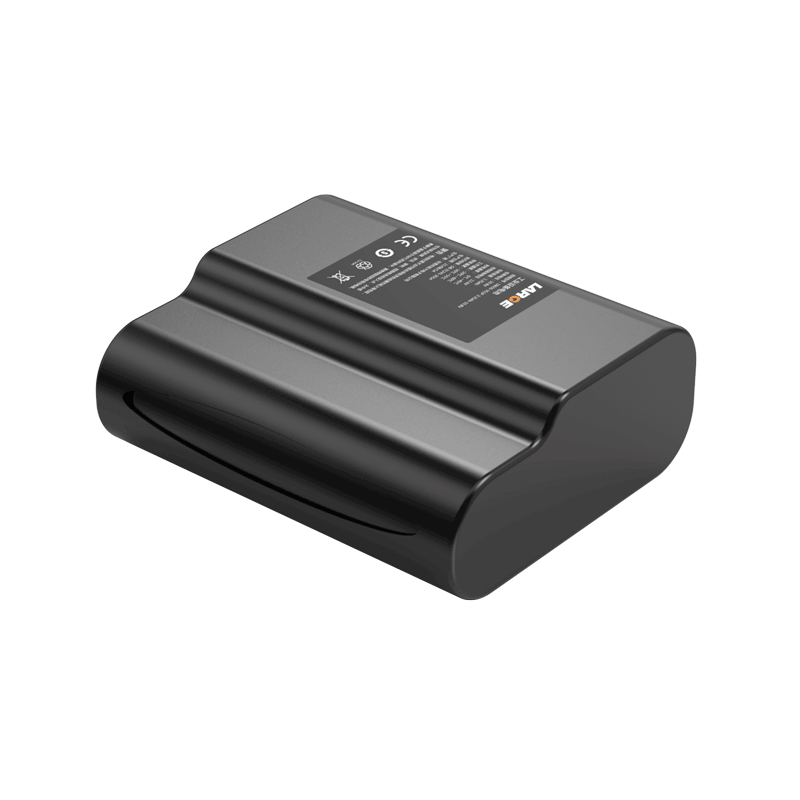

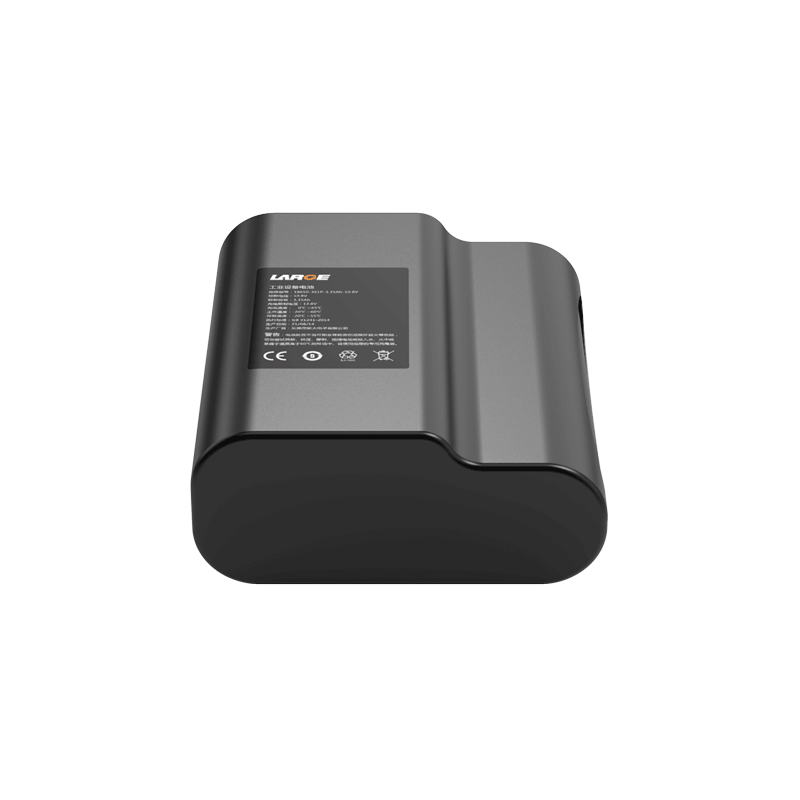

18650 3.6V 3350mAh Lithium ion Battery Pack
Product Number:
01WQ0087-03
Nominal voltage:
10.8V
Nominal capacity:
3.35Ah
Battery Configuration:
18650-3S1P
Dimension:
67*57*24mm
Application:
Portable Massager
PVC Housing,Multi Protection Circuit,Wide Temp Operation
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01WQ0087-03 |
| Cell Model | 18650/3350mAh/3.6V |
| Battery Configuration | 3S1P |
| Nominal Voltage | 10.8V |
| Nominal Capacity | 3.35Ah |
| Rated Energy | 36.18Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 8.4V |
| Standard Charging Current | ≤1.675A |
| Standard Discharge Current | ≤3.35A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～55℃ (＜1 month), -20～45℃ (＜3 months), -20～25℃ (＜12 months) |
| Dimensions | 675724mm (Max) |
| Weight | 200g |
| Battery Case | PVC |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
