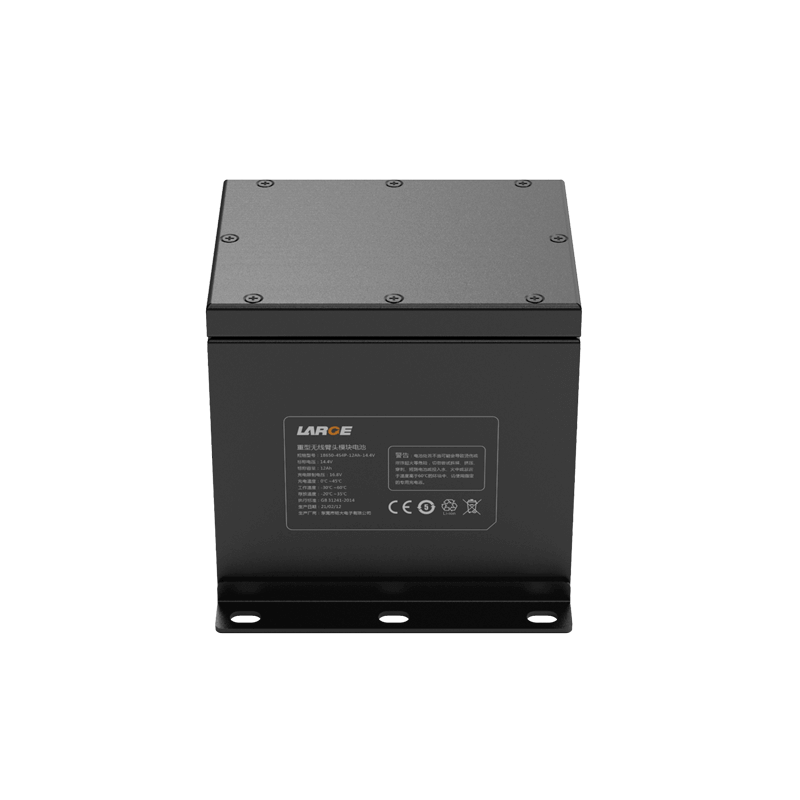

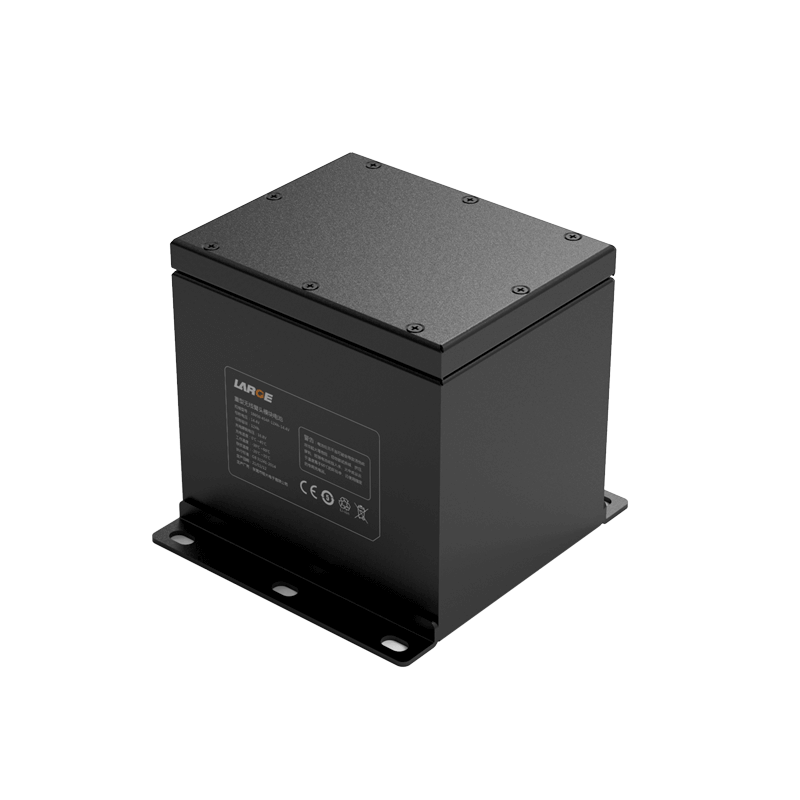

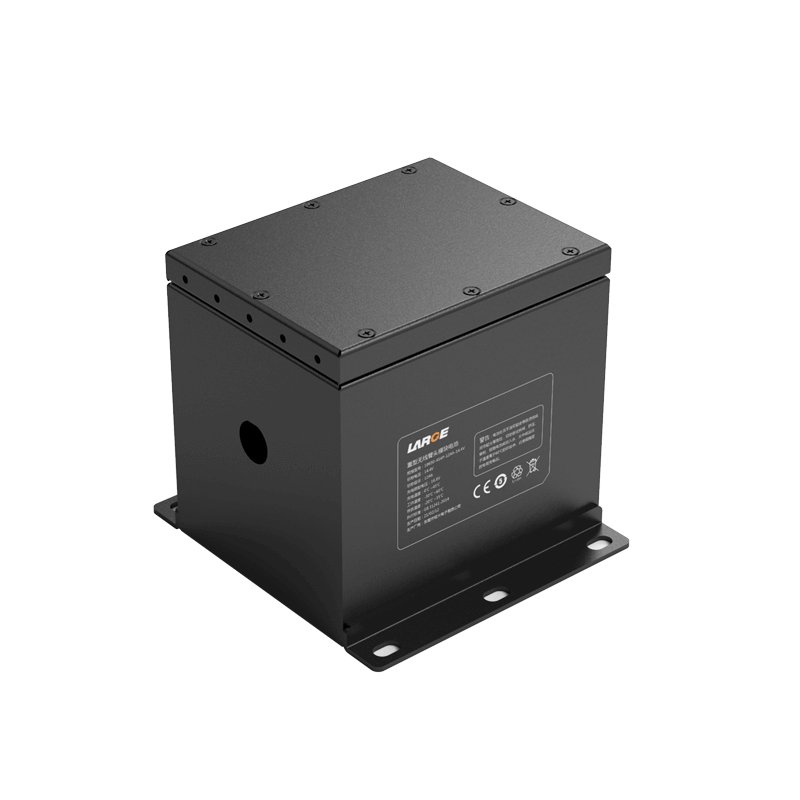

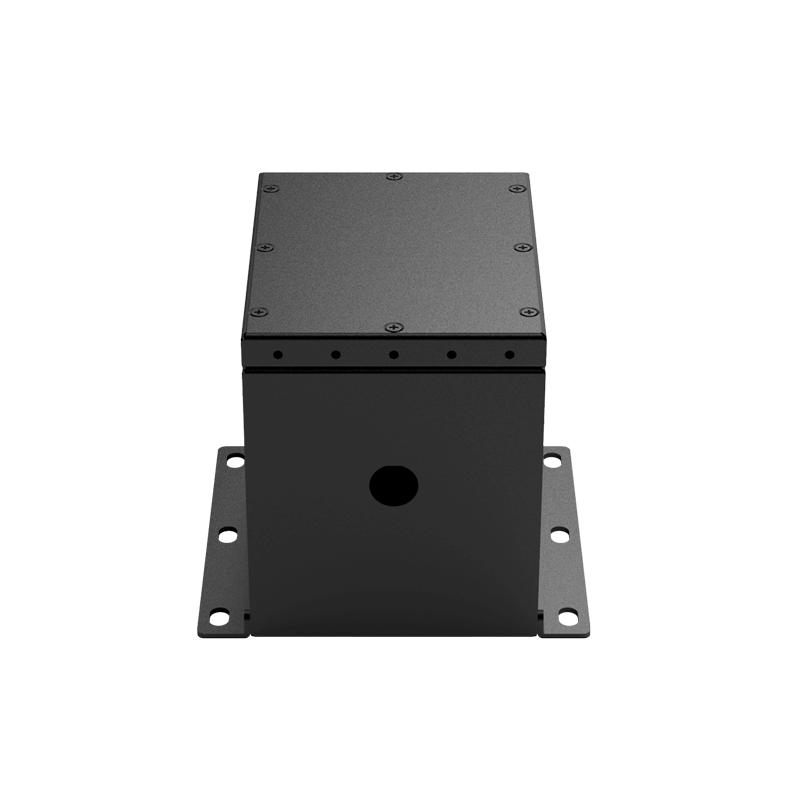

18650 12Ah 14.4V Samsung Battery for Heavy Wireless Arm Module
Product Number:
36AQ363-04
Nominal voltage:
14.4V
Nominal capacity:
12Ah
Battery Configuration:
18650-4S4P
Dimension:
131 × 120 × 115mm (Max)
Application:
heavy wireless arm and lifting equipment
RS485 Communication Support, Aluminum Alloy Case, Multiple Protection Functions
Product Overview
This battery is designed for heavy wireless arm and lifting equipment, supporting continuous operation in high-load industrial applications. With stable output, RS485 communication, and an aluminum alloy case, it delivers reliable power and enhanced operational safety in demanding environments.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 36AQ363-04 |
| Cell Model | 18650-3000MAH-3.6V |
| Battery Configuration | 18650-4S4P |
| Nominal Voltage | 14.4V |
| Nominal Capacity | 12Ah |
| Rated Energy | 172.8Wh |
| Charging Voltage | 16.8V |
| Discharge Cut-off Voltage | 11.0V |
| Standard Charging Current | ≤5.6A |
| Standard Discharge Current | ≤5.6A |
| Internal Resistance | ≤180mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -30 ~ 65℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 131 × 120 × 115mm (Max) |
| Weight | 1000g |
| Battery Case | Aluminum Alloy Case |
| Communication Protocol | RS485 |
| Protection System | Short Circuit Protection, Over Charge Protection, Over Discharge Protection, Over Temperature Protection, Over Current Protection, ESD Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
