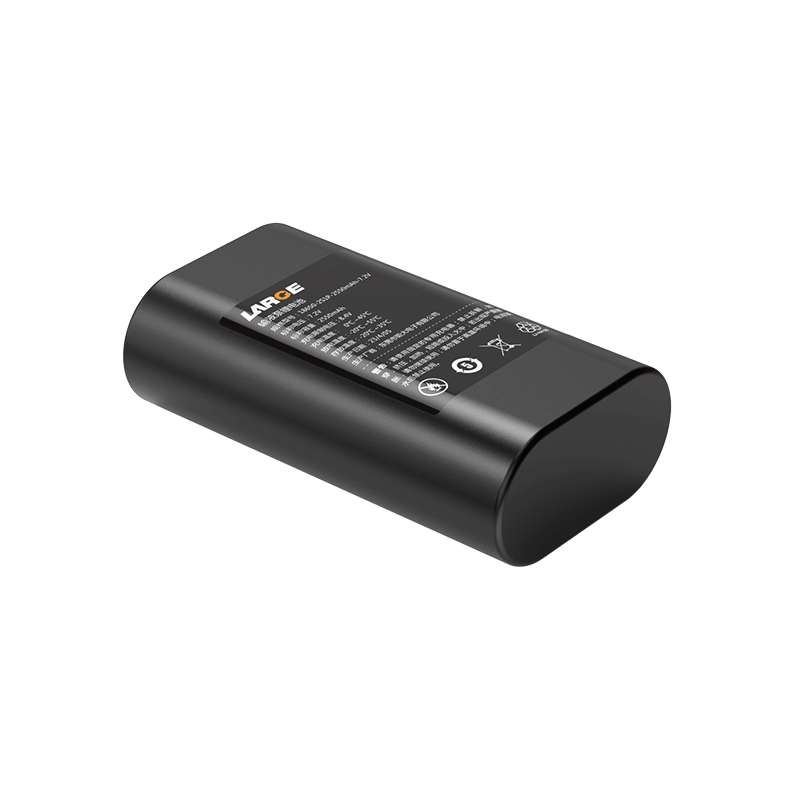

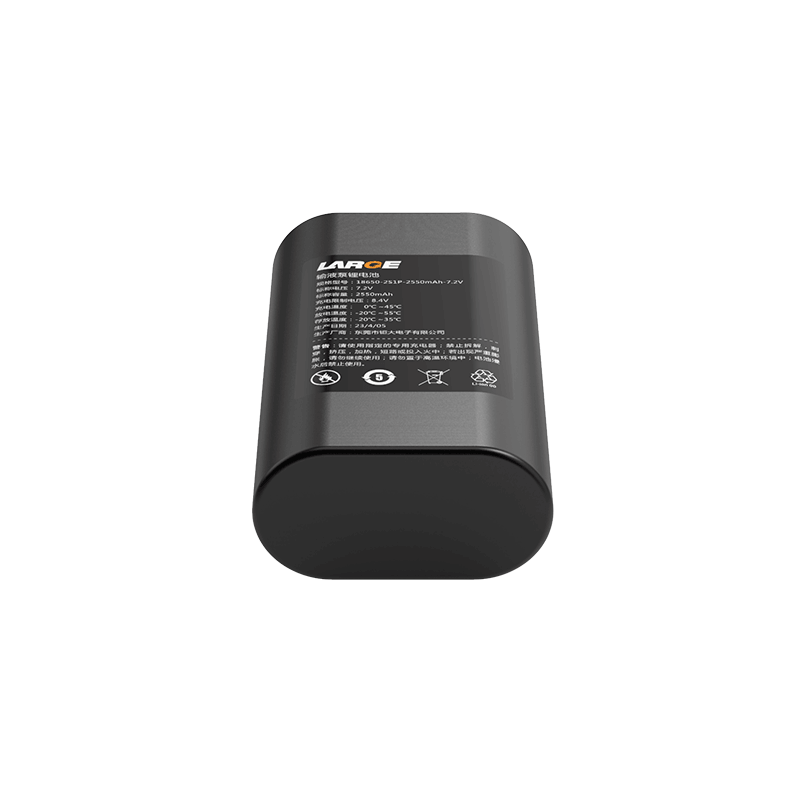

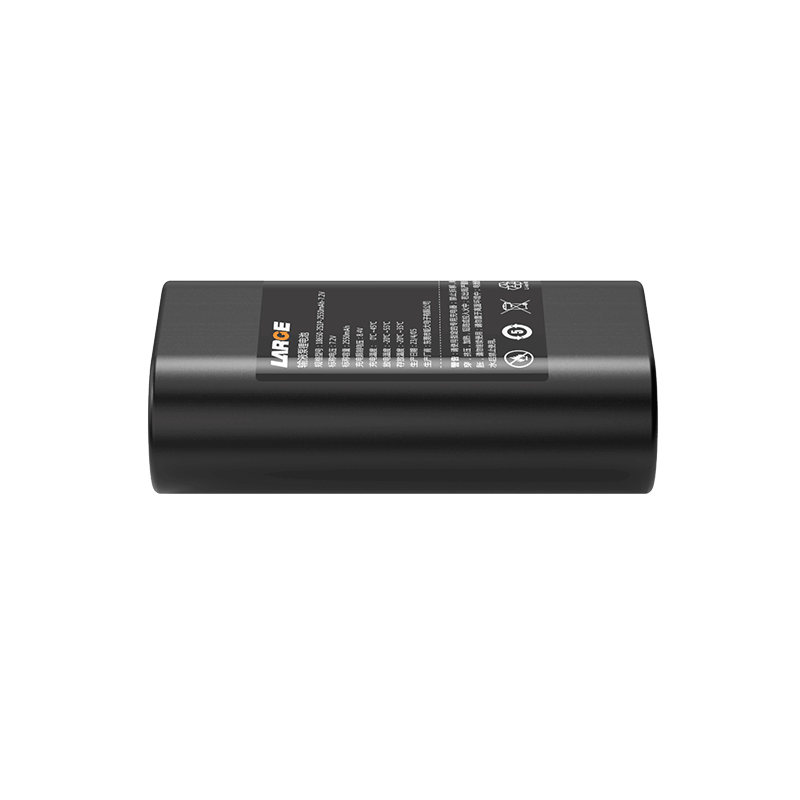

18650 7.3V 2600mAh Infusion Pump Lithium-ion Battery Pack
Product Number:
01DQ0139-01
Nominal voltage:
7.3V
Nominal capacity:
2600mAh
Battery Configuration:
18650-2S1P
Dimension:
68×38×22mm（Max）
Application:
infusion pumps and portable medical devices
Multiple Protection System, Shock Resistant Design, Stable Power Output
Product Overview
This battery is designed for infusion pumps and portable medical devices, supporting continuous operation in mobile healthcare and high-frequency usage scenarios. With stable output, reliable protection functions, and a compact structure, it ensures safe and long-lasting power performance.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01DQ0139-01 |
| Cell Model | 18650-2600mAh-3.65V |
| Battery Configuration | 18650-2S1P |
| Nominal Voltage | 7.3V |
| Nominal Capacity | 2600mAh |
| Rated Energy | 18.98Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 5.6V |
| Standard Charging Current | ≤1.3A |
| Standard Discharge Current | ≤1.3A |
| Internal Resistance | ≤230mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～35℃ |
| Dimensions | 68×38×22mm（Max） |
| Weight | 100g |
| Output Type | JST Connector |
| Battery Case | Blue PVC Heat Shrink Wrap |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, ESD Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
