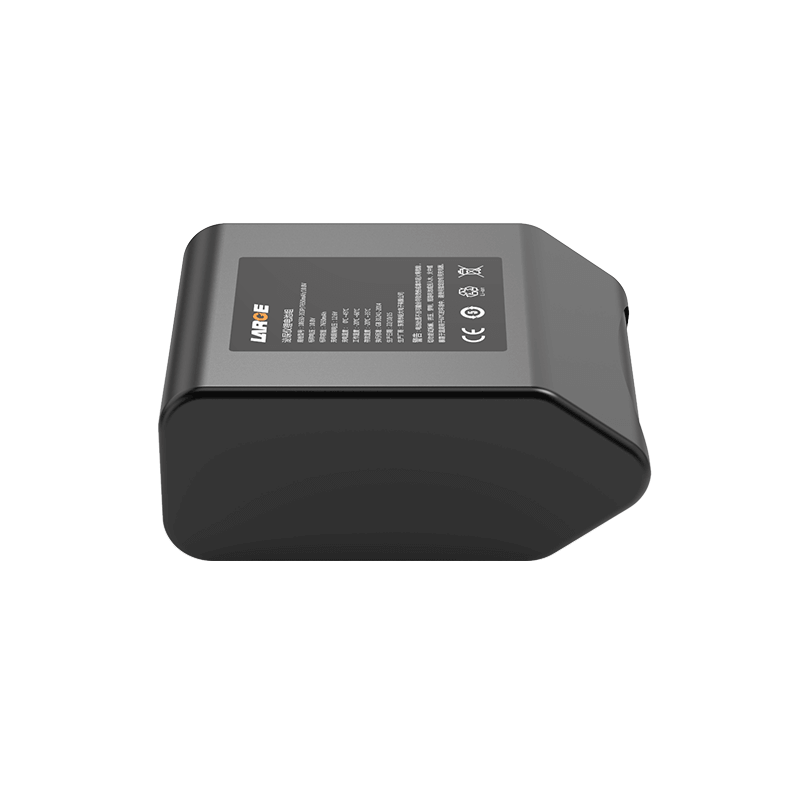

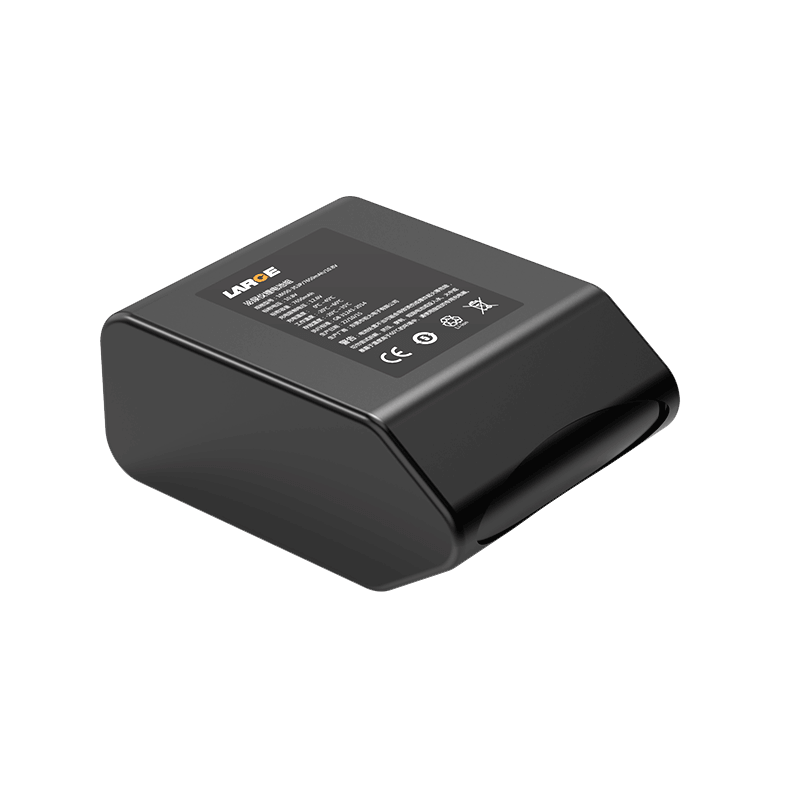

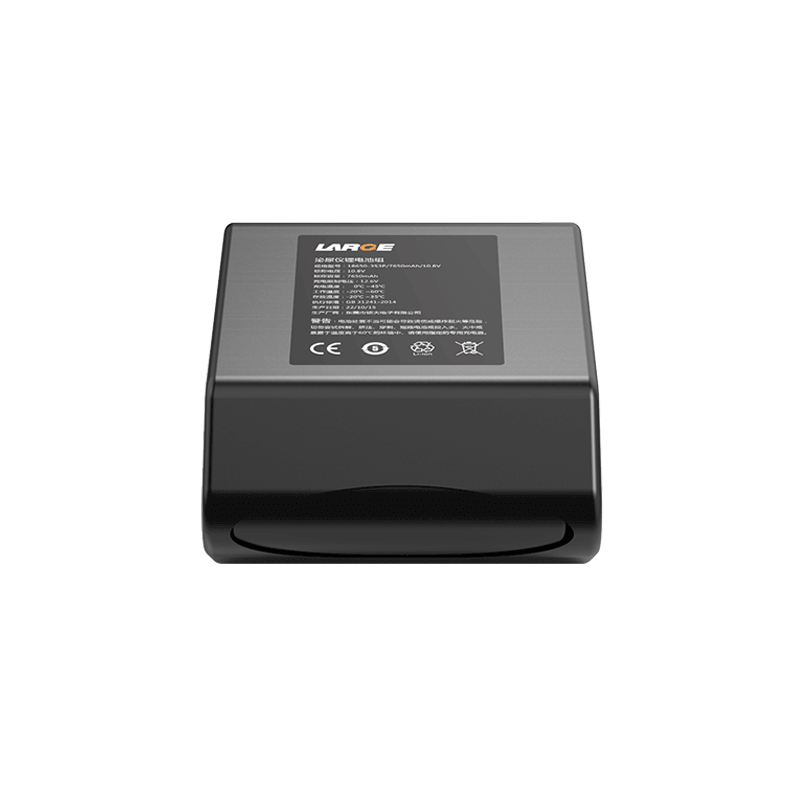

18650 10.8V 7800mAh Lithium-iob Battery Pack for Uroscope
Product Number:
05DQ0066-02
Nominal voltage:
10.8V
Nominal capacity:
7650mAh
Battery Configuration:
18650-3S3P
Dimension:
38×91.5×70mm
Application:
ureteroscope equipment
High Capacity Design, Stable Power Output, Multiple Protection System
Product Overview
This battery is designed for ureteroscope equipment, supporting continuous operation in portable medical and high-precision diagnostic scenarios. With stable power output and high-capacity performance, it ensures reliable and long-lasting operation during clinical use.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 05DQ0066-02 |
| Cell Model | H18650CQ/2550mAh/3.6V |
| Battery Configuration | 18650-3S3P |
| Nominal Voltage | 10.8V |
| Nominal Capacity | 7650mAh |
| Rated Energy | 82.62Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 7.5V |
| Standard Charging Current | ≤3.825A |
| Standard Discharge Current | 6.0A |
| Max Continuous discharge current | 8.0A |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～35℃ |
| Dimensions | 38×91.5×70mm |
| Weight | 480g |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
