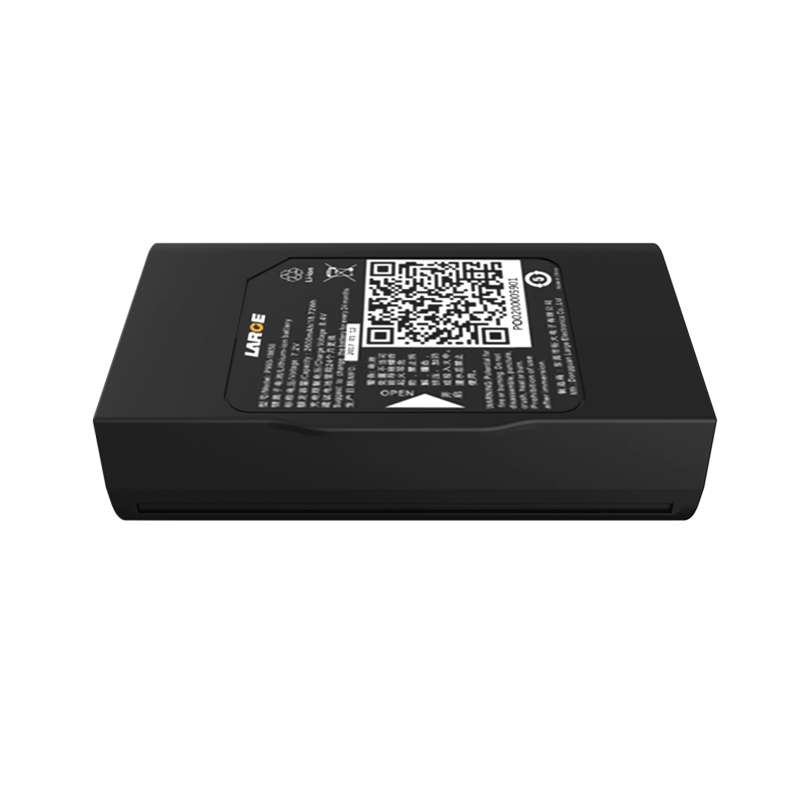

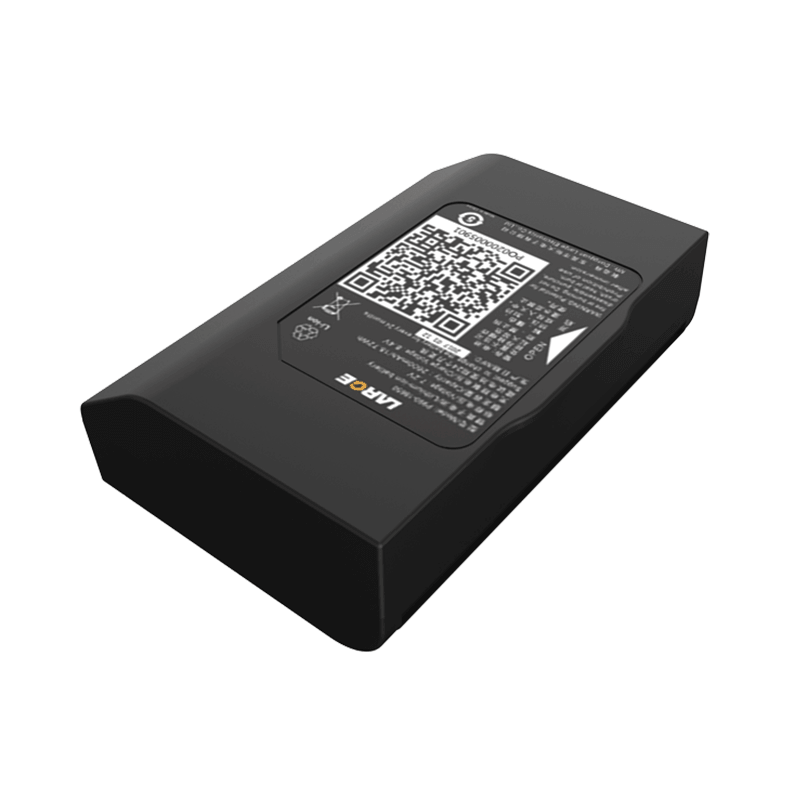

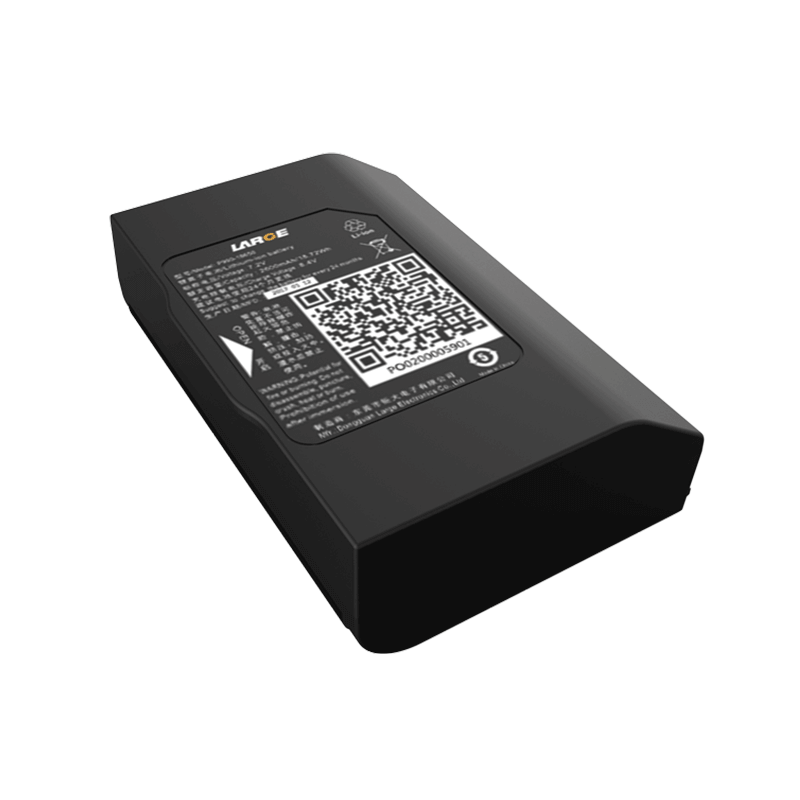

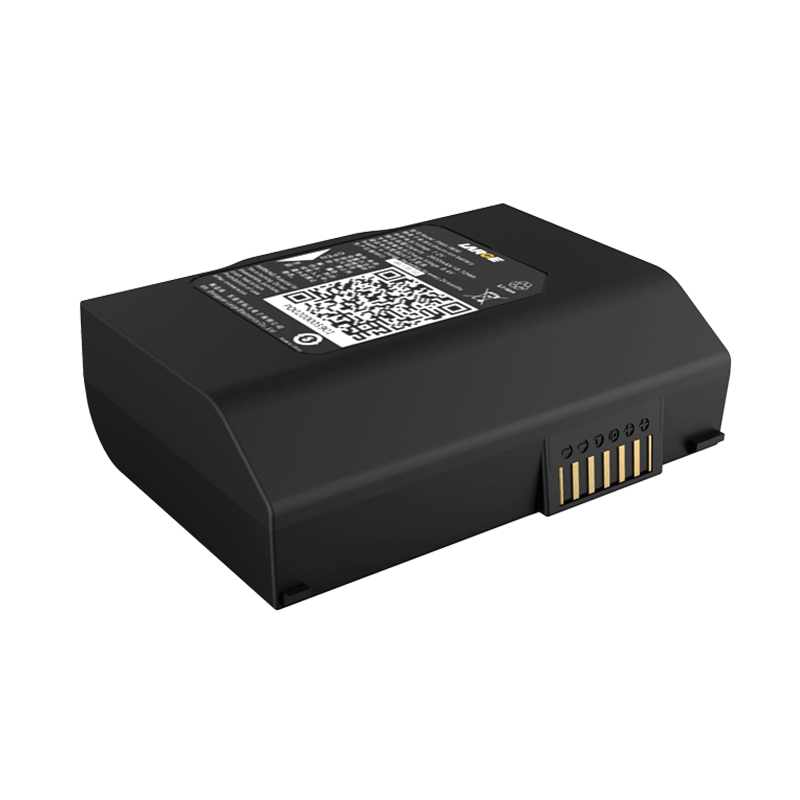

7.2V 2600mAh 18650 Lithium Ion Battery LG Battery for POS Machine
Product Number:
11AQ021-19T
Nominal voltage:
7.2V
Nominal capacity:
2600mAh
Battery Configuration:
18650-2S1P
Dimension:
68.38 × 46.5 × 20.8 mm
Application:
POS terminals
Stable Power Output, Plastic Frame Design, Multi Protection System
Product Overview
This battery is designed for POS terminals, supporting mobile payment and receipt printing in high-frequency usage scenarios. With stable power output and a compact plastic-frame structure, it ensures reliable long-duration operation.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 11AQ021-19T |
| Cell Model | 18650/2600mAh/3.6V |
| Battery Configuration | 18650-2S1P |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 2600mAh |
| Rated Energy | 18.72Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6.0V |
| Standard Charging Current | ≤2500mA |
| Standard Discharge Current | ≤5000mA |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～35℃ |
| Dimensions | 68.38 × 46.5 × 20.8 mm |
| Weight | Approx. 114g |
| Battery Case | Plastic Frame |
| Protection System | Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Short Circuit Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
