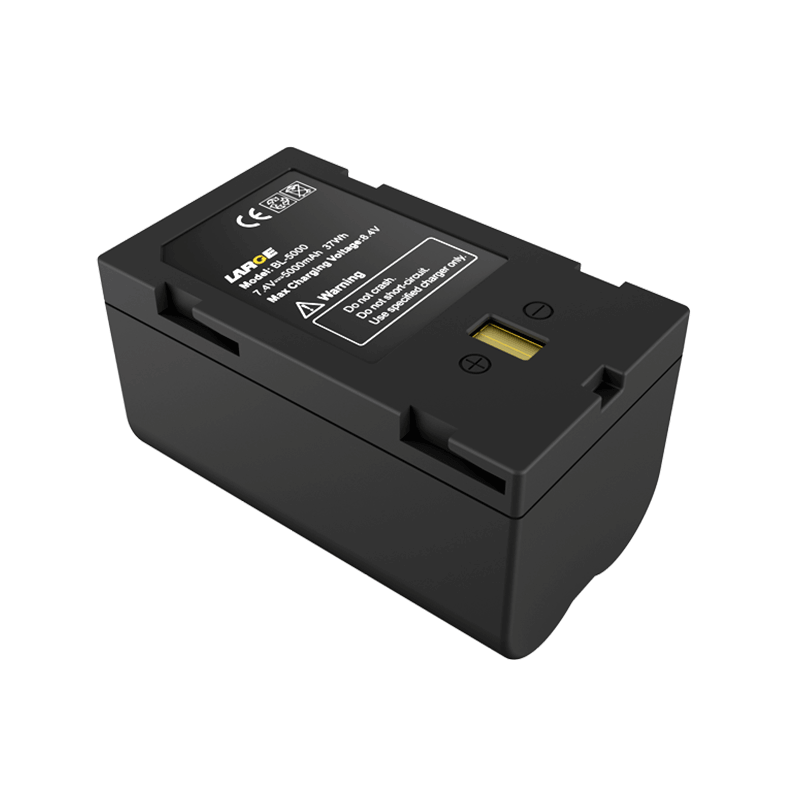

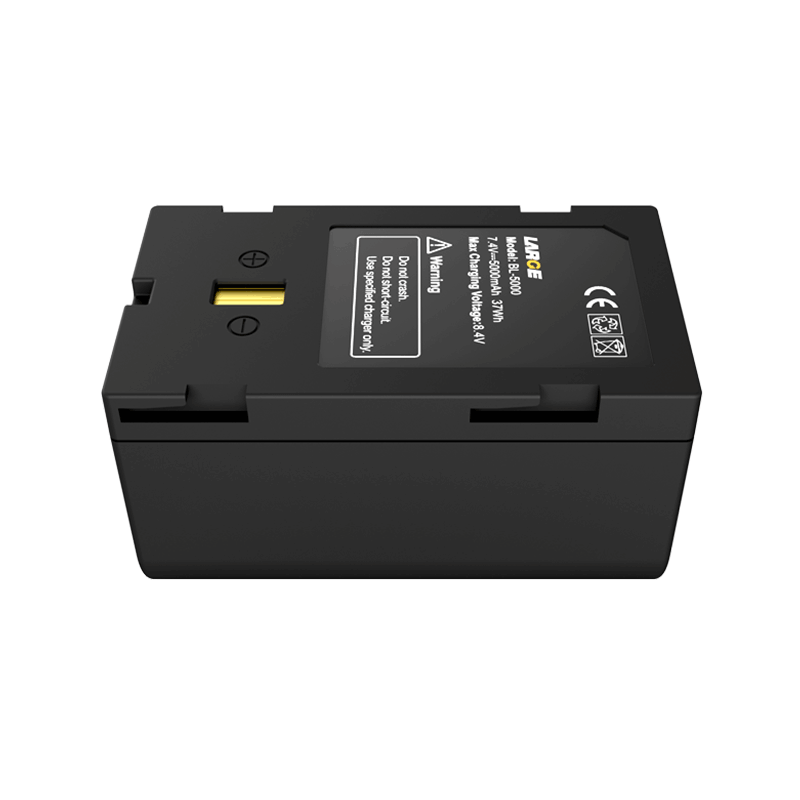

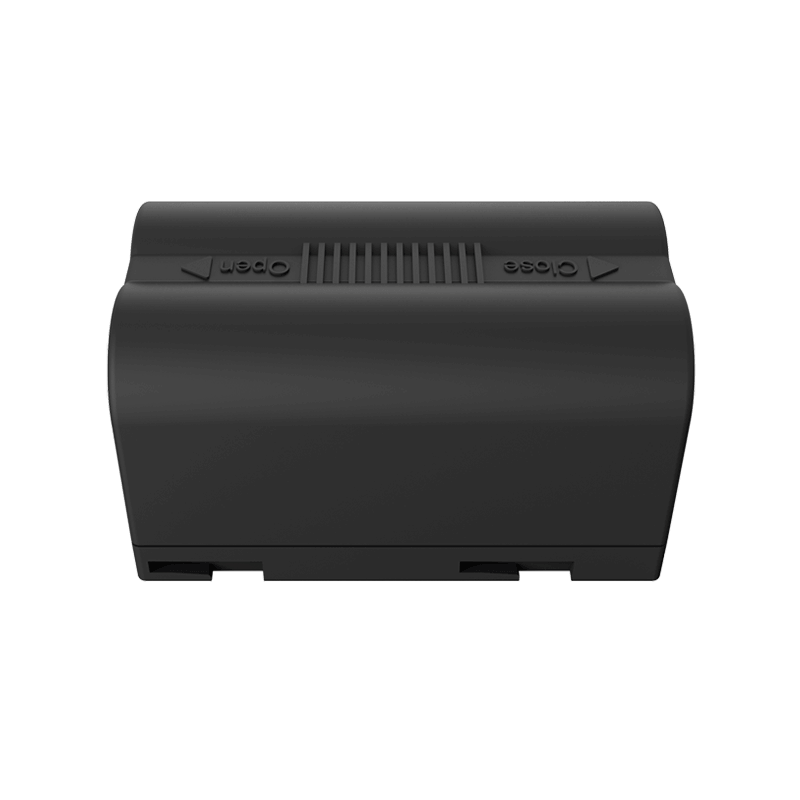

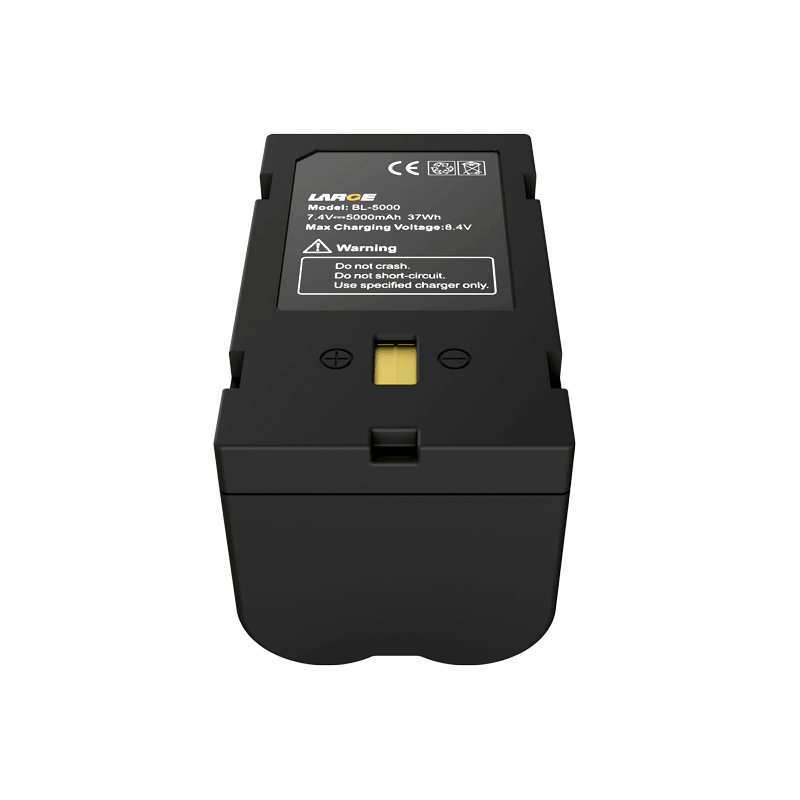

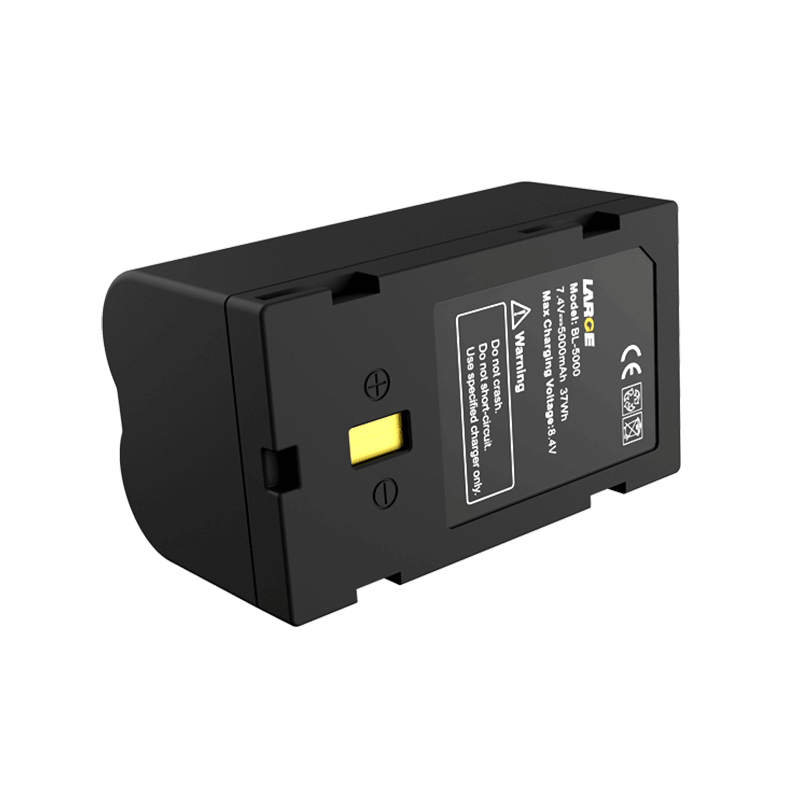

7.4V 5000mAh 18650 Lithium Ion Battery SANYO Battery for Surveying Instrument

Product Detail

Product number: 05BQ673-14T

Cell model:18650/3.7V/2500mAh

Battery specification: 18650-2S2P/7.4V/5000mAh

Nominal voltage:7.4V

Nominal capacity:5000mAh

Charging voltage: 8.4V

Charging current: ≤2.5A

Discharging current: 1.0A

Instant discharging current: 2.5A

End-off voltage: 5.6V

Internal resistance: ≤300mΩ

Battery weight: 200g

Product dimension: 39.2*38.1*70mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: surveying and mapping


*
*
*
