Custom Lithium ion Battery Pack

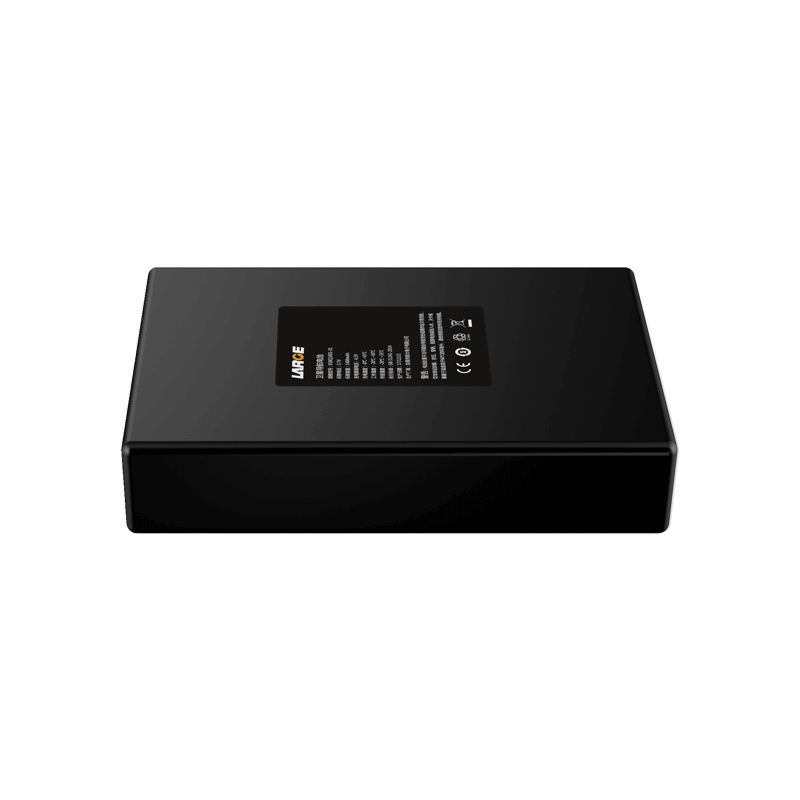

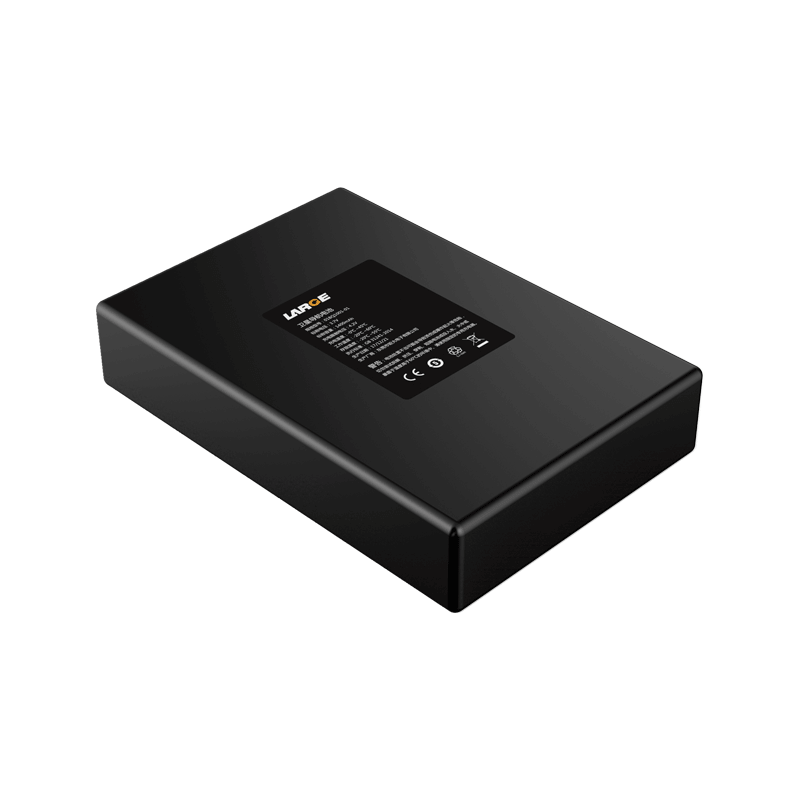

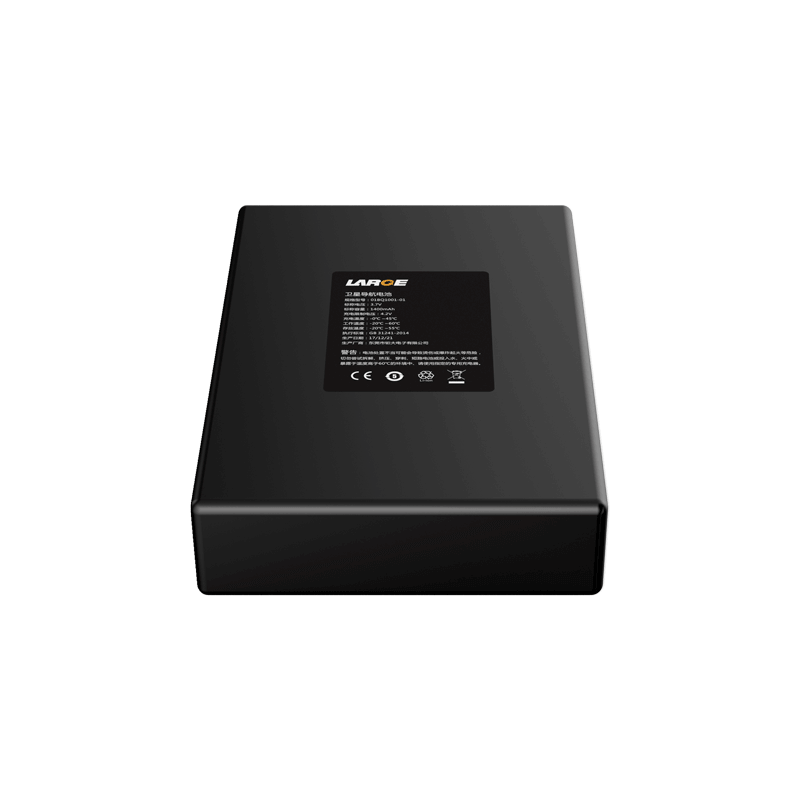

3.7V 1400mAh Lithium Ion Battery for Satellite Navigation

  • Model number:01BQ1001-01

  • Nominal voltage:3.7V

  • Nominal capacity:1400mAh

  • Battery cell:703450/3.7V/1400mAh

  • Dimension:55.5*36*7.5mm(Max)

  • Application:handheld GPS, testing instrument, etc.

Product Detail

Product number: 01BQ1001-01

Cell model:703450/3.7V/1400mAh

Battery specification: 703450-1S1P/3.7V/1400mAh

Nominal voltage:3.7V

Nominal capacity:1400mAh

Charging voltage: 4.2V

Charging current: ≤700mA

Discharging current: 700mA

Instant discharging current: 1.0A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 35g

Product dimension: 55.5*36*7.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application: handheld GPS, testing instrument, etc.

*
*
*
