Custom Lithium ion Battery Pack

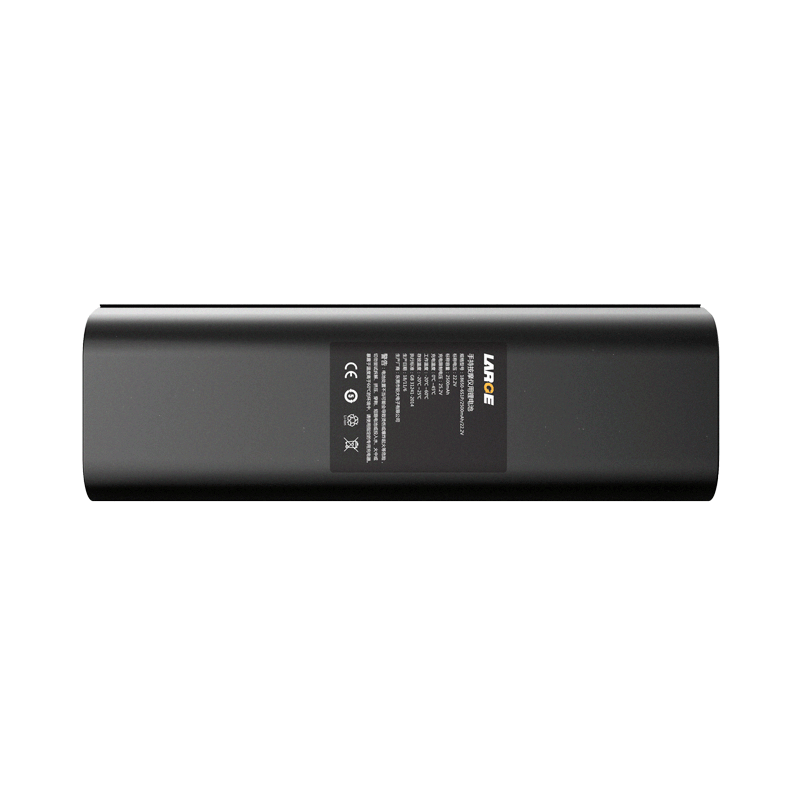

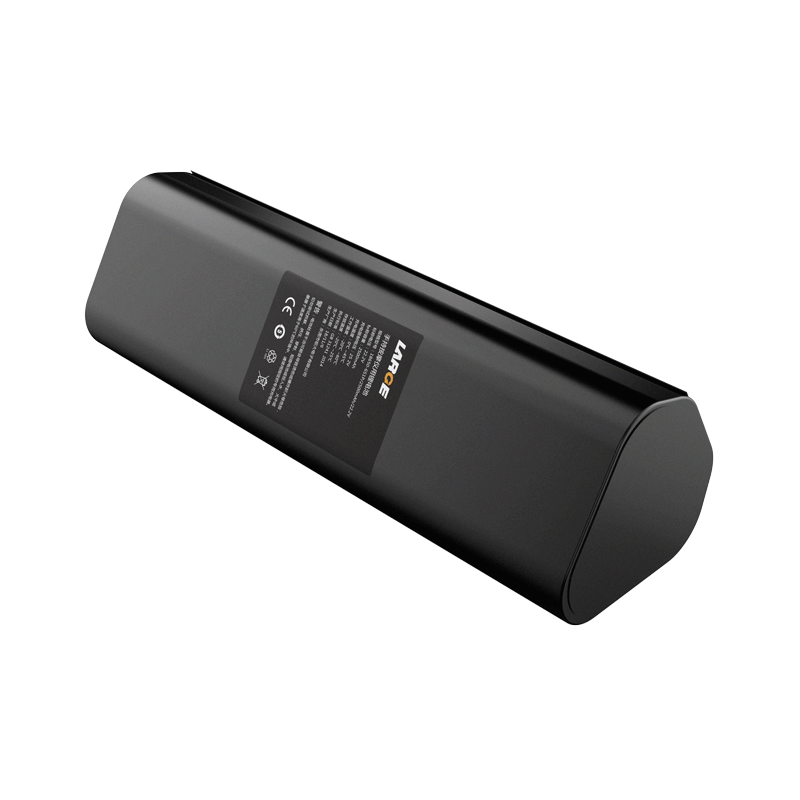

22.2V 2500mAh 18650 Lithium Ion Battery for Handheld Massage Device

  • Model number:36AQ076-01

  • Nominal voltage:22.2V

  • Nominal capacity:2500mAh

  • Battery cell:18650SZ/2500mAh/3.7V

  • Dimension:136*43*41.6mm

  • Application:handhold massage device

Product Detail

Product number: 36AQ076-01

Cell model:Lishen 18650SZ/2500mAh/3.7V

Battery specification: 18650-6S1P/2500mAh/22.2V

Nominal voltage:22.2V

Nominal capacity:2500mAh

Charging voltage: 25.2V

Charging current: 500mA

Discharging current: 500mA

Instant discharging current: 7200mA@200ms

End-off voltage: 16.8V

Internal resistance: ≤200mΩ

Battery weight: 310g

Product dimension: 136*43*41.6mm

Charging temperature:0~45℃

Discharging temperature: -20~+60 ℃

Storage temperature: -20~+25 ℃

Temperature protection: 65℃±5℃

Battery case: PVC simple package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: handhold massage device


Parameter function: short circuit protection, overcharge protection, over discharge protection, temperature protection, etc.

The product has low capacity and good rated discharge performance.


*
*
*
