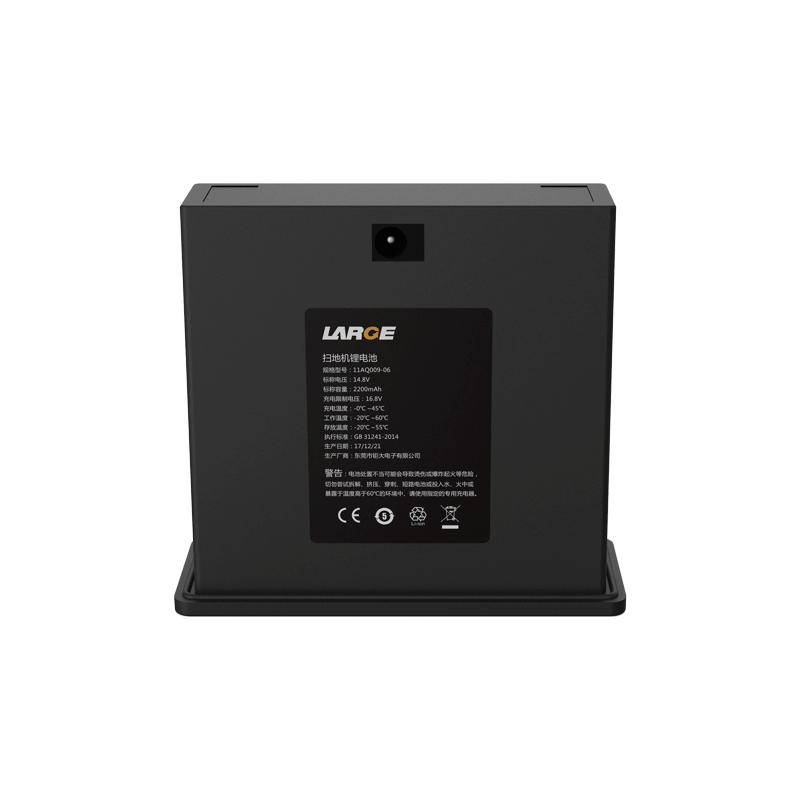

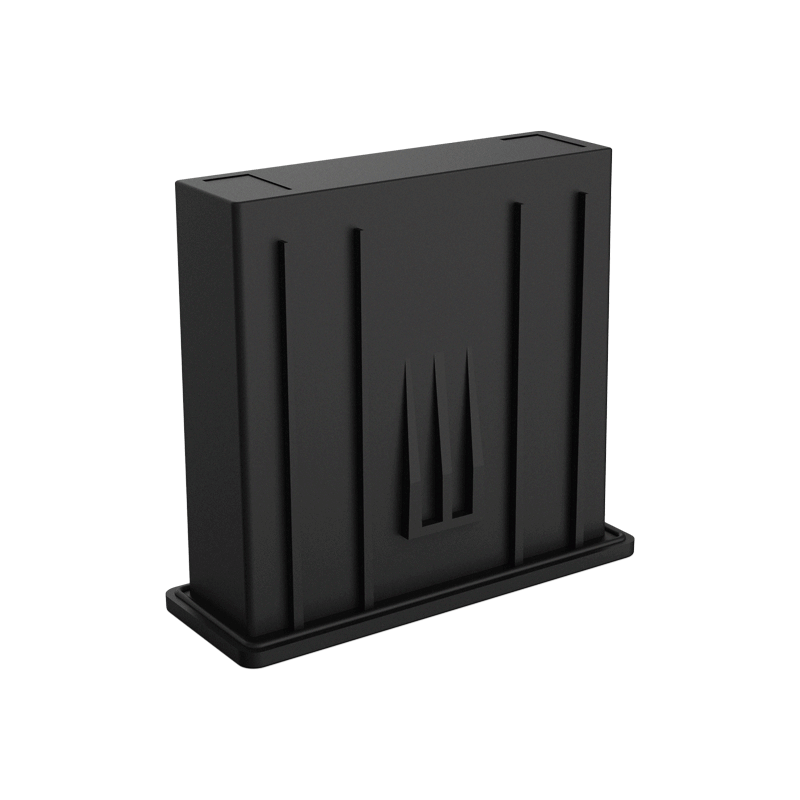

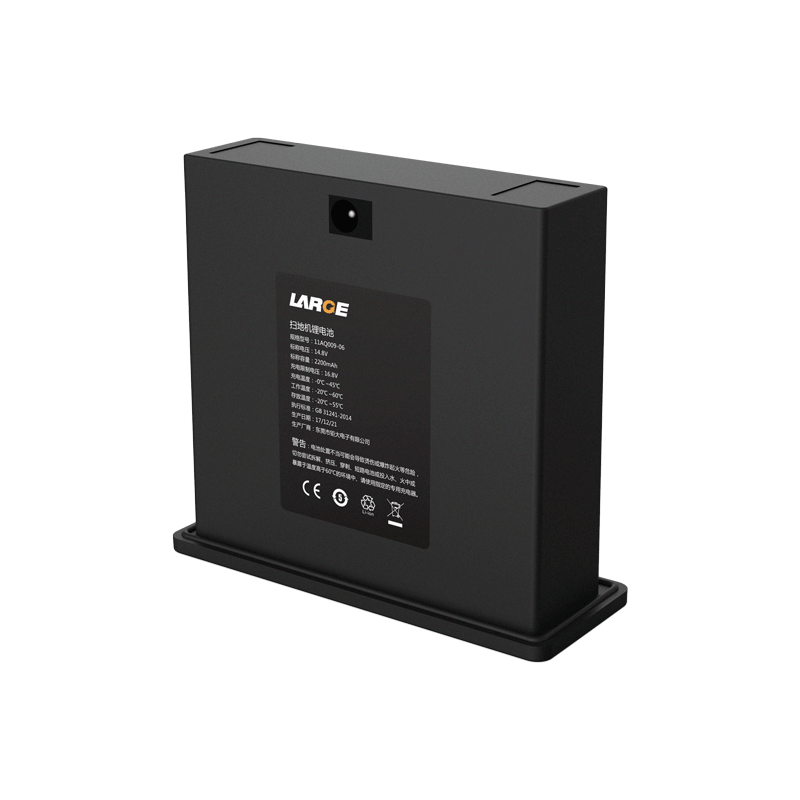

18650 14.8V 2200mAh Lithium Ion Battery Pack
Product Number:
11AQ009-06
Nominal voltage:
14.8V
Nominal capacity:
2200mAh
Battery Configuration:
18650-4S1P
Dimension:
80.7 × 33 × 80 mm
Application:
Robot Vacuum Cleaner
ABS+PC housing, 4S1P configuration, multi protection BMS
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 11AQ009-06 |
| Cell Model | 18650/3.7V/2200mAh |
| Battery Configuration | 18650-4S1P |
| Nominal Voltage | 14.8V |
| Nominal Capacity | 2200mAh |
| Rated Energy | 32.56Wh |
| Charging Voltage | 16.8V |
| Discharge Cut-off Voltage | 11V |
| Standard Charging Current | ≤2.2A |
| Standard Discharge Current | 0.44A |
| Internal Resistance | ≤350mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | -20～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～35℃ |
| Dimensions | 80.7 × 33 × 80 mm (Max) |
| Weight | 220g |
| Battery Case | ABS + PC Engineering Plastic |
| Protection System | Short Circuit / Overcharge / Over-discharge / Overcurrent Protection |
Application Background
This battery solution is designed for intelligent sweeping robots, suitable for continuous power supply in household and smart home cleaning applications.
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
