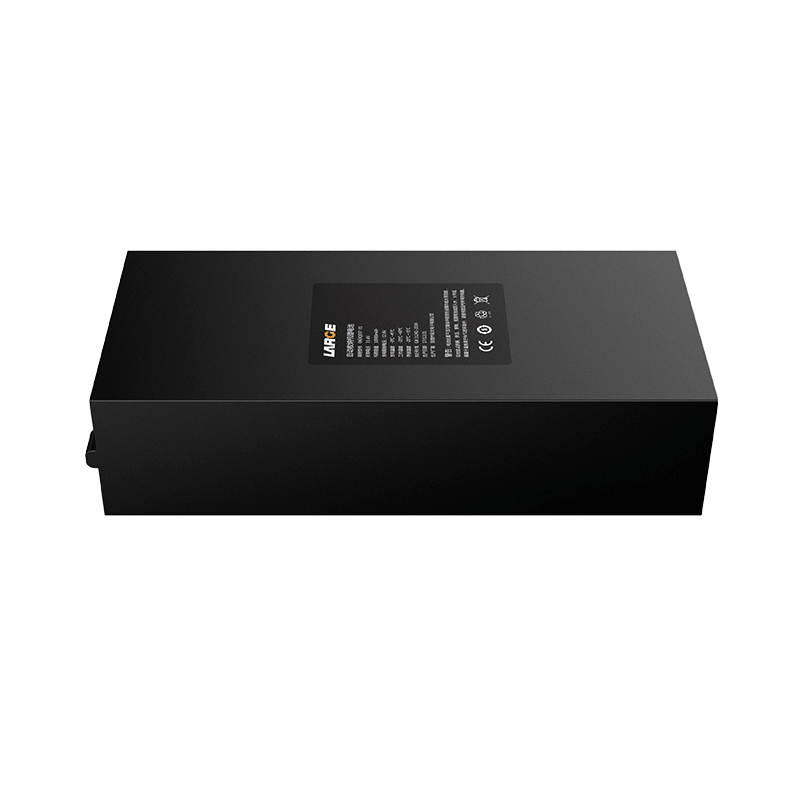

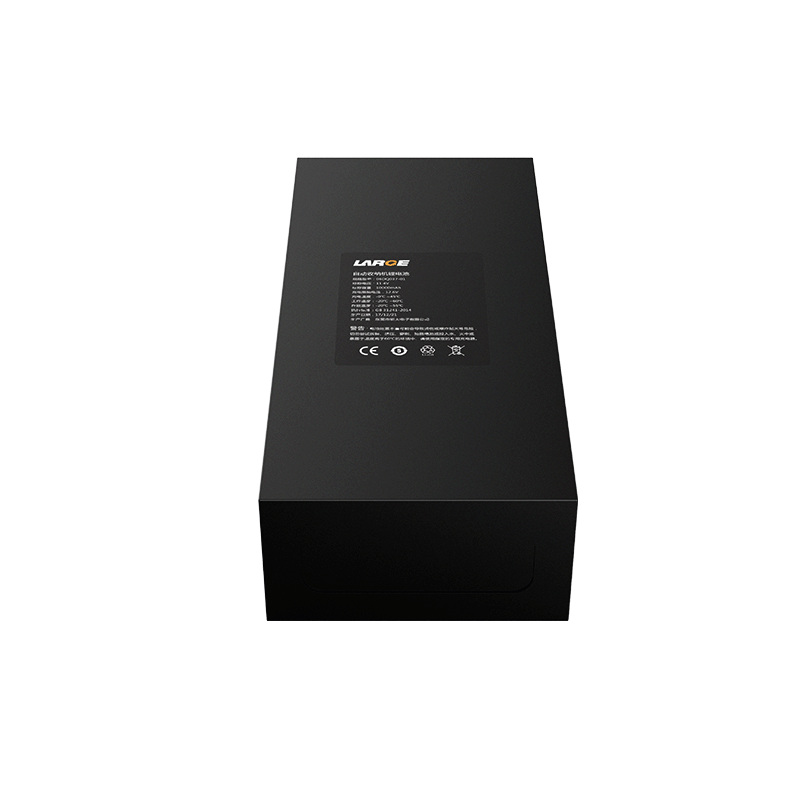

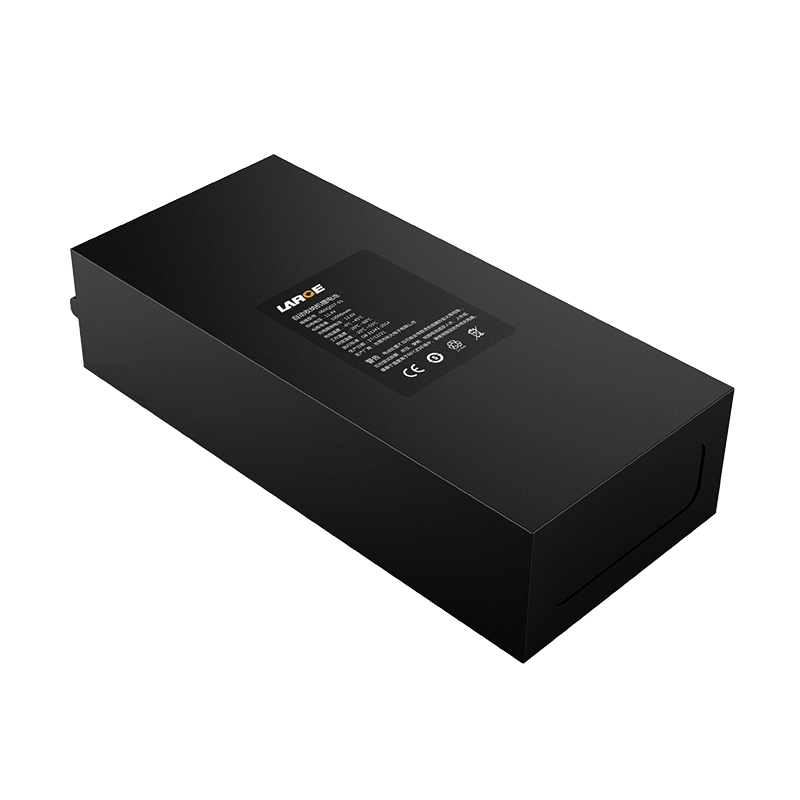

11.4V 10000mAh Lithium Polymer Battery for Self-service Storage Machine

Product Detail

Product number: 06DQ037-01

Cell model:11582150/3.8V/10000mAh

Battery specification: 11582150-3S1P/11.4V/10000mAh

Nominal voltage:11.4V

Nominal capacity:10000mAh

Charging voltage: 12.6V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 3A

End-off voltage: 9V

Internal resistance: ≤160mΩ

Battery weight: 0.8kg

Product dimension: 169*87*76mm(Max)

Charging temperature:-20~55℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: holder+PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: self-storage machine


*
*
*
