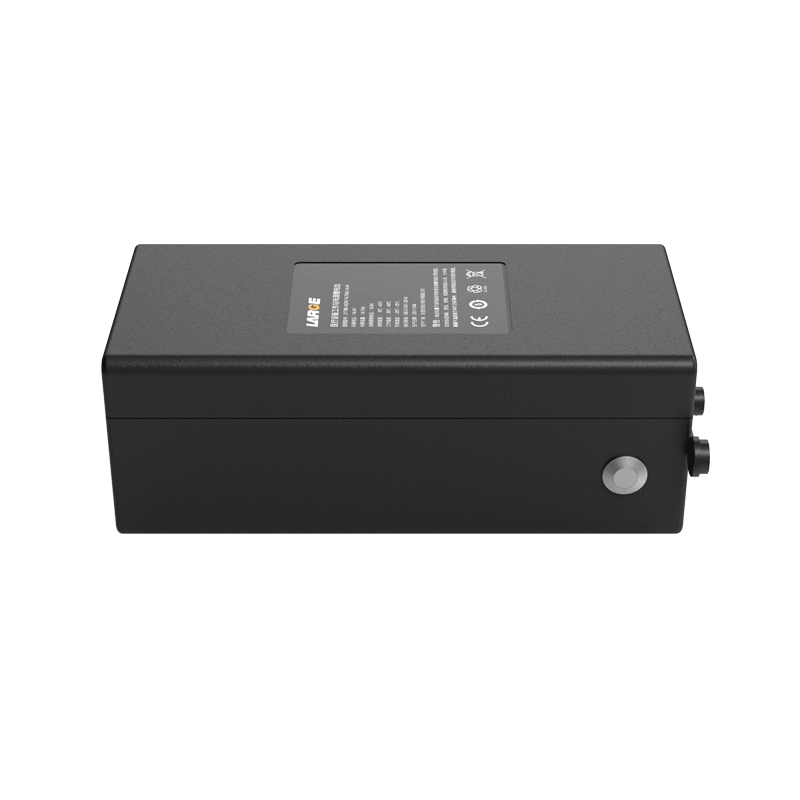

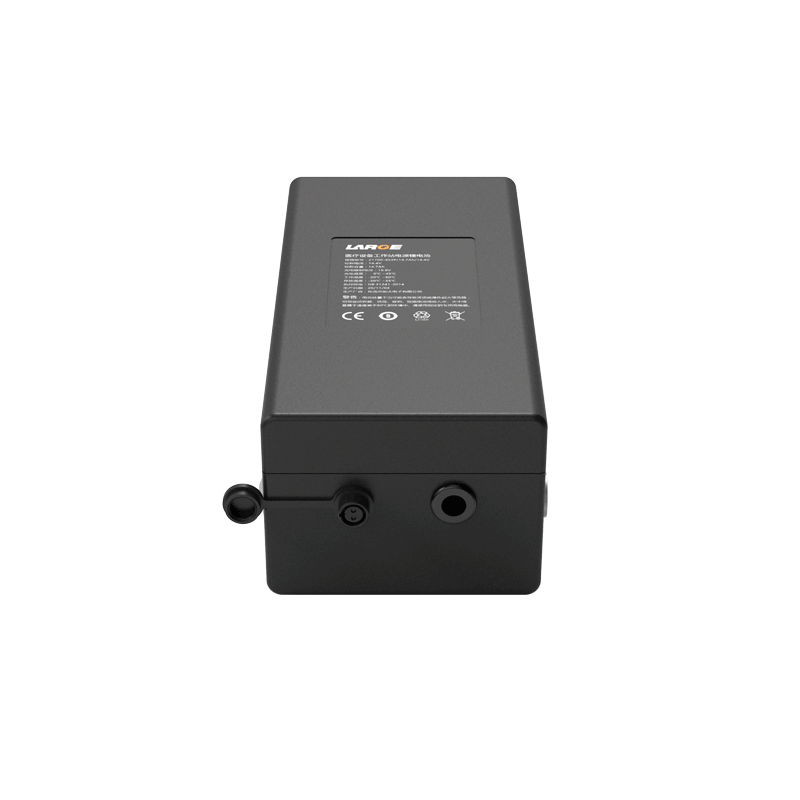

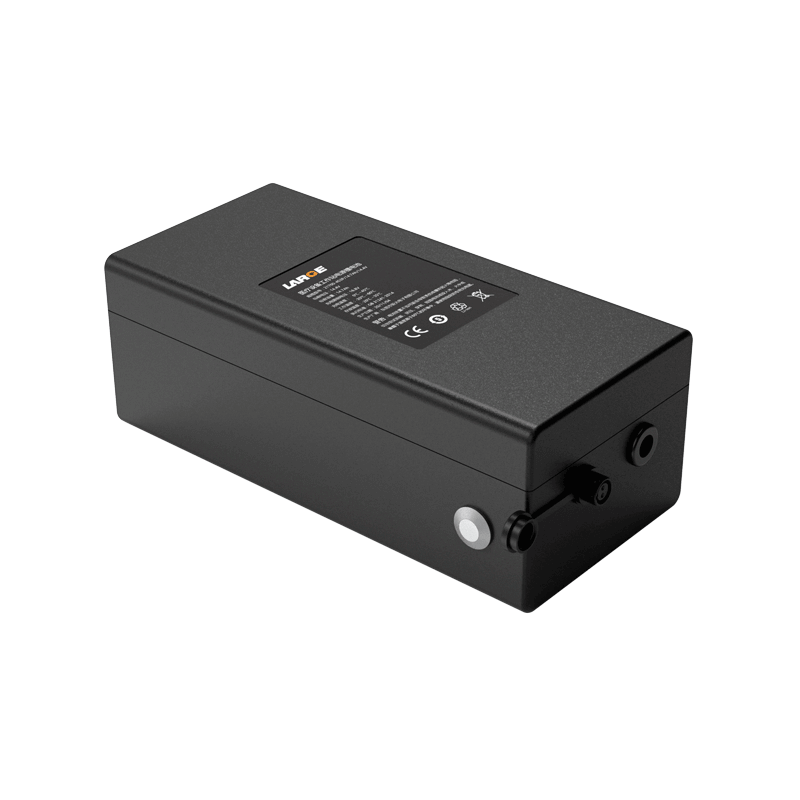

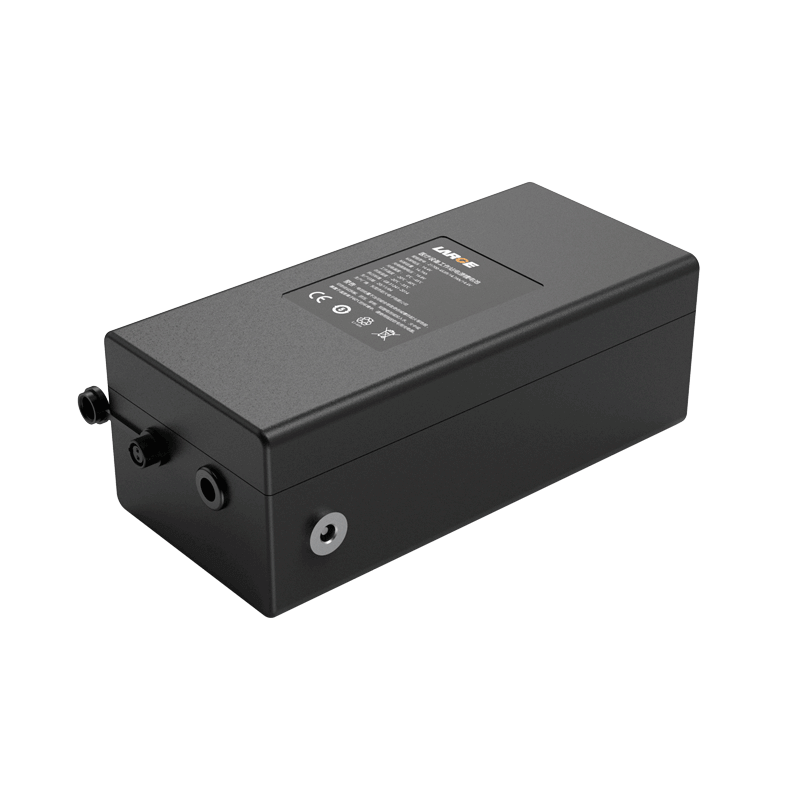

21700 14.4V 14.7Ah Samsung Battery Ternary Battery for Medical Device Workstation Power

Product number: 01WQ0010-01

Cell model：21700-4900mAh-3.6V

Battery specification: 21700-4S3P/14.7Ah/14.4V

Product dimension: 180×85×65mm

Nominal voltage：14.4V

Nominal capacity：14.7Ah

Charging voltage: 16.8V

Charging current: ≤3.3A

Discharging current: ≤7.3A

End-off voltage: 11.2V

Internal resistance: ≤150mΩ

Battery weight: 1kg

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: ABS+PC case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, over current protection and ESD protection

Application field: medical device workstation power, portable device, backup power

Product features

1. ABS+PC case increases the reliability and immobility of the battery.

2. Hardware output: Adopt metal plate output mode to increase conductive reliability.

3. Battery protection management: Adopt TI-SMBus software management chip, SMBus  data transmission, accurate temperature control so as to try our best to eliminate the security risks.

4. Data communication management: Adopt 485 communication data transmission, accurate temperature control, real-time battery status monitoring and controlling  so as to try our best to eliminate the security risks.

5.The battery pack has good security, nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
