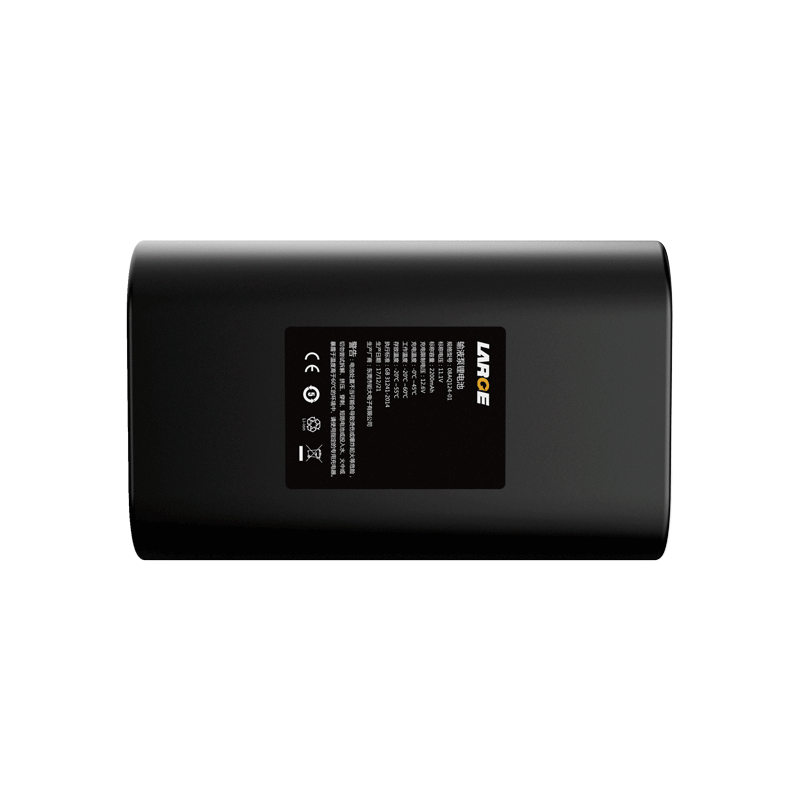

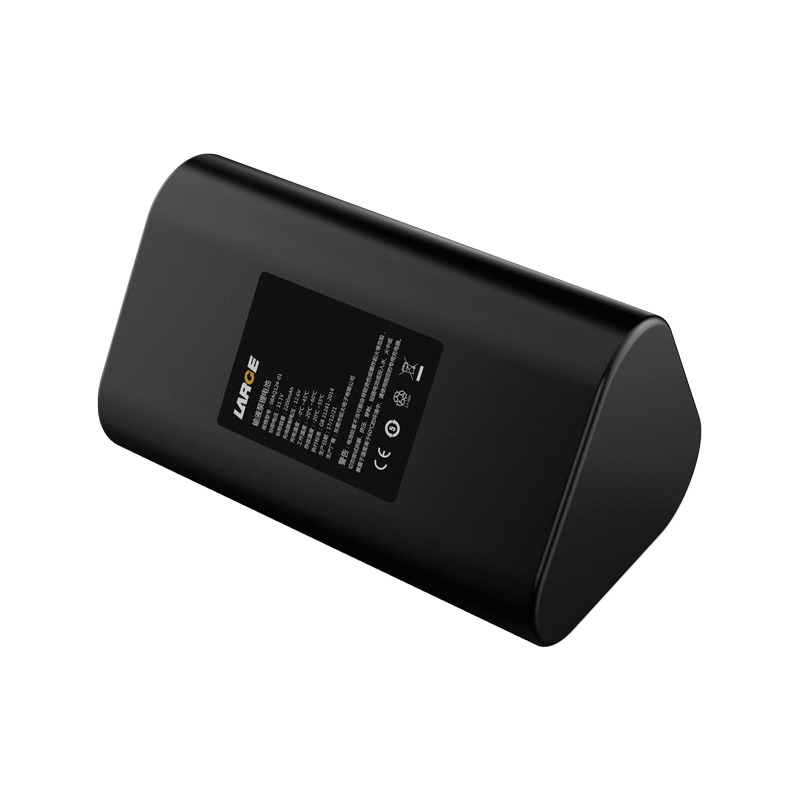

Custom Lithium ion Battery Pack

11.1V 2200mAh 18650 Ternary Battery Bak Battery for Infusion Pump

Product Detail

Product Number: 08AQ124-01

Combination mode: ICR18650-3S1P

Nominal voltage: 11.1V

Nominal capacity: 2200mAh

Standard discharge continuous current: 0.2C

Maximum discharge continuous current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 35.3*37*67mm

Finished product internal resistance: 300 mΩ or less

Lead model: UL1007/20# red-black wire length: 55mm

*
*
*
