Custom Lithium Ion Battery Pack

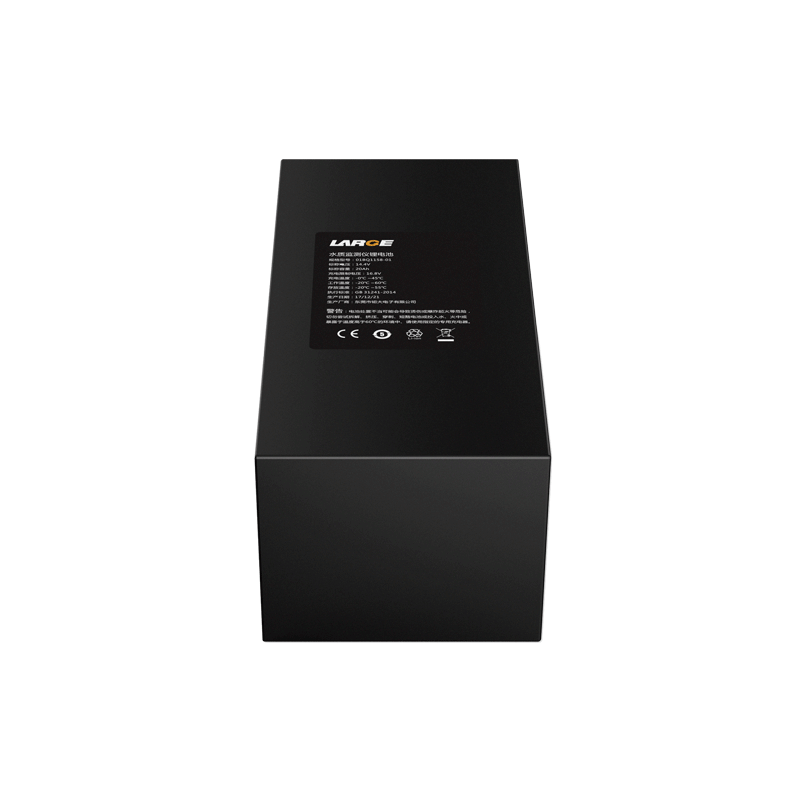

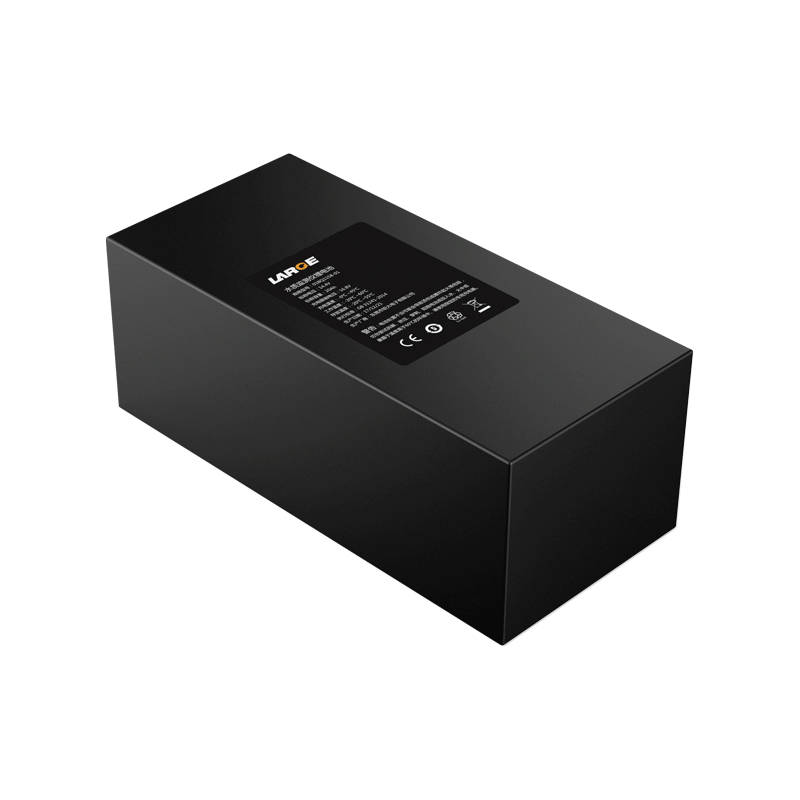

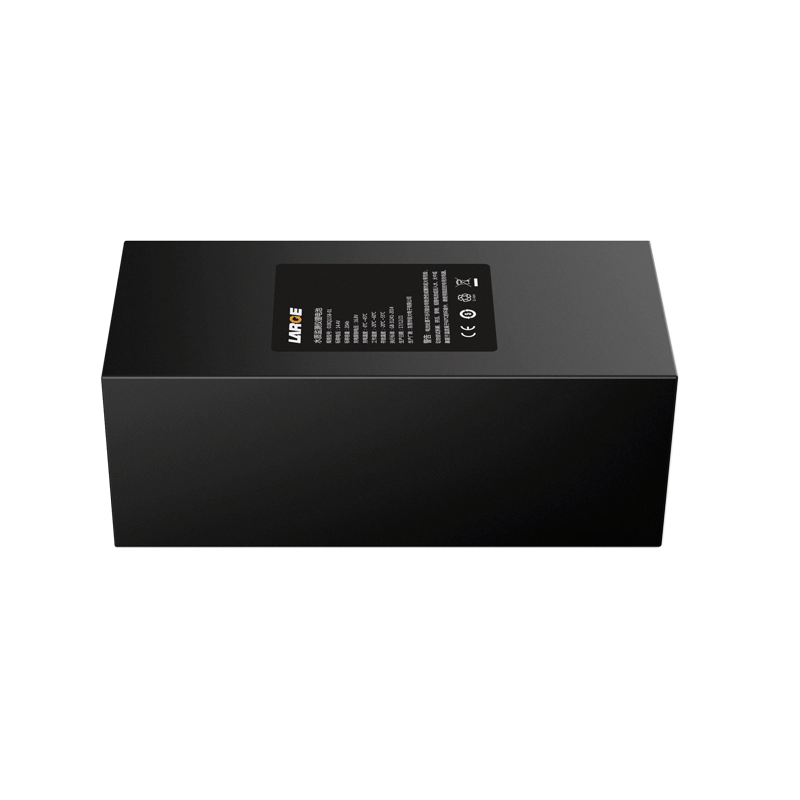

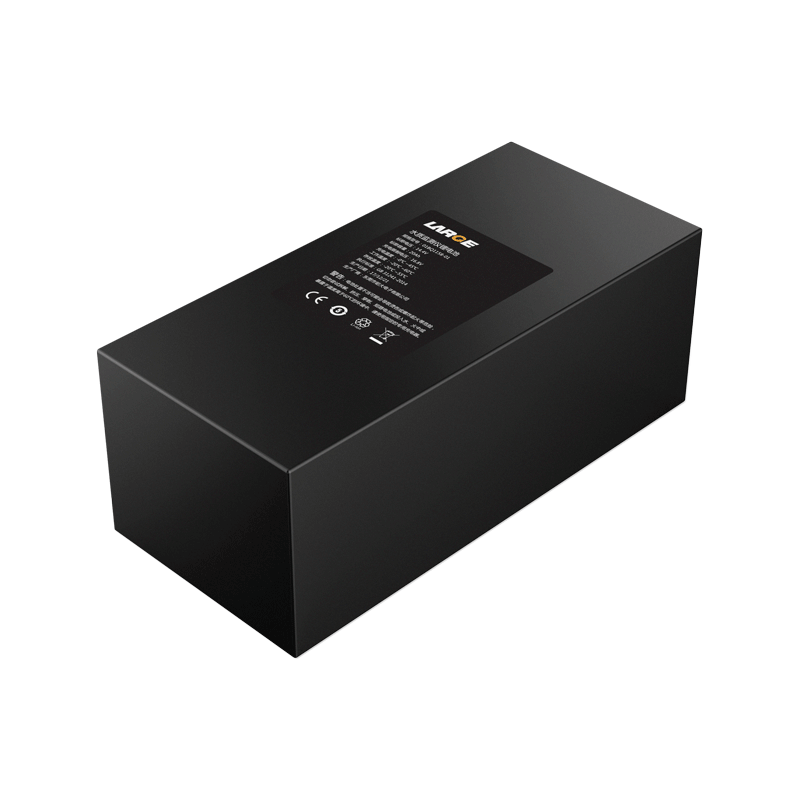

14.4V 20Ah 18650 Lithium Ion Battery Sanyo Battery for Water Quality Monitor

  • Model number:01BQ1158-01

  • Nominal voltage:14.4V

  • Nominal capacity:20000mAh

  • Battery cell:18650/3.6V/2.5Ah

  • Dimension:190*88*72mm(Max)

  • Application:water quality monitor, testing equipment

Product Detail

Product number: 01BQ1158-01

Cell model:18650/3.6V/2.5Ah

Battery specification: 18650-4S8P/14.4V/20Ah

Nominal voltage:14.4V

Nominal capacity:20Ah

Charging voltage: 16.8V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 12.0V

Internal resistance: ≤150mΩ

Battery weight: 1600g

Product dimension: 190*88*72mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: water quality monitor, testing equipment

*
*
*
