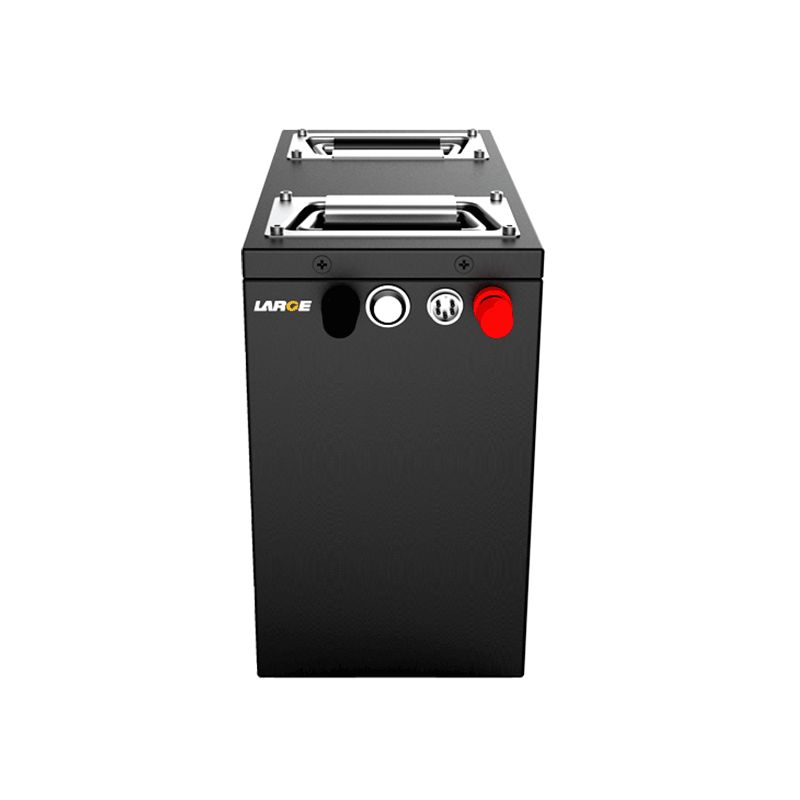

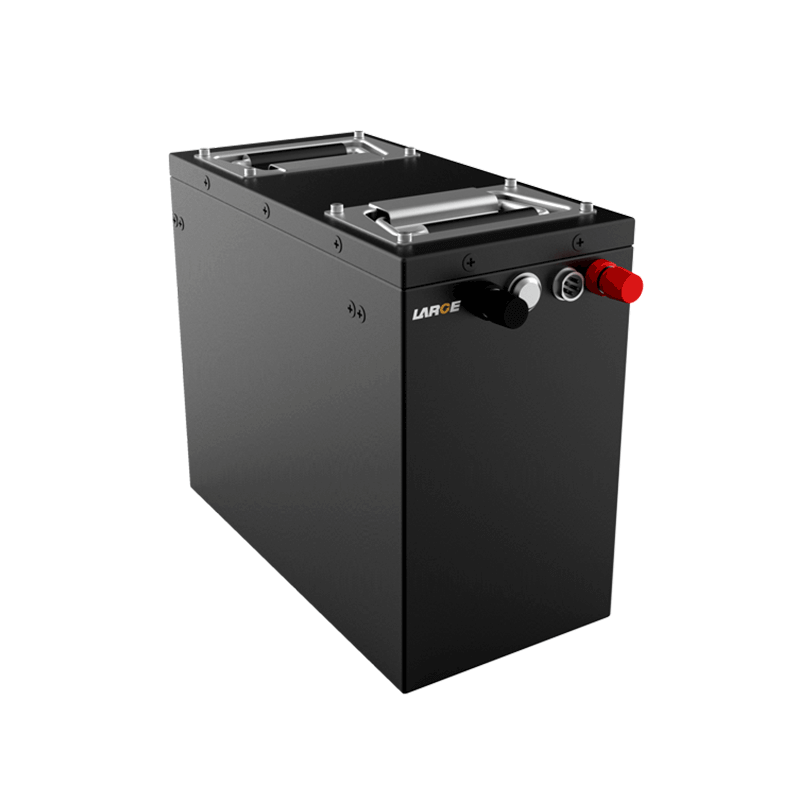

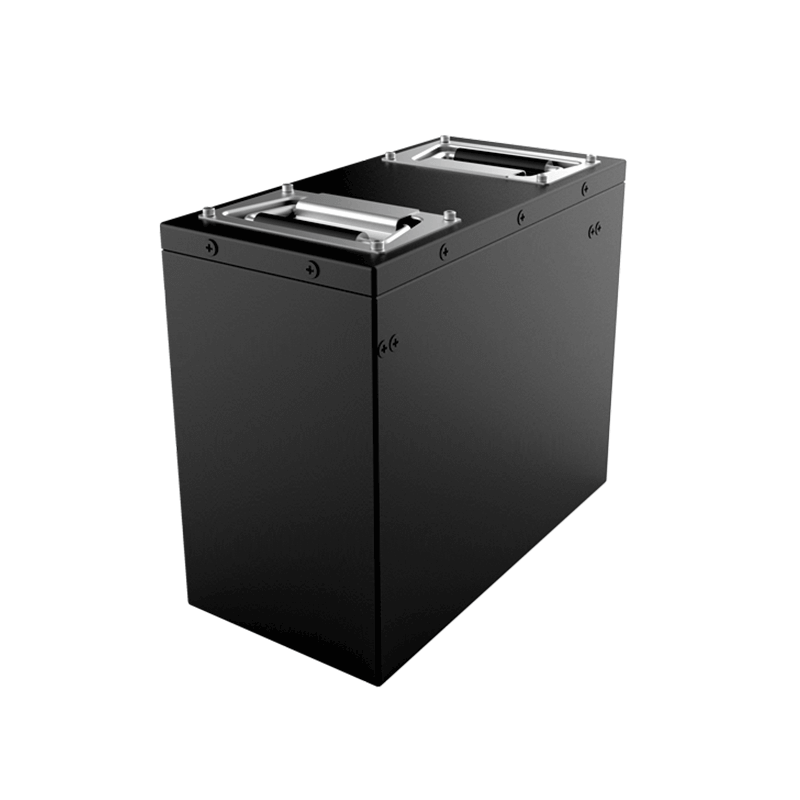

26650 48V 25Ah Storage Lithium Ion Battery for AGV Pipe Gallery Intelligent Robot with RS485 Communication

26650 48V 25Ah Storage Lithium Ion Battery for AGV Pipe Gallery Intelligent Robot with RS485 Communication
26650 48V 25Ah Storage Lithium Ion Battery for AGV Pipe Gallery Intelligent Robot with RS485 Communication
26650 48V 25Ah Storage Lithium Ion Battery for AGV Pipe Gallery Intelligent Robot with RS485 Communication
26650 48V 25Ah Storage Lithium Ion Battery for AGV Pipe Gallery Intelligent Robot with RS485 Communication

Product Detail

Product number: 02DQ0023-34

Cell model:26650/3.2V/3200mAh

Battery specification: 26650-15S8P/48V/25Ah

Nominal voltage:48V

Nominal capacity:25Ah

Charging voltage: 54.75V

Charging current: ≤25A

Discharging current: 25A

Instant discharging current: 50A

End-off voltage: 37.5V

Internal resistance: ≤100mΩ

Battery weight: 16Kg

Product dimension: 300*250*150mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Temperature protection: 70℃±5℃

Battery case: metal plating housing

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, UART communication, etc.

Application field: intelligent robot

*
*
*
