Custom Lithium Ion Battery Pack

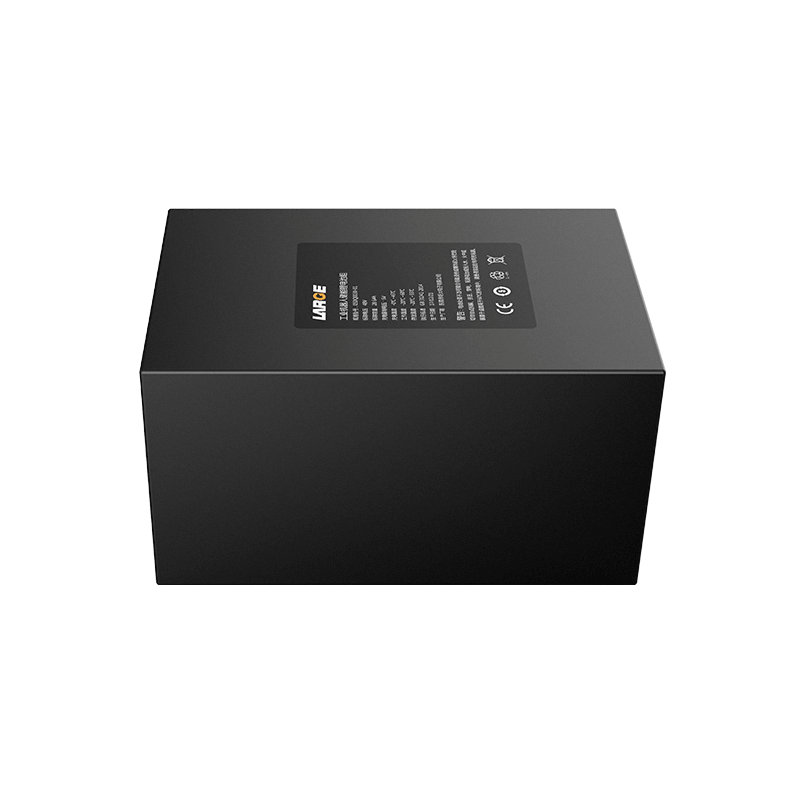

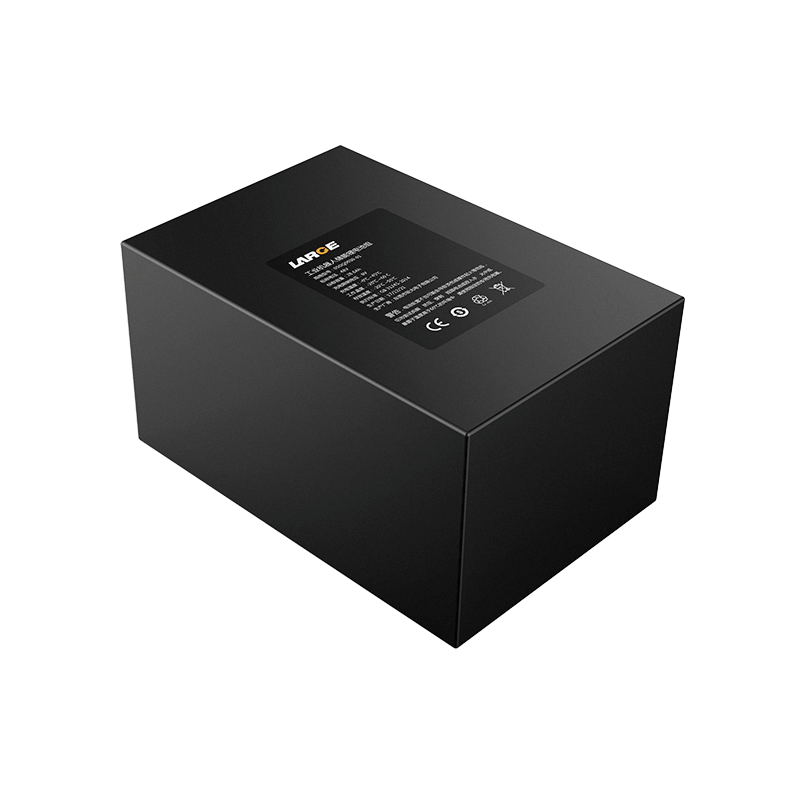

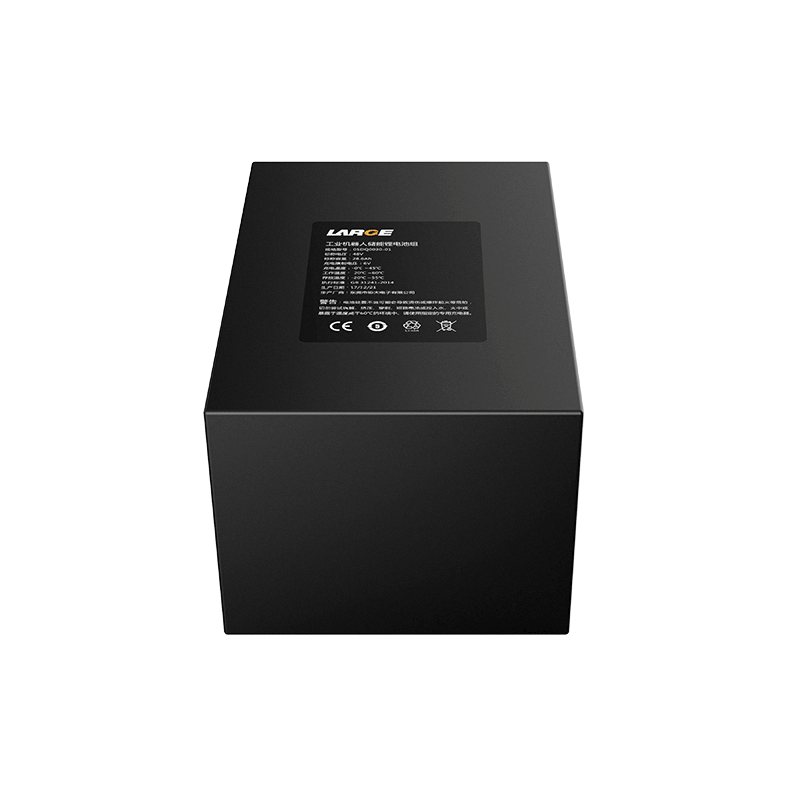

18650 48V 28.6Ah Energy Storage Battery for Industrial Robot with RS232 and RS485 Communication

  • Model number:05DQ0030-01

  • Nominal voltage:48.0V

  • Nominal capacity:28600mAh

  • Battery cell:18650/2200mAh/3.6V

  • Dimension:282*190*149mm(Max)

  • Application:industrial robot

Product Detail

Product number: 05DQ0030-01

Cell model:18650/2200mAh/3.6V

Battery specification: 18650-13S13P/48V/28.6Ah

Nominal voltage:48V

Nominal capacity:28.6Ah

Charging voltage: 54.6V

Charging current: ≤10A

Discharging current: 60A

Instant discharging current: 120A

End-off voltage: 32.5V

Internal resistance: ≤200mΩ

Battery weight: 11kg

Product dimension: 282*190*149mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~45℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, 232 & 485 communication, etc.

Application field: industrial robot


Product features

1. Current: the maximum continuous discharging current is 10A.

2. Data communication management: adopt imported software management chip, 232 & 485 communicating function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Battery feature: adopt single battery with 17A discharging current. The battery can keep charging and discharging under large power.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
