Custom Lithium Ion Battery Pack

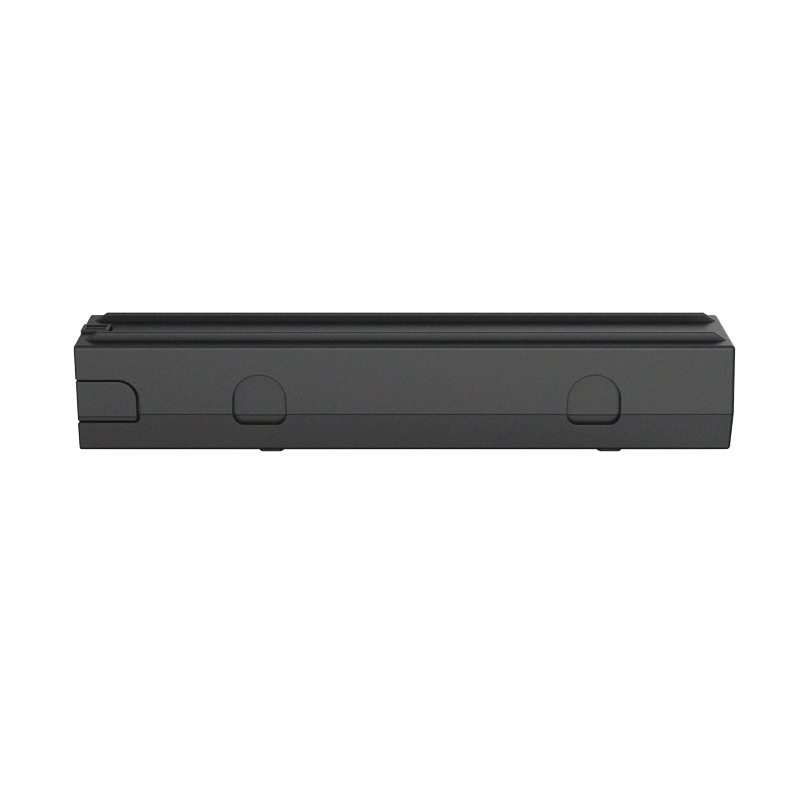

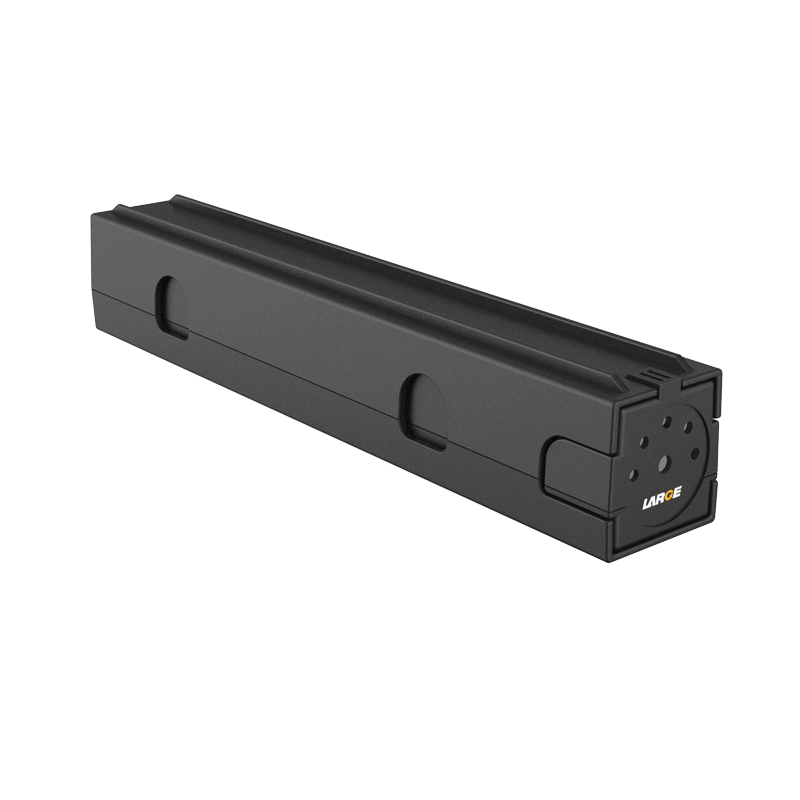

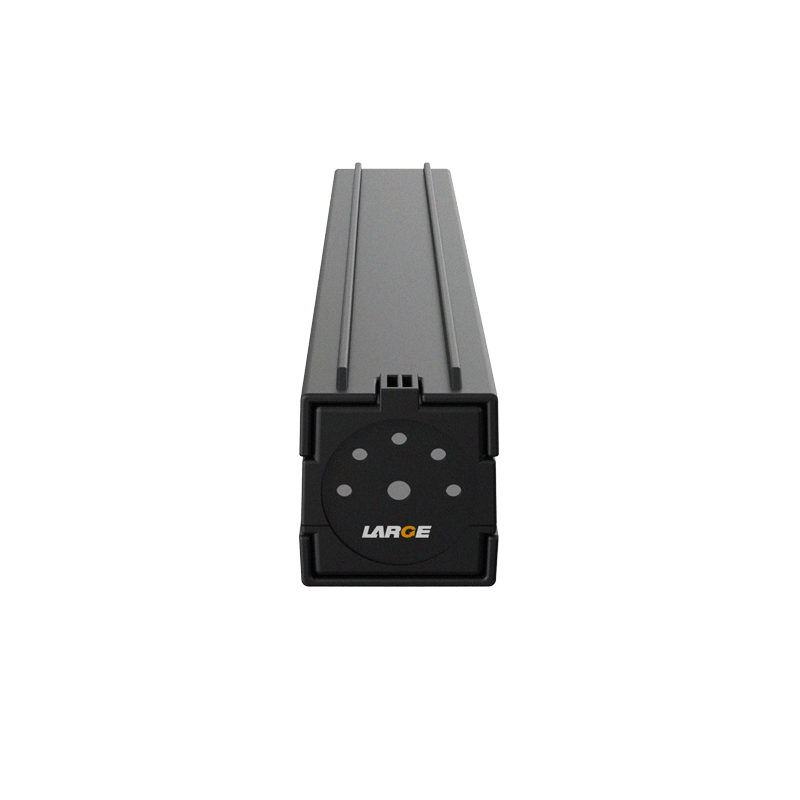

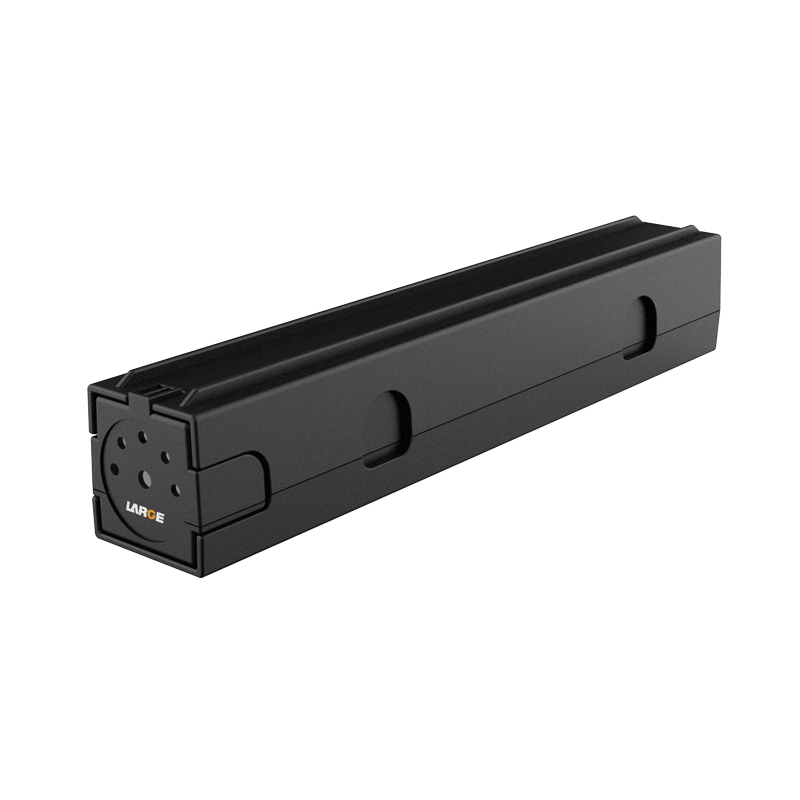

18650 14.8V 8800mAh Lithium Battery for Track Measurer

  • Model number:19AQ006-03T

  • Nominal voltage:14.8V

  • Nominal capacity:8800mAh

  • Battery cell:18650CL/2200mAh/3.6V

  • Dimension:288.0*46.4*45.5mm(Max)

  • Application:industrial device, track measurer

Product Detail

Product number: 19AQ006-03T

Cell model:18650CL/2200mAh/3.6V low temperature

Battery specification: 18650-4S4P/8800mAh/14.8V

Nominal voltage:14.8V

Nominal capacity:8800mAh

Charging voltage: 16.8V

Charging current: 1760mA

Discharging current: 1760mA

Instant discharging current: 4400mA

End-off voltage: 11V

Internal resistance: ≤250mΩ

Battery weight: 900g

Product dimension: 288.0*46.4*45.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~30 ℃

Battery case: ABS

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: industrial device, track measurer


*
*
*
