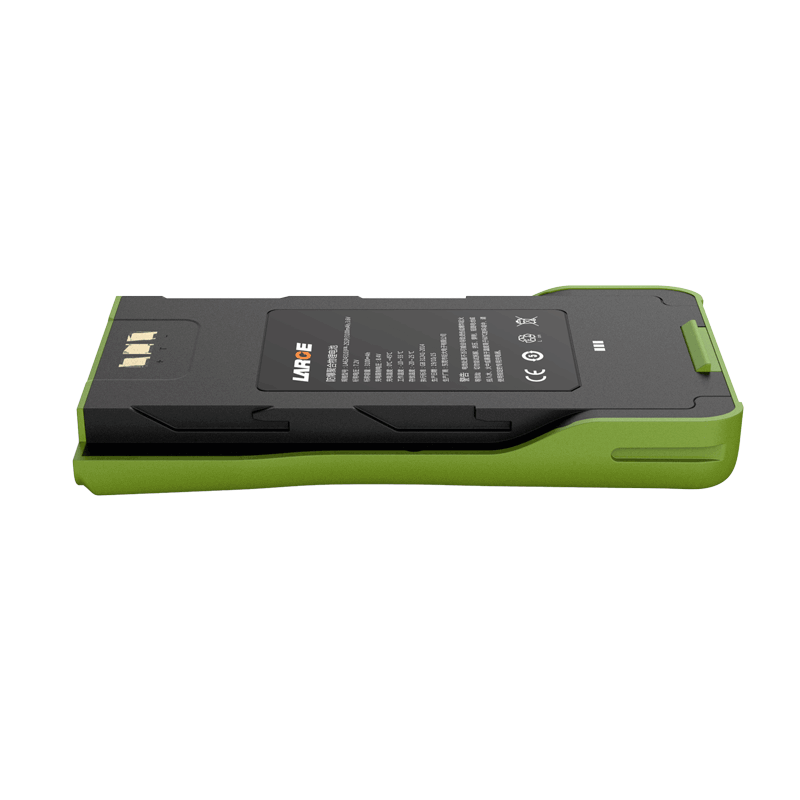

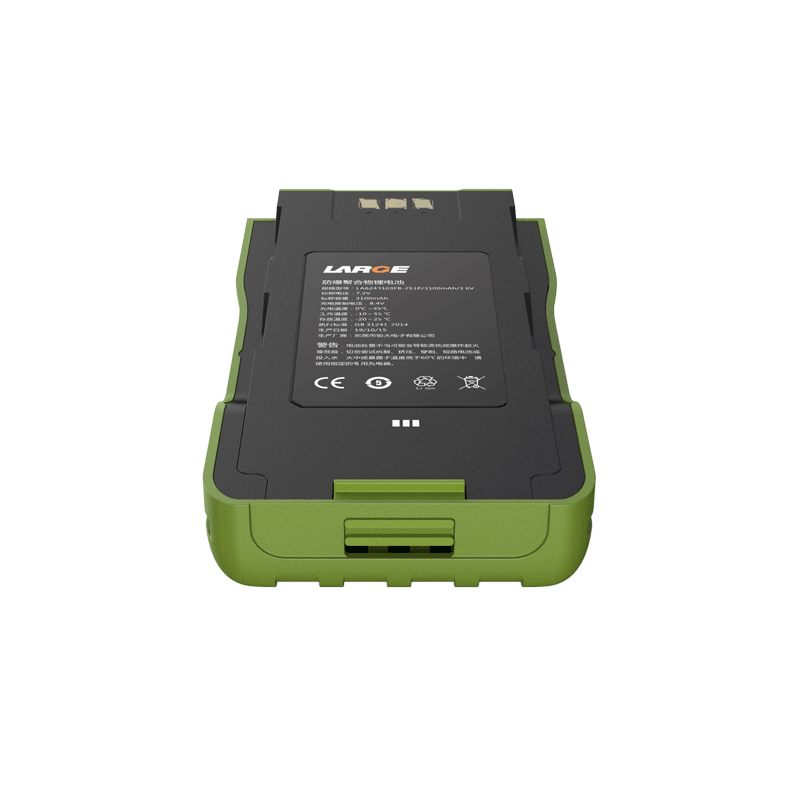

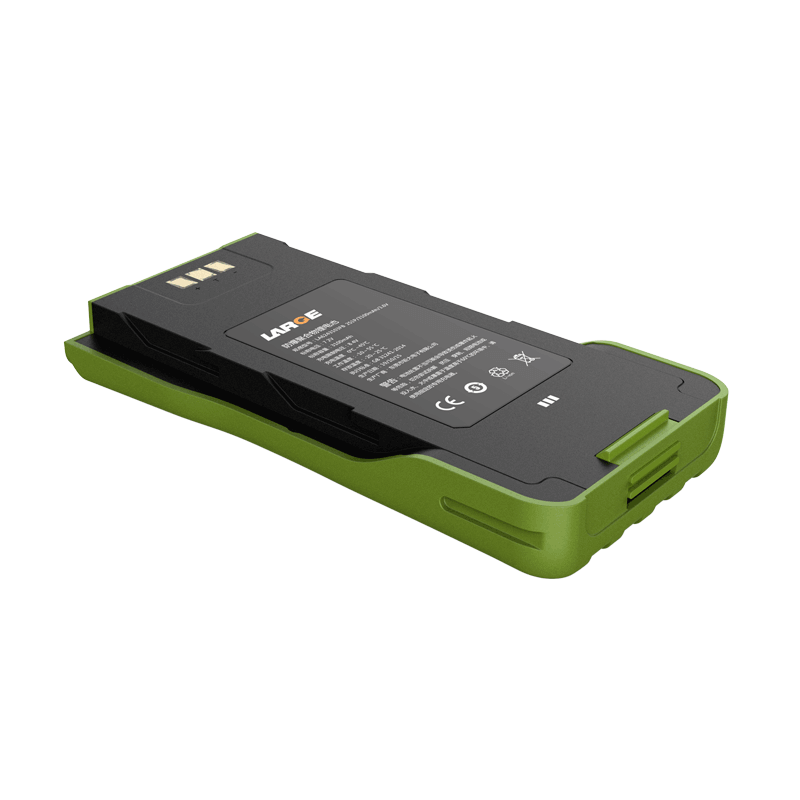

7.2V 3100mAh Explosion-proof LiPo Battery for Special Handheld Device

Product Detail

Product number: 35AQ009-07

Cell model:LA6243103FB/3100mAh/3.6V

Battery specification: LA6243103FB-2S1P/3100mAh/7.2V

Nominal voltage:7.2V

Nominal capacity:3100mAh

Charging voltage: 8.4V

Charging current: ≤0.62A

Discharging current: 1.55A

Instant discharging current: 3.1A

End-off voltage: 6.0V

Internal resistance: ≤160mΩ

Battery weight: 150g

Product dimension: 119*62*16(±0.2,mm)

Charging temperature:0~45℃

Discharging temperature: -10~55℃

Storage temperature: -20~25℃

Battery case: IP68

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: Oil station, gas station, mining, etc.


Product features

1. Low self-discharge.

2. The battery pack has good security and long cycling life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. Product design refers to GB3836 / Exib iiB T4.

*
*
*
