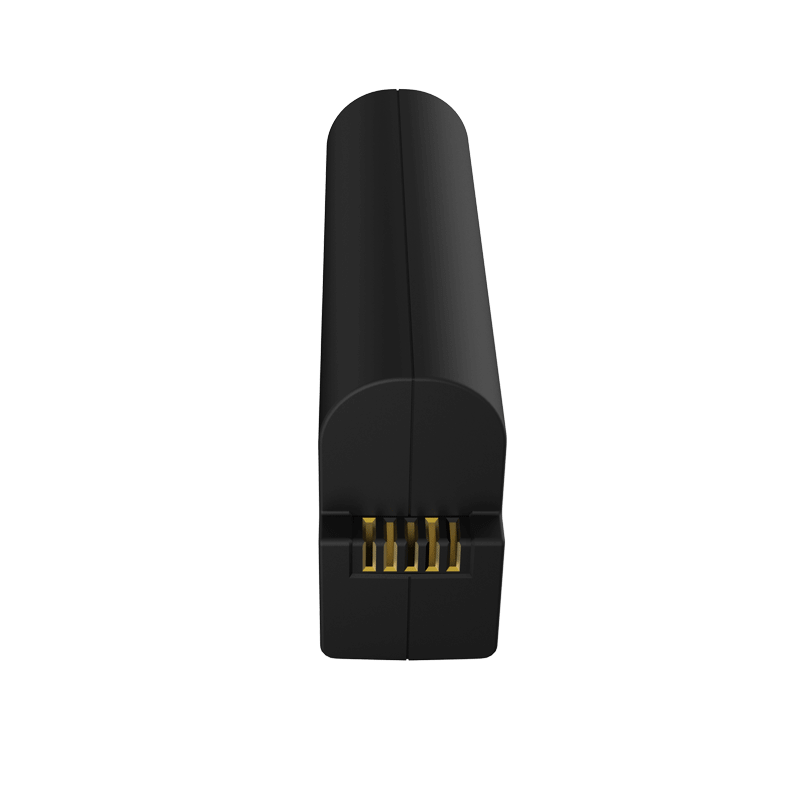

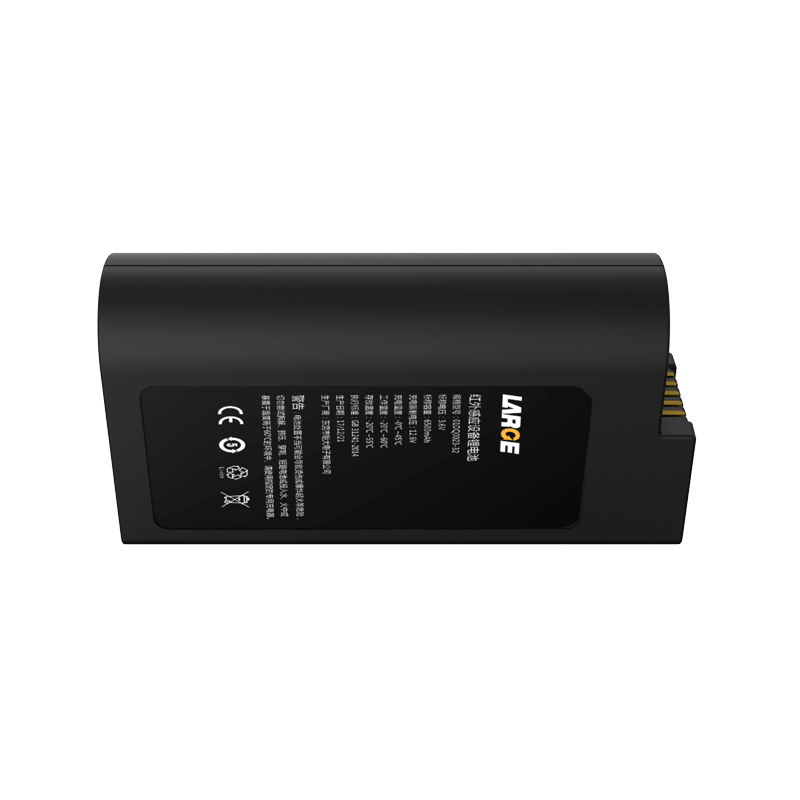

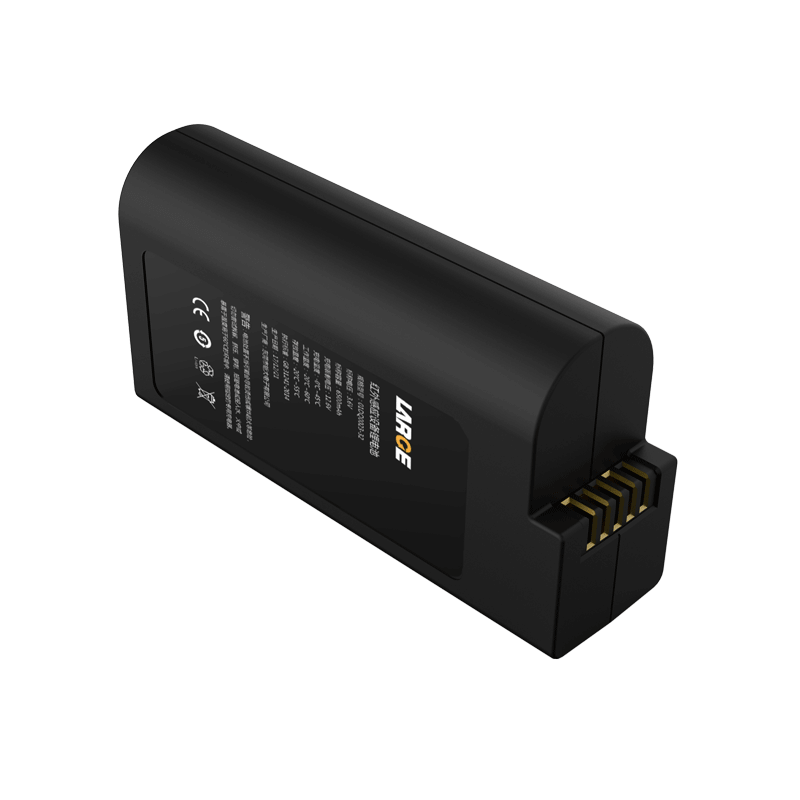

3.6V 6500mAh 18650 Lithium Ion Battery LG Battery for Infrared Induction Equipment with I2C Communication

Product Detail

Product number: 01DQ0040-02

Cell model:18650/3.6V/2600mAh

Battery specification: 18650-1S3P/3.6V/7800mAh

Nominal voltage:3.6V

Nominal capacity:7800mAh

Charging voltage: 4.2V

Charging current: ≤2A

Discharging current: 1A

Instant discharging current: 2A

End-off voltage: 3V

Internal resistance: ≤250mΩ

Battery weight: 0.3Kg

Product dimension: 79.5*58.1*29.7mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature measurement, etc.

Application field: monitor device



Product features

1. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. It can charge by Micro USB 5V.

3. Control the charging by Ti management chip.

4. The battery pack has good security, nice performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
