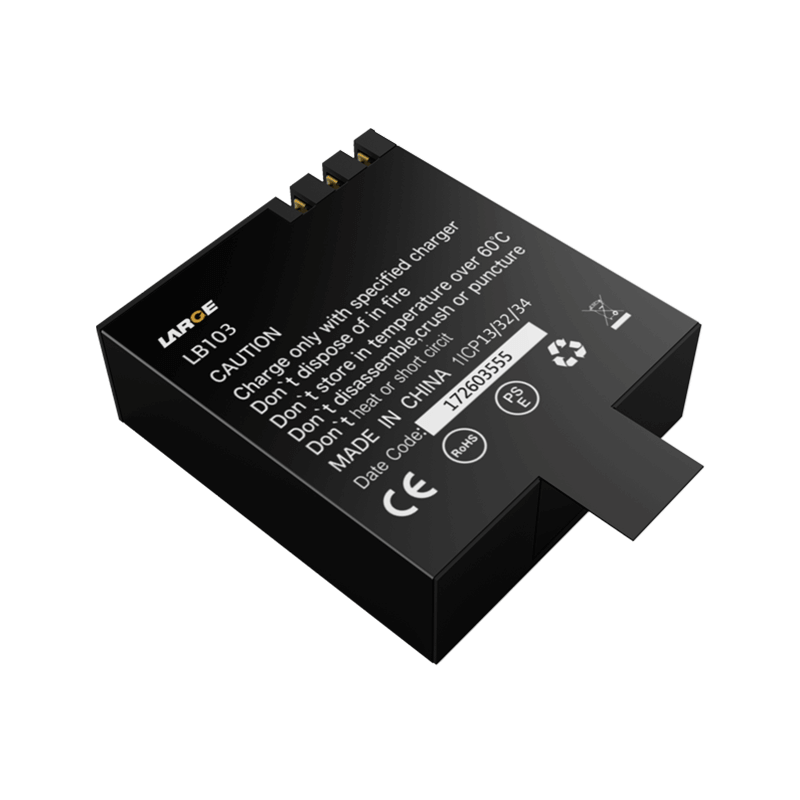

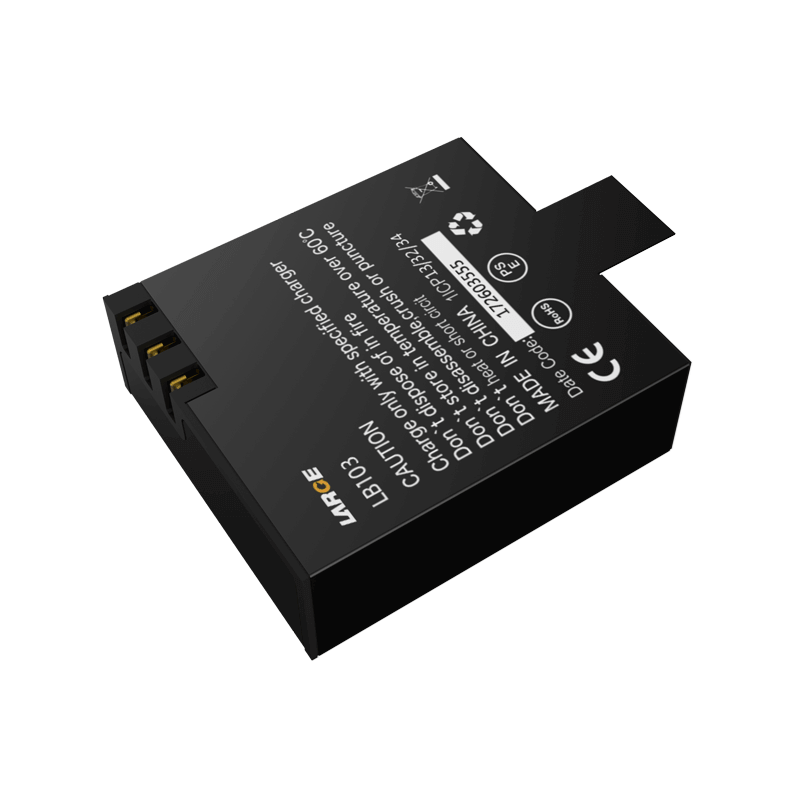

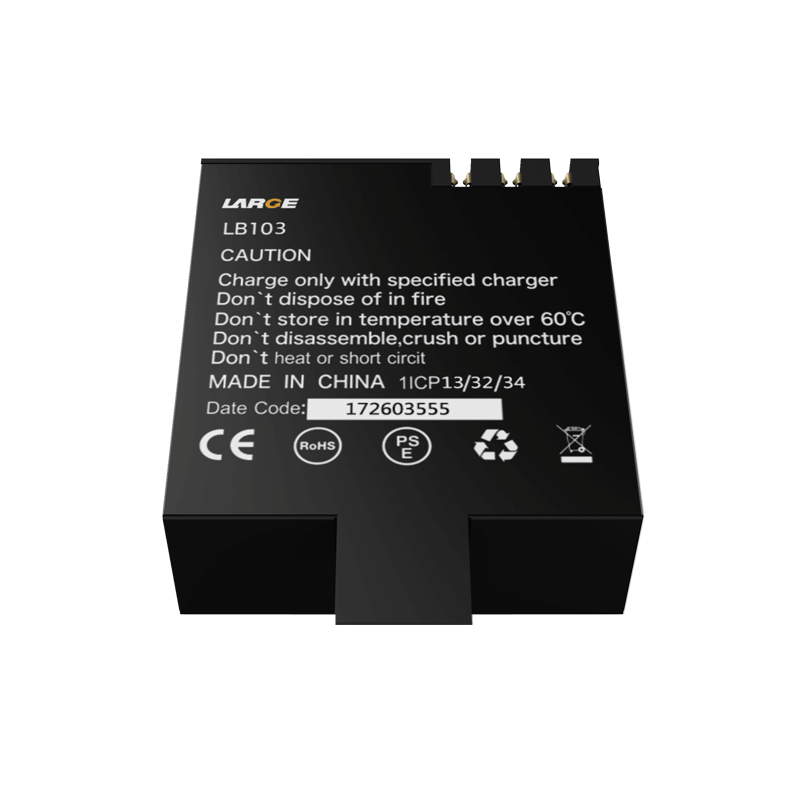

3.7V 1200mAh Lithium Polymer Battery for Sports Camera

Product Detail

Product number: 04DQ0367-02

Cell model:1203030/3.7V/1200mAh

Battery specification: 1203030-1S1P/3.7V/1200mAh

Nominal voltage:3.7V

Nominal capacity:1200mAh

Charging voltage: 4.2V

Charging current: ≤1.2A

Discharging current: 1.2A

Instant discharging current: 1.2A

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 20g

Product dimension: 12.9*34*32mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45 ℃

Temperature protection: /

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: sports camera, motion DV

*
*
*
