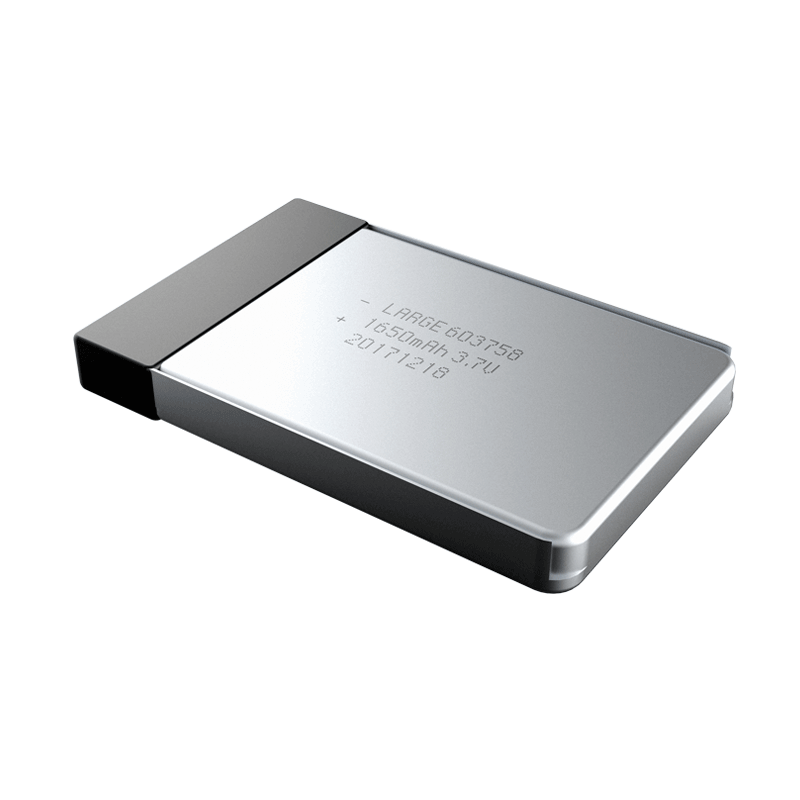

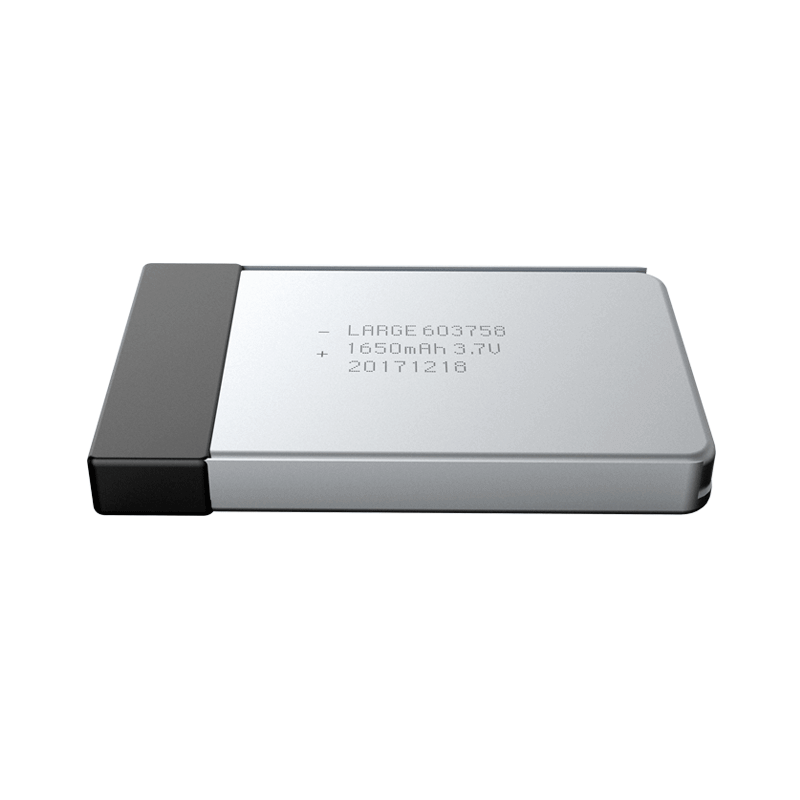

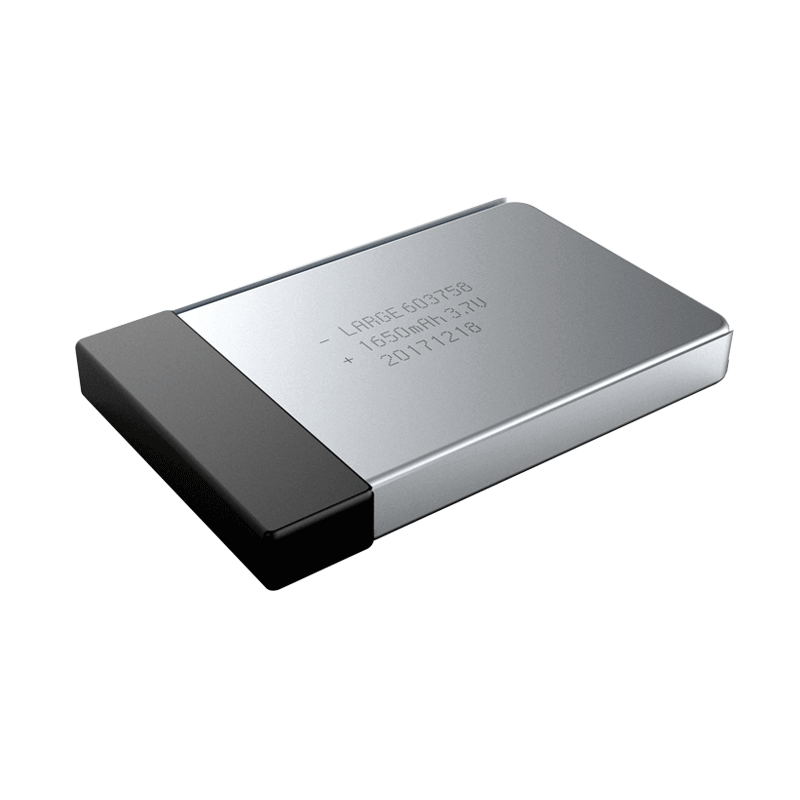

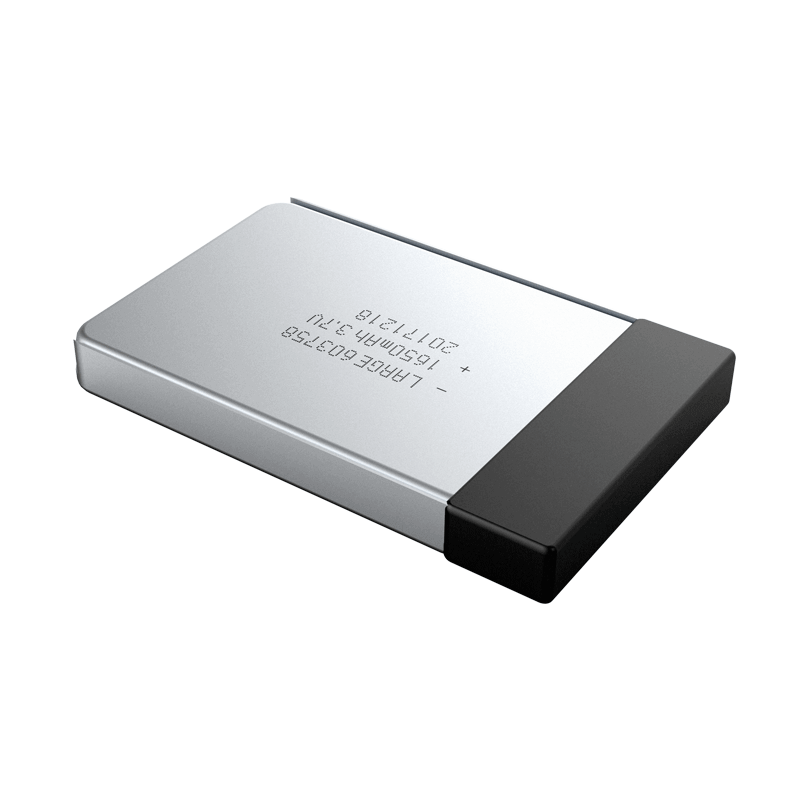

Lithium Polymer Battery 3.7V 1650mAh for Exploration and Surveying

Product Detail

Product number: 03EQ057-01

Cell model:LA603758/3.7V/1650mAh

Battery specification: LA603758-1S1P/3.7V/1650mAh

Nominal voltage:3.7V

Nominal capacity:1650mAh

Charging voltage: 4.2V

Charging current: ≤0.3A

Discharging current: 0.3A

Instant discharging current: 1.65A

End-off voltage: 3V

Internal resistance: ≤180m?

Battery weight: 30g

Product dimension: 58*37*6mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 60℃±5℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: special application field, detecting instrument, etc.


*
*
*
