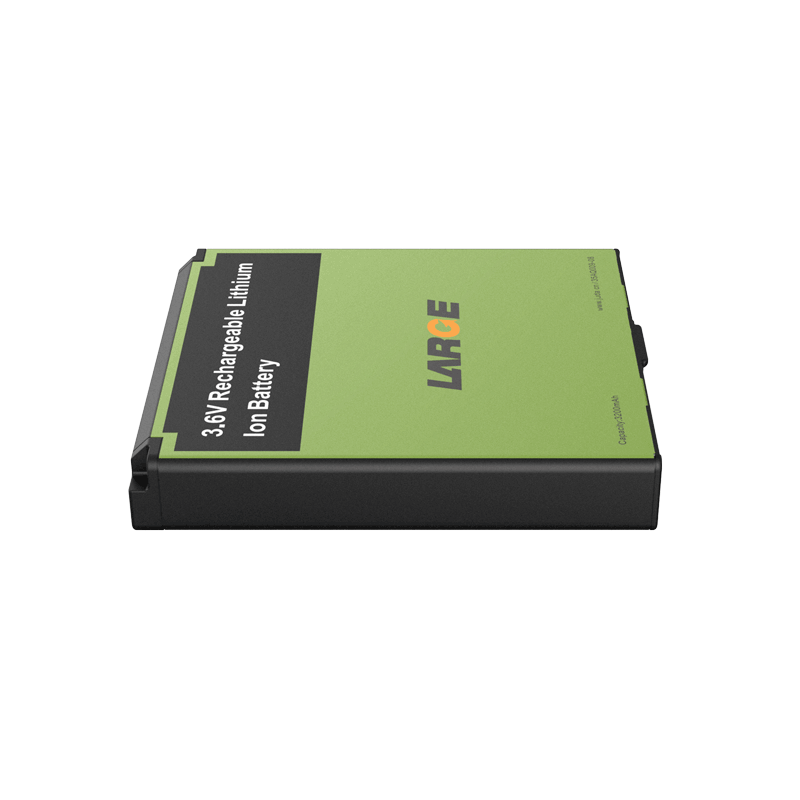

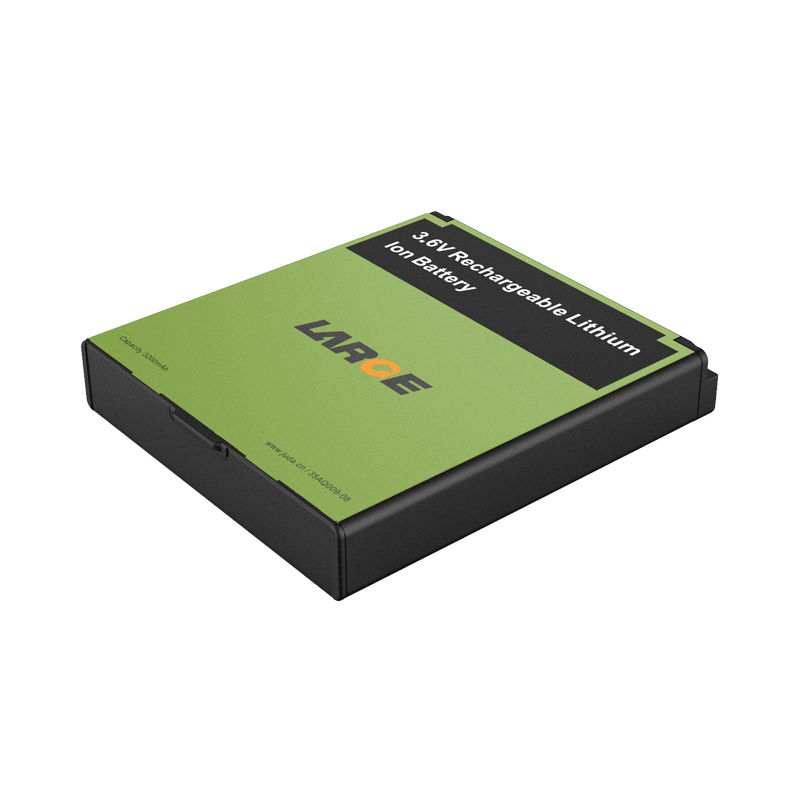

3.6V 3200mAh Explosion-proof Li-Polymer Battery Ternary Battery for Handheld Device

3.6V 3200mAh Explosion-proof Li-Polymer Battery Ternary Battery for Handheld Device
3.6V 3200mAh Explosion-proof Li-Polymer Battery Ternary Battery for Handheld Device
3.6V 3200mAh Explosion-proof Li-Polymer Battery Ternary Battery for Handheld Device
3.6V 3200mAh Explosion-proof Li-Polymer Battery Ternary Battery for Handheld Device

Product Detail

Product number: 35AQ009-08

Cell model:LA505357FB/1600mAh/3.6V

Battery specification: LA505357FB-1S2P/3200mAh/3.6V

Nominal voltage:3.6V

Nominal capacity:3200mAh

Charging voltage: 4.2V

Charging current: ≤0.64A

Discharging current: 1.6A

Instant discharging current: 3.2A

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 70g

Product dimension: 63*56*10.8(±0.2mm)

Charging temperature:0~45℃

Discharging temperature: -10~55 ℃

Storage temperature: -20℃~25℃

Battery case: plastic package for steel structure, decal for the surface

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: oil station, gas station, mining, etc.


Product features

1. Low self-discharge.

2. It has intelligent voltmeter with SMBus communication.

3. The battery pack has good security and large capacity.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

5. The product is in good condition when used in special occasions.

6. Product design refer to GB3836 / Exib iiB T4





*
*
*
