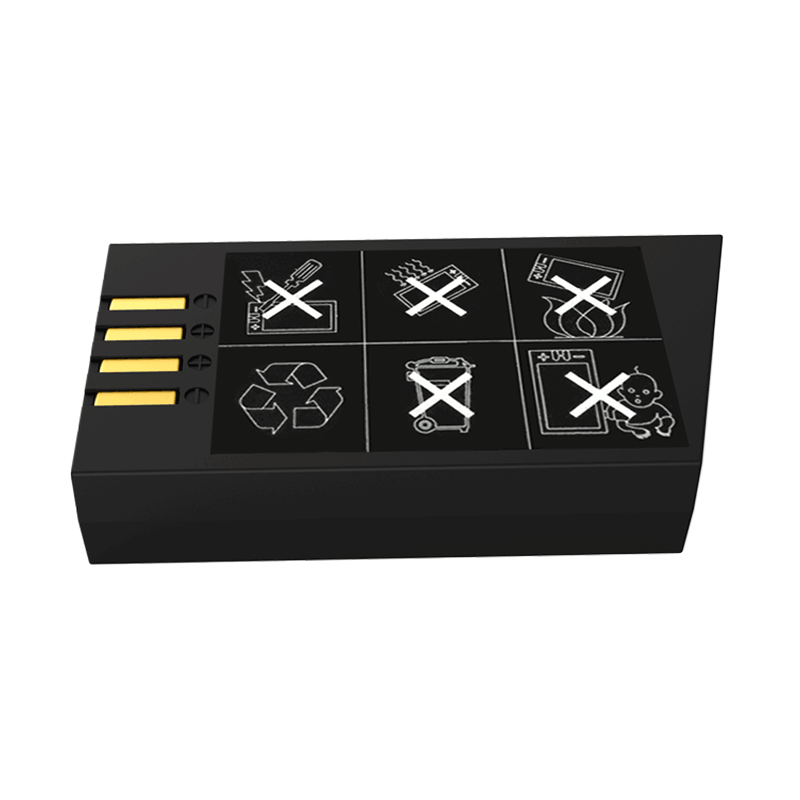

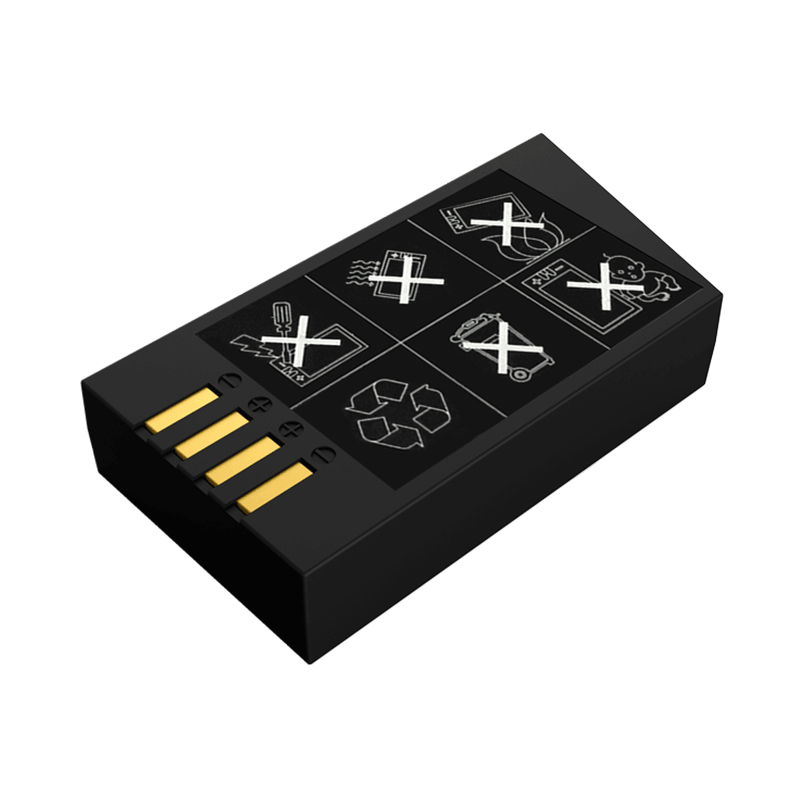

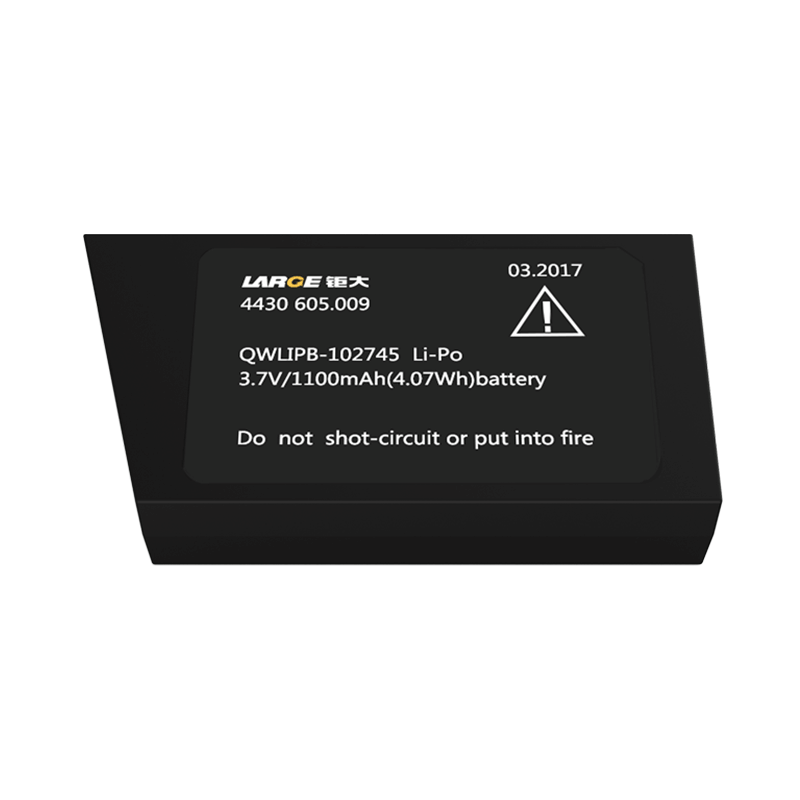

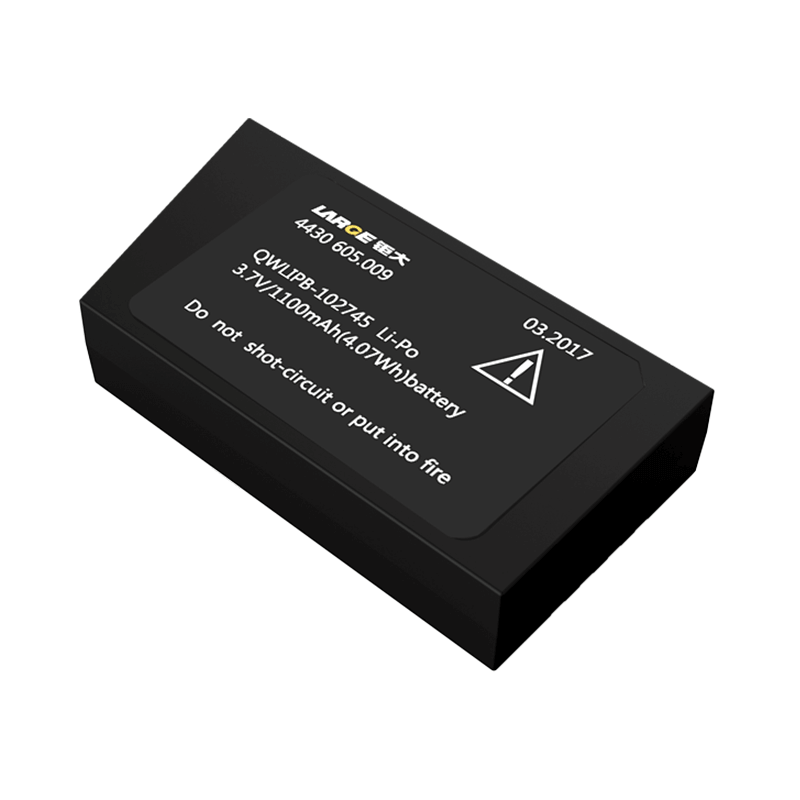

Custom Lithium Ion Battery Pack

3.7V 1100mAh Lithium Polymer Battery for Medical Pipettor

  • Model number:01WQ0024-02

  • Nominal voltage:3.7V

  • Nominal capacity:1100mAh

  • Battery cell:852642/3.7V/1100mAh

  • Dimension:11*29.5*49.5mm(Max)

  • Application:POS machine, mobile printing

Product Detail

Product number: 01WQ0024-02

Cell model:852642/3.7V/1100mAh

Battery specification: 852642-1S1P/3.7V/1100mAh

Nominal voltage:3.7V

Nominal capacity:1100mAh

Charging voltage: 4.2V

Charging current: ≤1.1A

Discharging current: 0.22A

Instant discharging current: 1.1A

End-off voltage: 3.0V

Internal resistance: ≤130mΩ

Battery weight: 16g

Product dimension: 11*29.5*49.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: POS machine, mobile printing


*
*
*
