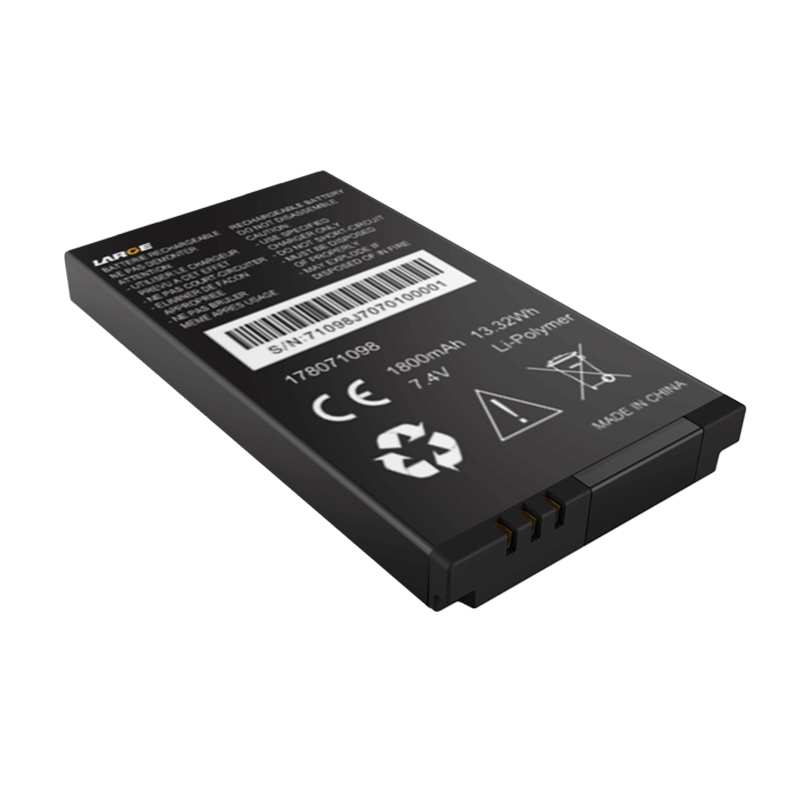

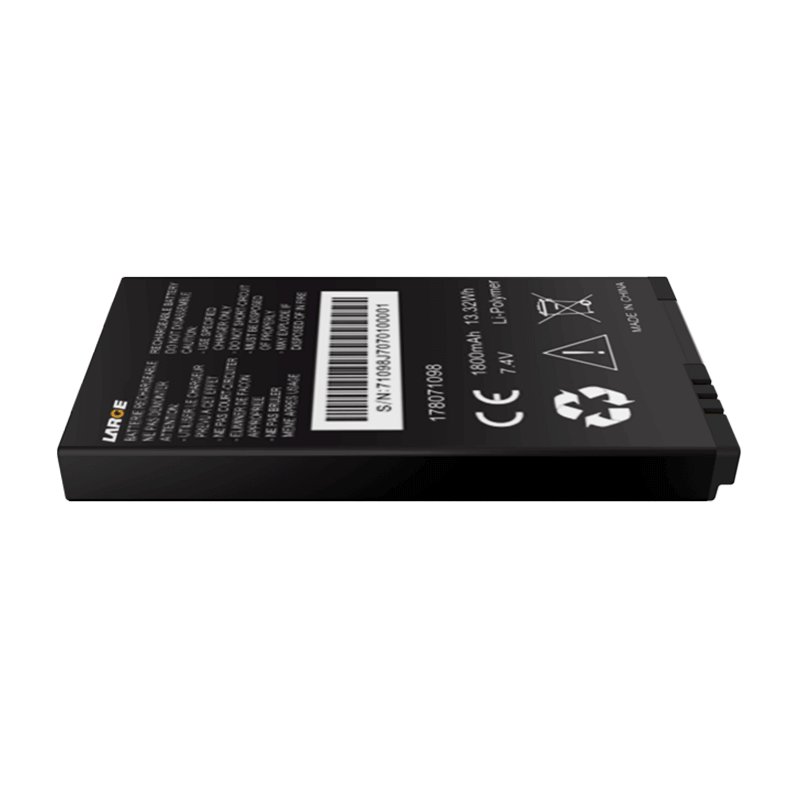

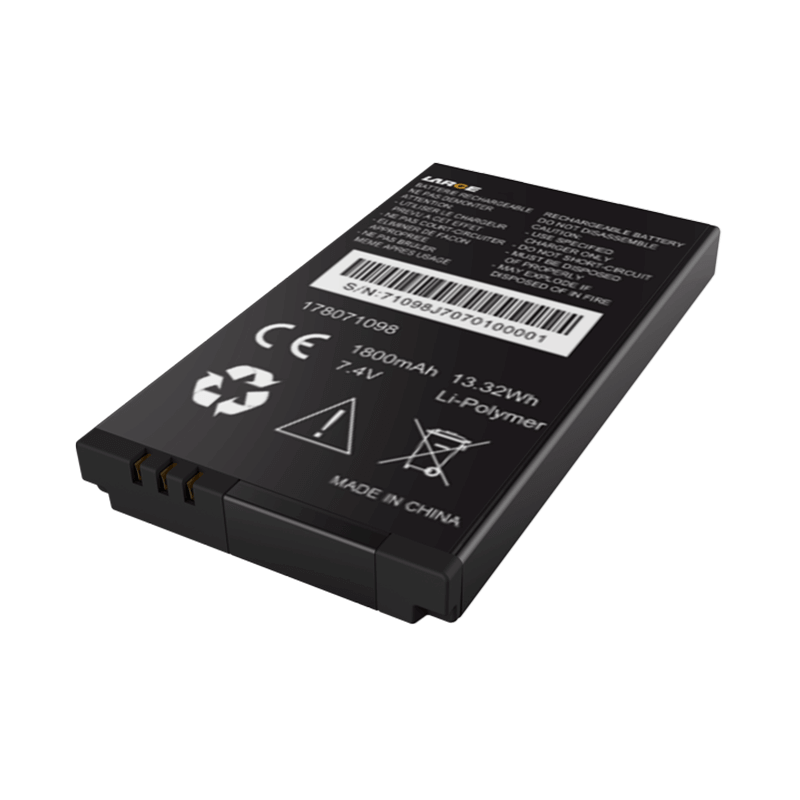

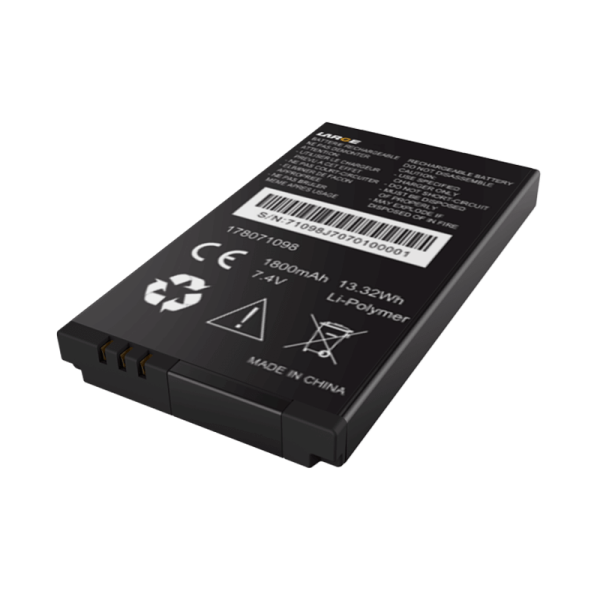

7.4V 1800mAh Lithium Polymer Battery for POS Machine

Product Detail

Product number: 22AQ131-01

Cell model:404785/1800mAh/3.7V

Battery specification: 404785/2S1P/1800mAh/7.4V (plastic frame)

Nominal voltage:7.4V

Nominal capacity:2600mAh

Charging voltage: 8.4V

Charging current: ≤1800mA

Discharging current: ≤5000mA

Instant discharging current: 9.0A for 10mS

End-off voltage: 6.0V

Internal resistance: ≤250mΩ

Battery weight: about 89g

Product dimension: 90*50.2*9 mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: plastic frame

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, equalization circuit, etc.

Application field: POS machine

*
*
*
