Custom Lithium Ion Battery Pack

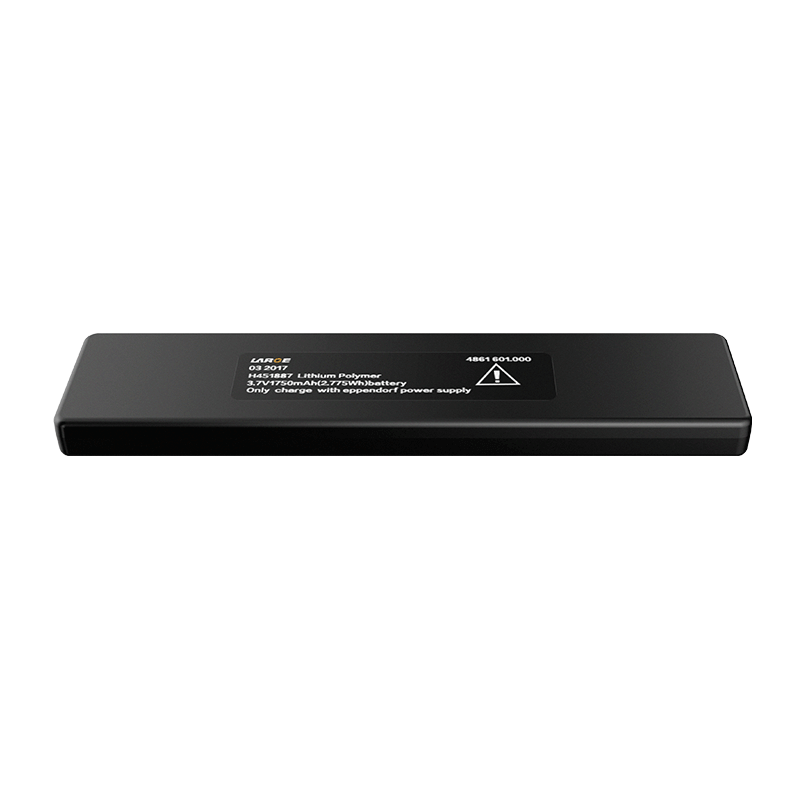

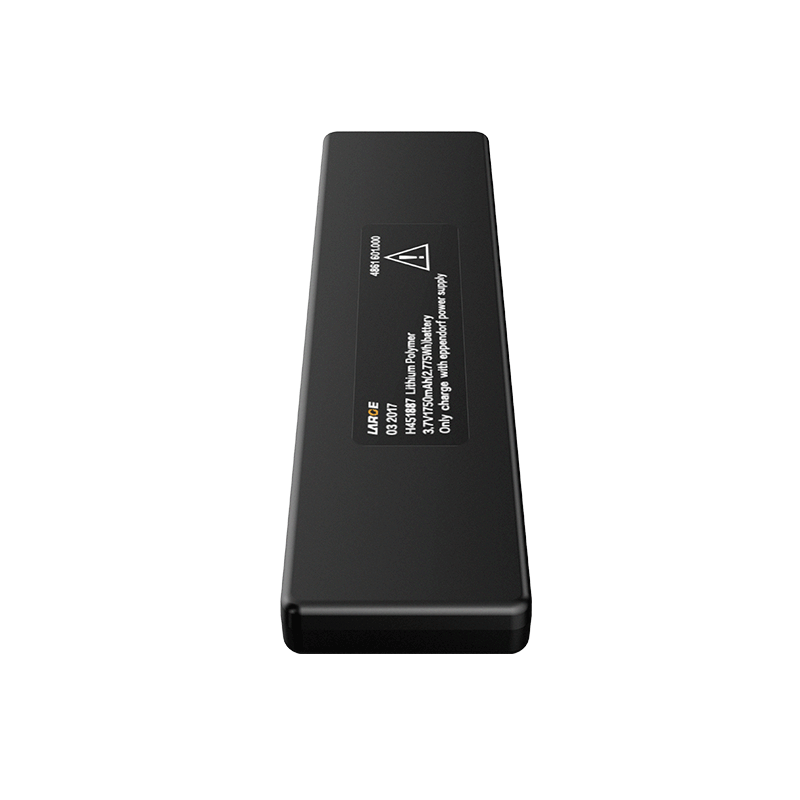

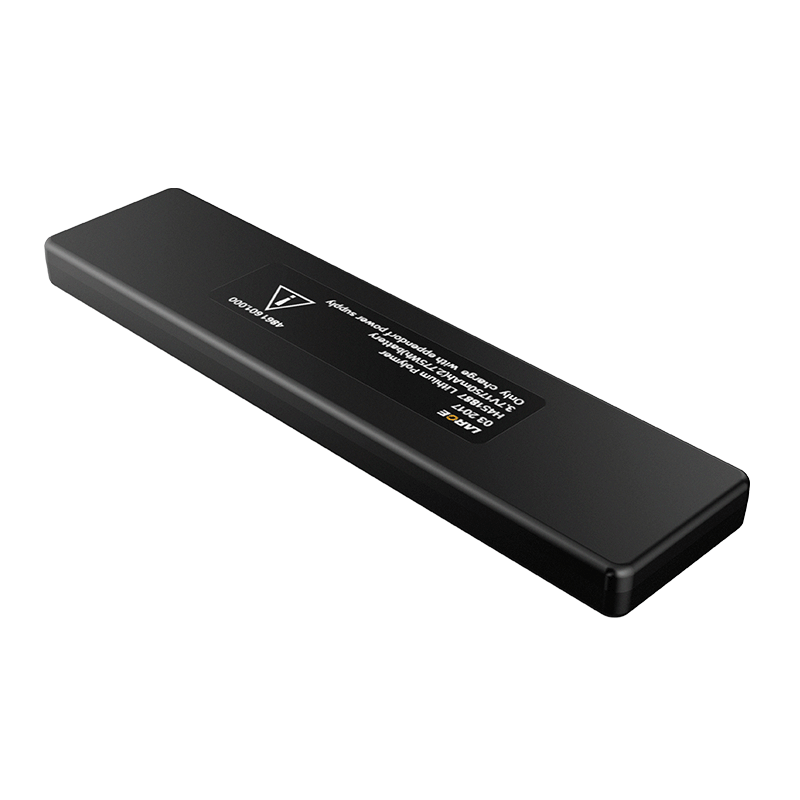

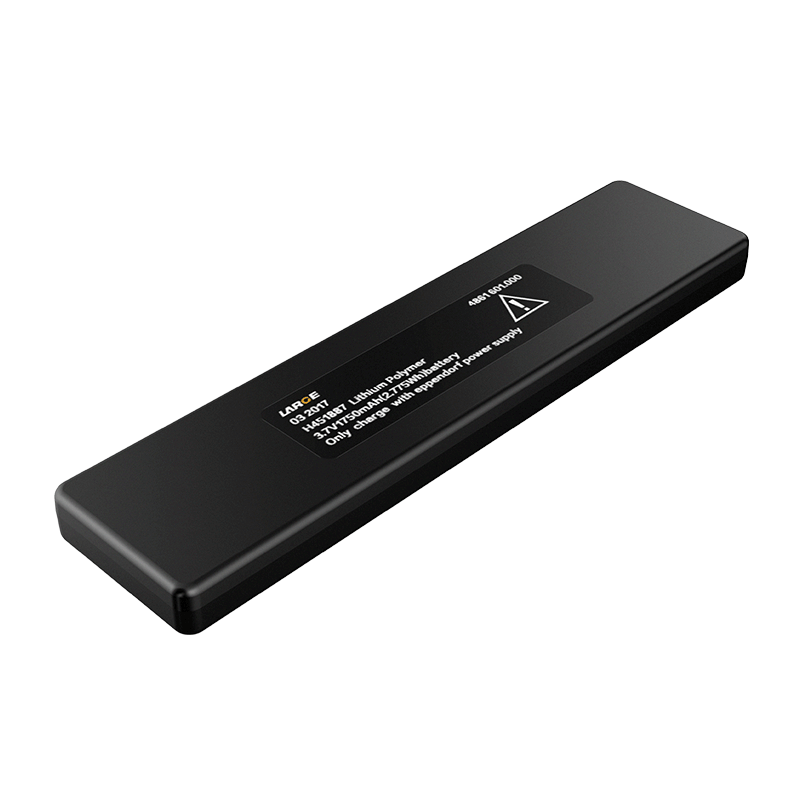

3.7V 750mAh Lithium Polymer Battery for Medical Pipettor

  • Model number:01WQ0024-03

  • Nominal voltage:3.7V

  • Nominal capacity:750mAh

  • Battery cell:401887/3.7V/750mAh

  • Dimension:6*22*91mm(Max)

  • Application:POS machine, mobile printing

Product Detail

Product number: 01WQ0024-03

Cell model:401887/3.7V/750mAh

Battery specification: 401887-1S1P/3.7V/750mAh

Nominal voltage:3.7V

Nominal capacity:750mAh

Charging voltage: 4.2V

Charging current: ≤0.75A

Discharging current: 0.15A

Instant discharging current: 0.75A

End-off voltage: 3.0V

Internal resistance: ≤130mΩ

Battery weight: 14g

Product dimension: 6*22*91mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: POS machine, mobile printing


*
*
*
