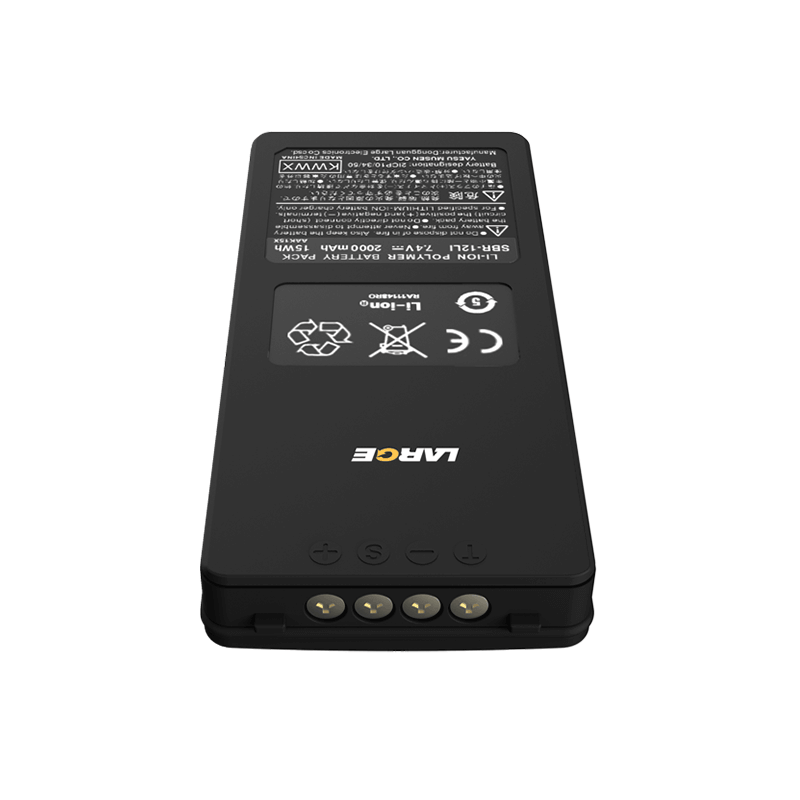

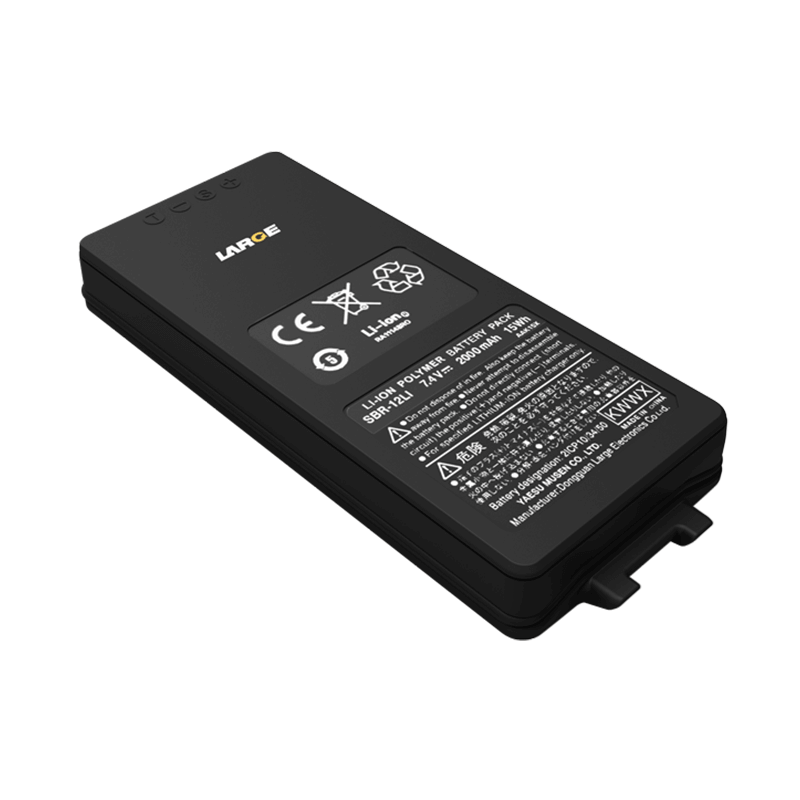

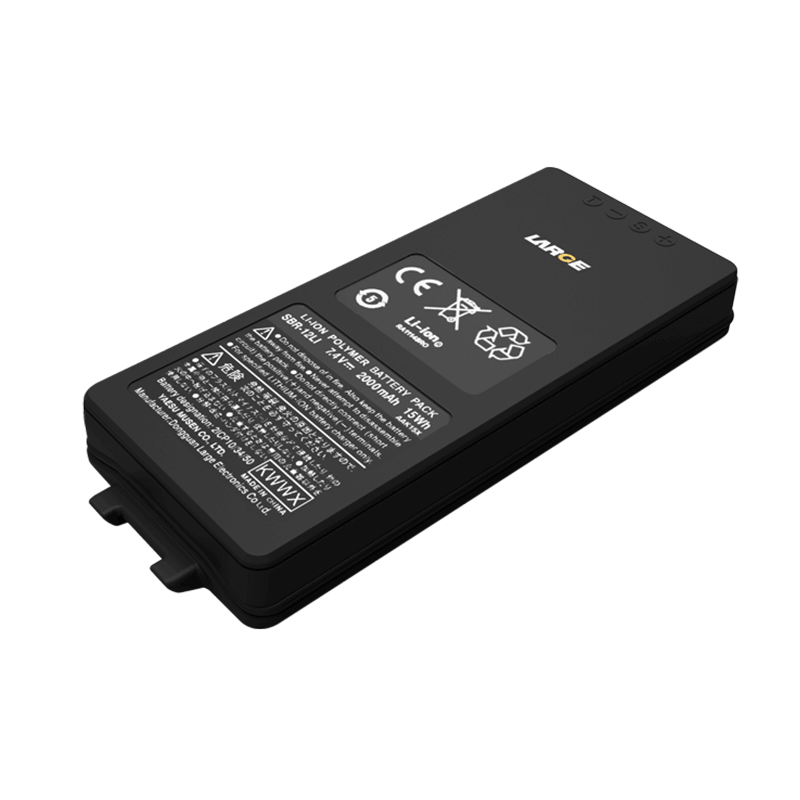

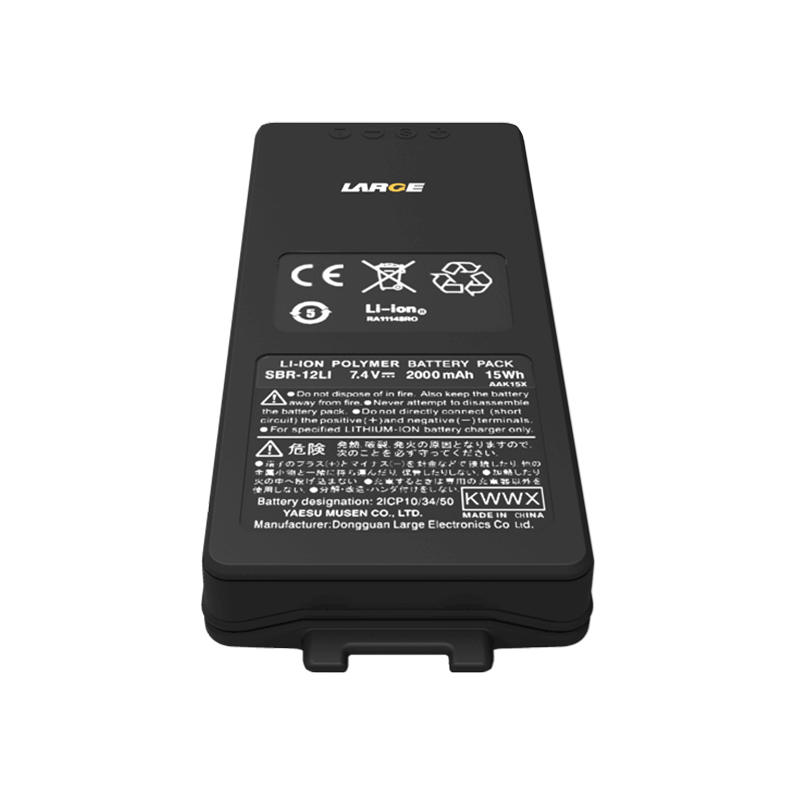

Custom Lithium Ion Battery Pack

103450 7.4V 2050mAh Polymer Battery for Intercom

  • Model number:02DQ0209-04

  • Nominal voltage:7.4V

  • Nominal capacity:2050mAh

  • Battery cell:103450/3.7V/2050mAh

  • Dimension:15.8*50.4*115.8mm(Max)

  • Application:interphone

Product Detail

Product number: 02DQ0209-04

Cell model:103450/3.7V/2050mAh

Battery specification: 103450-2S1P/7.4V/2050mAh

Nominal voltage:7.4V

Nominal capacity:2050mAh

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 1A

Instant discharging current: 3A

End-off voltage: 6.0V

Internal resistance: ≤260mΩ

Battery weight: 112g

Product dimension: 15.8*50.4*115.8mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45 ℃

Temperature protection: /

Battery case: engineering plastic ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: interphone

*
*
*
