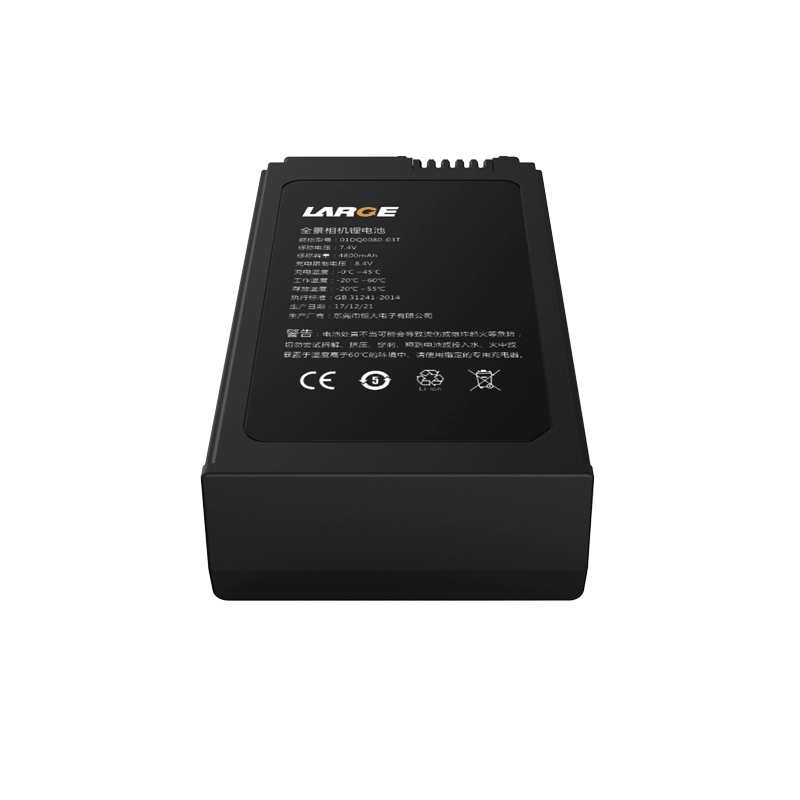

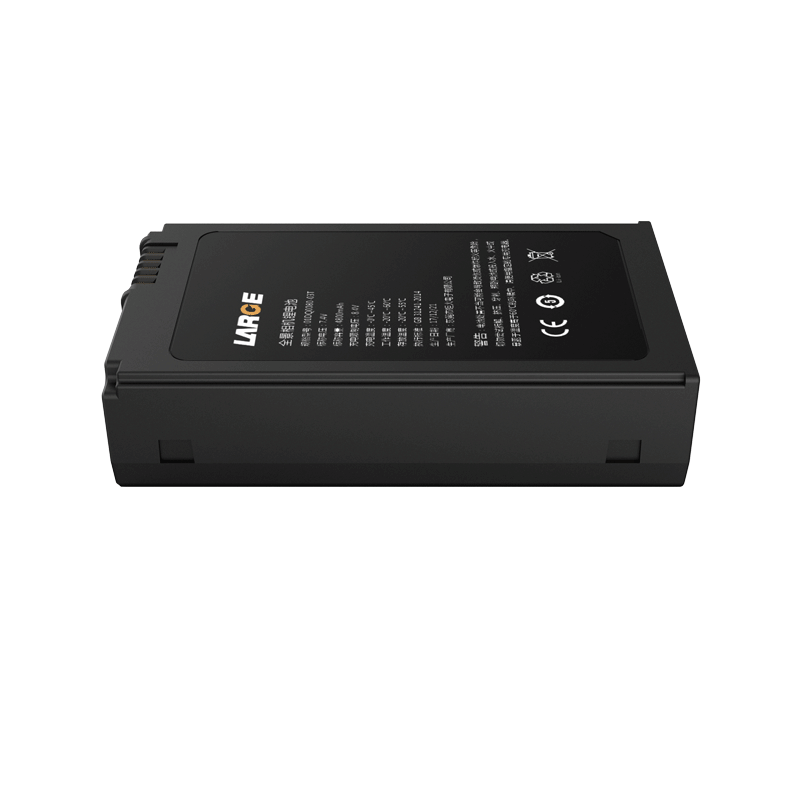

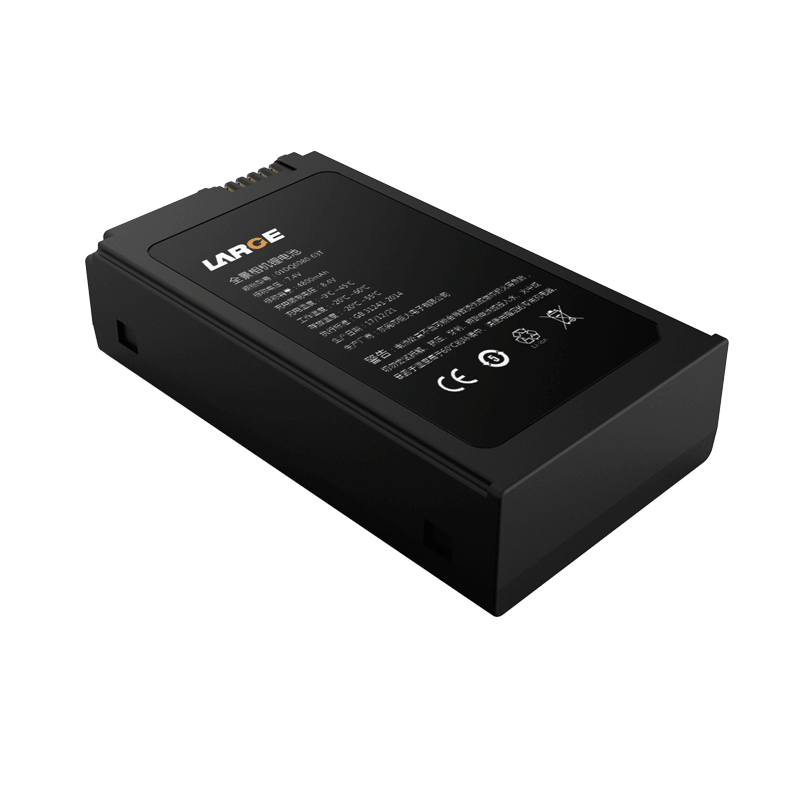

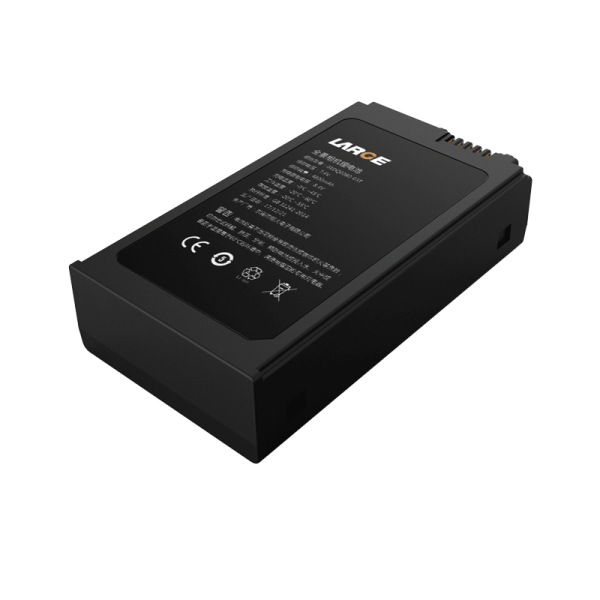

7.4V 4800mAh Lithium Polymer Battery Pack
Product Number:
01DQ0080-03T
Nominal voltage:
7.4V
Nominal capacity:
4800mAh
Battery Configuration:
464679-2S2P
Dimension:
91.2 × 50.2 × 22.2mm
Application:
Panoramic Camera
ABS+PC protective housing, TI smart communication management, Multi-protection balancing system
Product Overview
This battery is designed for panoramic cameras used in HD video recording, outdoor live streaming, and mobile shooting applications. With stable 5A output, smart communication management, and compact lightweight design, it supports long-duration continuous operation in demanding imaging environments.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01DQ0080-03T |
| Cell Model | 464679 / 3.7V / 2400mAh |
| Battery Configuration | 464679-2S2P |
| Nominal Voltage | 7.4V |
| Nominal Capacity | 4800mAh |
| Rated Energy | 35.52Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6V |
| Standard Charging Current | ≤5A |
| Standard Discharge Current | 5A |
| Internal Resistance | ≤160mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～35℃ |
| Dimensions | 91.2 × 50.2 × 22.2mm (Max) |
| Weight | 0.3Kg |
| Battery Case | ABS+PC |
| Protection System | Short circuit / overcharge / overdischarge / overcurrent / temperature protection / balancing |
Application Background
This battery solution is designed for panoramic cameras, widely used in high-definition video recording, outdoor live streaming, and long-duration mobile shooting scenarios.
During continuous recording and high-speed data transmission, panoramic cameras require stable power output, long battery life, and reliable structural safety.
Project Challenges
Continuous recording requires stable operation for 4–6 hours or longer
HD video capture and wireless transmission create instant high-load demands
Outdoor operating environments require wide temperature adaptability
Compact camera structures require strict size and weight control
Customized Battery Solution
High-rate discharge capability: supports continuous 5A discharge for stable camera operation
Smart communication management: TI management chip enables accurate data and temperature control
Multi-protection system: overcharge, overdischarge, overcurrent, short-circuit, and temperature protection
Compact lightweight structure: ABS+PC housing balances strength and portability
Application Results
Supports long-duration HD video recording
Stable output under high-load operation improves device reliability by approximately 20%+
Lightweight design enhances portability and user experience
Stable cycle performance extends overall equipment service life
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
