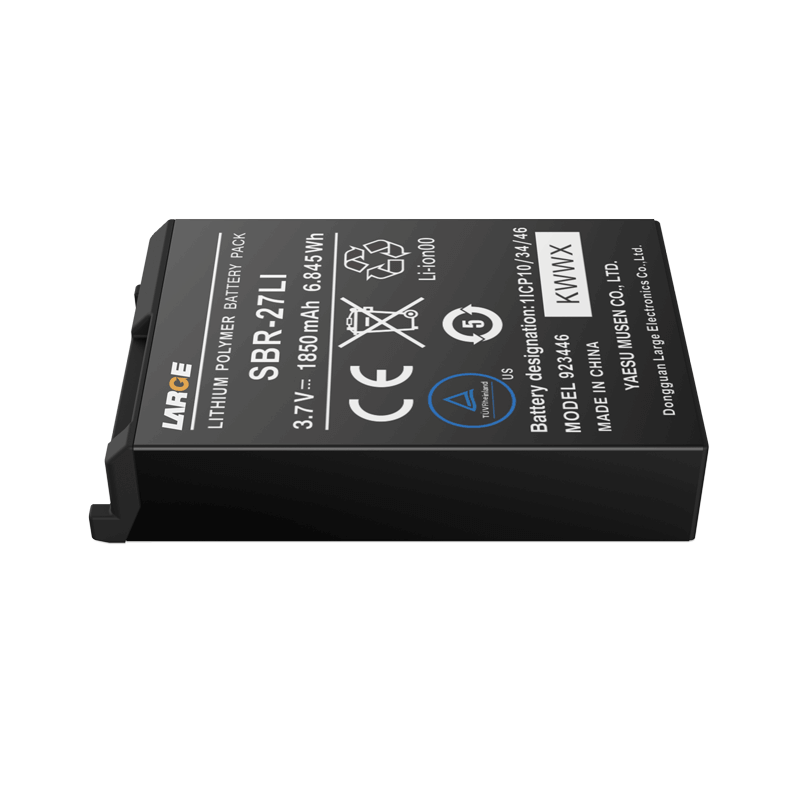

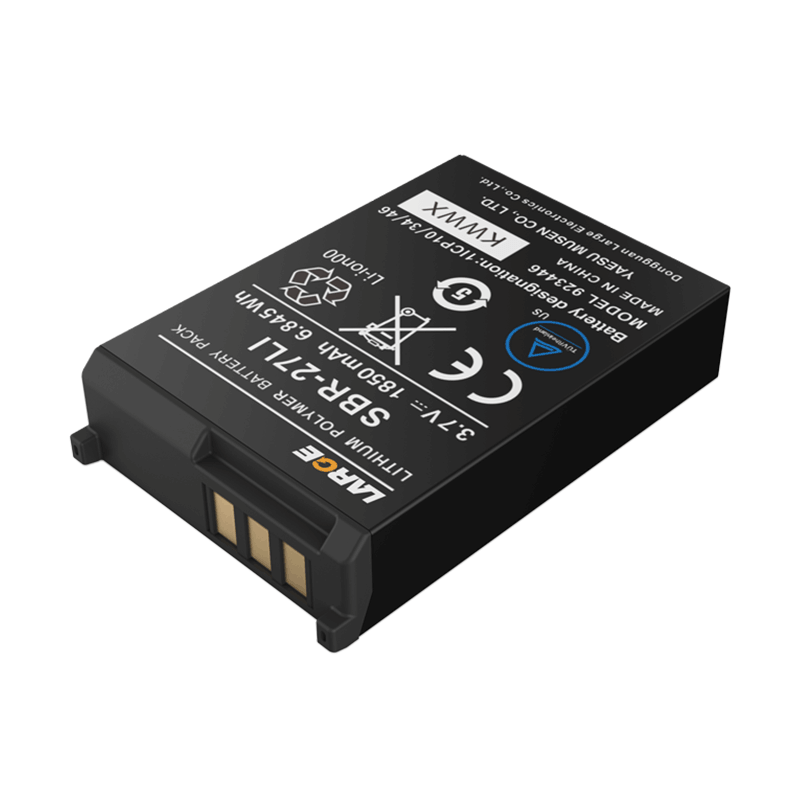

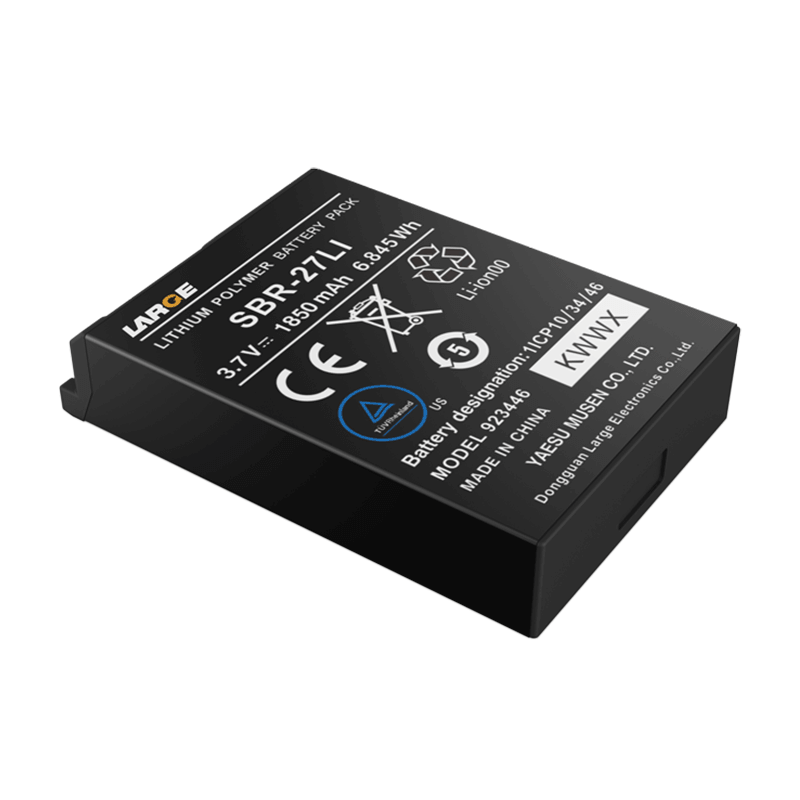

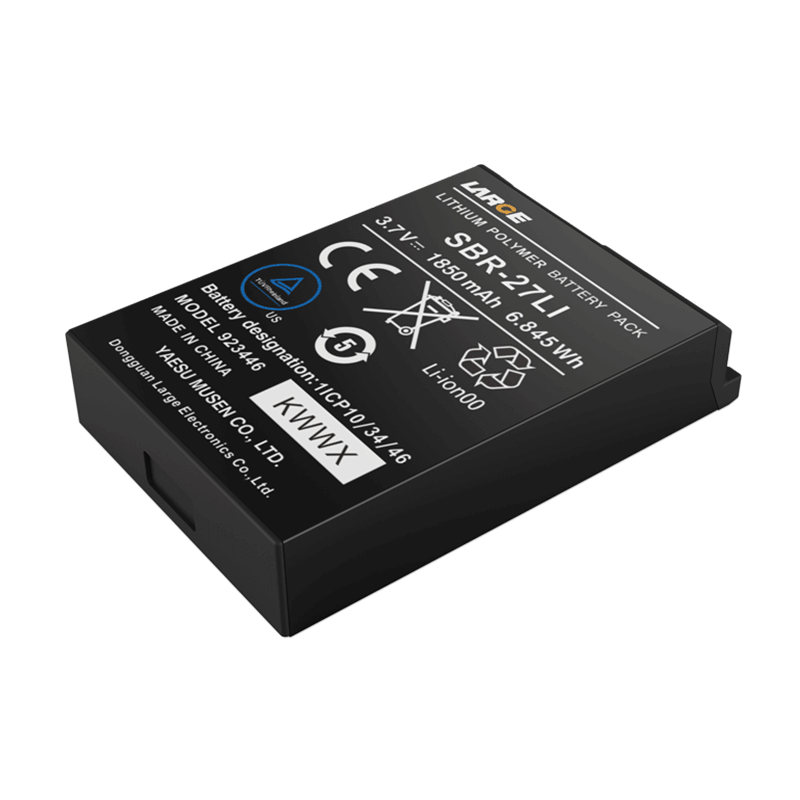

3.7V 1800mAh Lithium Polymer Battery for Interphone

Product Detail

Product number: 02DQ0209-01

Cell model:923446/3.7V/1800mAh

Battery specification: 923446-1S1P/3.7V/1800mAh

Nominal voltage:3.7V

Nominal capacity:1800mAh

Charging voltage: 4.2V

Charging current: ≤1.8A

Discharging current: 0.9A

Instant discharging current: 2.7A

End-off voltage: 3.0V

Internal resistance: ≤160mΩ

Battery weight: 35g

Product dimension: 11*36*53.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45 ℃

Temperature protection: /

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: interphone

*
*
*
