Custom Lithium Ion Battery Pack

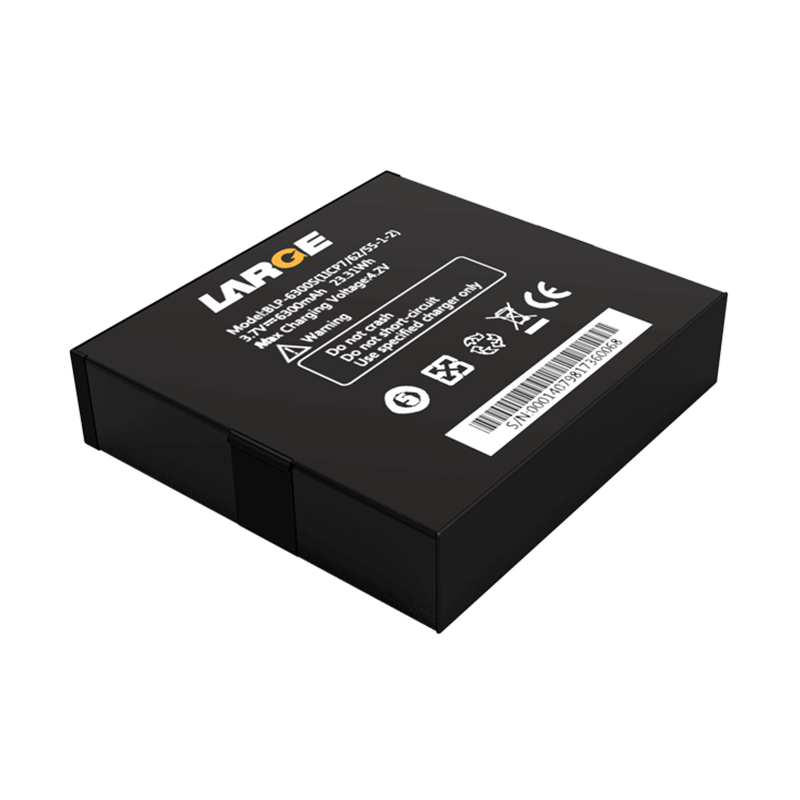

3.7V 6300mAh Lithium Polymer Battery for Surveying Instrument

  • Model number:05BQ673-25

  • Nominal voltage:3.7V

  • Nominal capacity:6300mAh

  • Battery cell:666255/3.7V/3150mAh

  • Dimension:14*63*66.5mm(Max)

  • Application:surveying and mapping

Product Detail

Product number: 05BQ673-25

Cell model:666255/3.7V/3150mAh

Battery specification: 666255-1S2P/3.7V/6300mAh

Nominal voltage:3.7V

Nominal capacity:6300mAh

Charging voltage: 4.2V

Charging current: ≤2.5A

Discharging current: 1.26A

Instant discharging current: 2.5A

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 100g

Product dimension: 14*63*66.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: surveying and mapping


*
*
*
