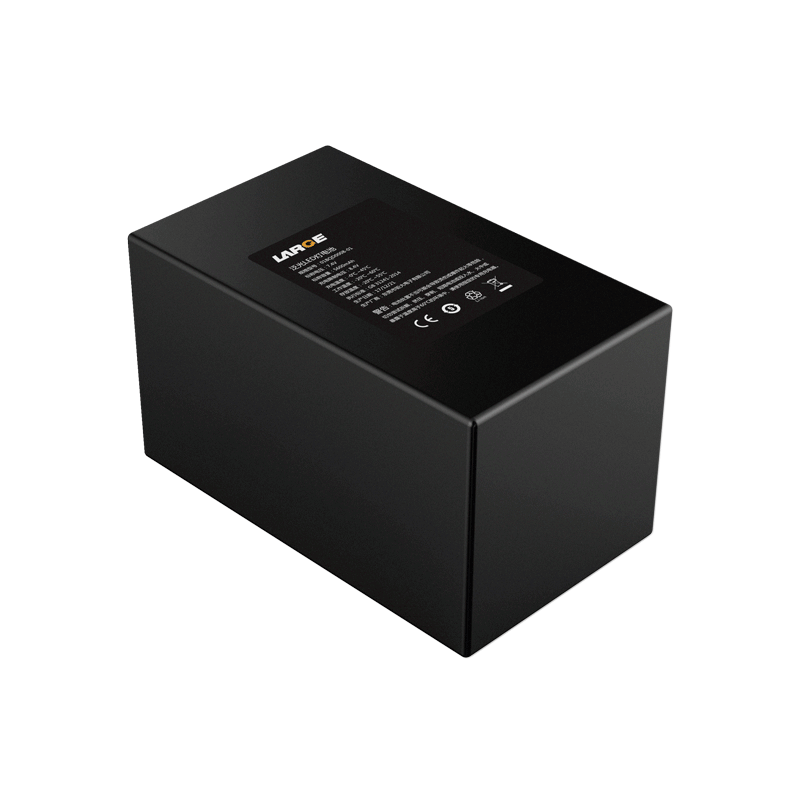

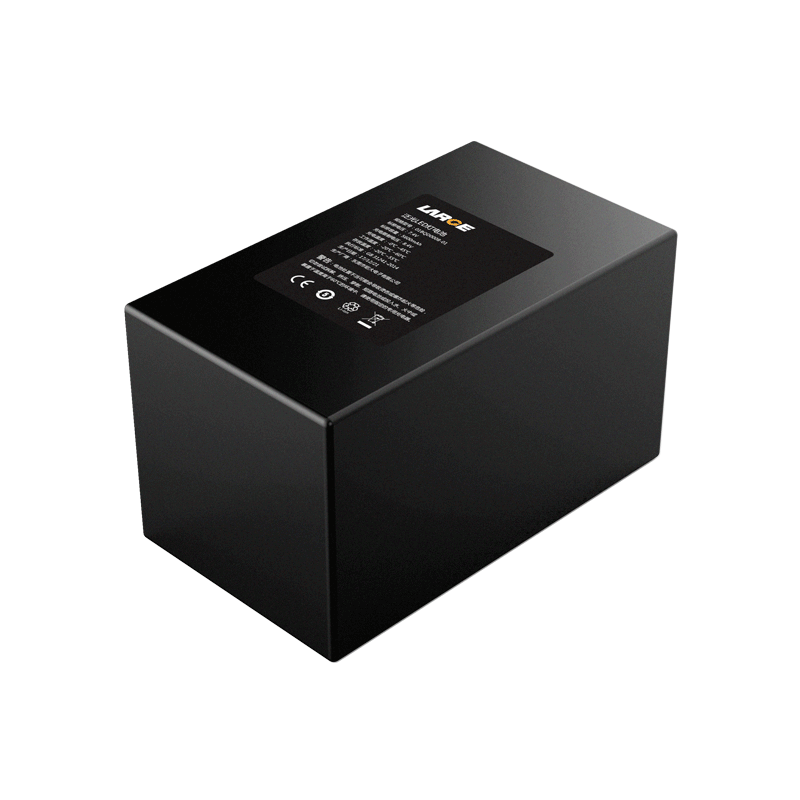

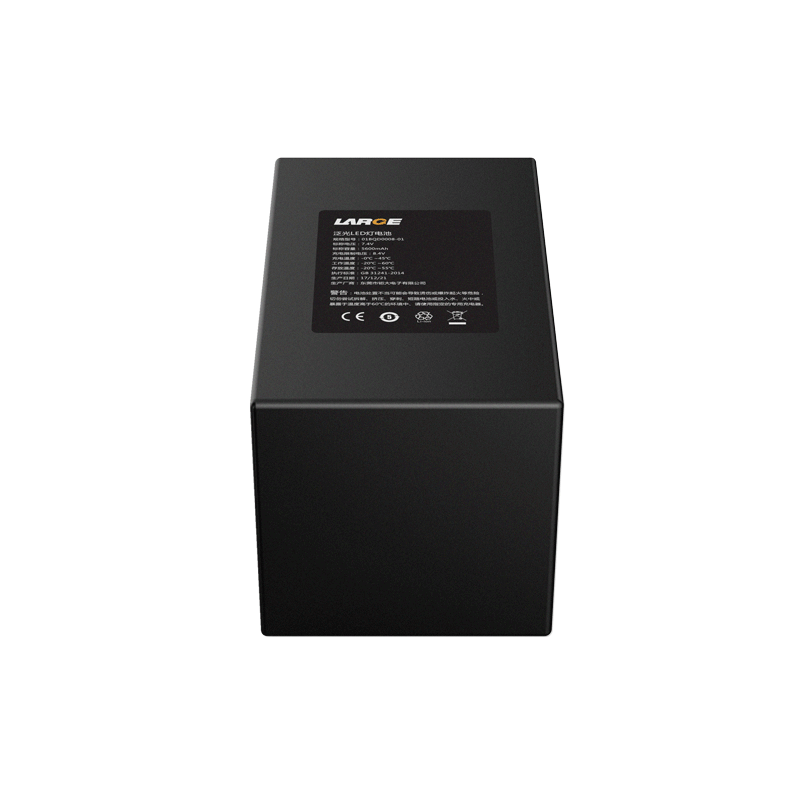

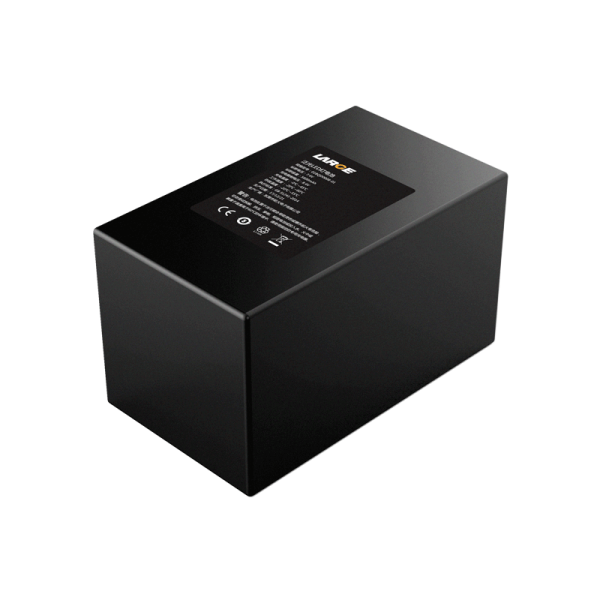

18650 7.4V 5.2Ah lithium ion battery Samsung battery for LED light

Product Detail

Product number: 01BQD0008-01

Cell model:18650/3.7V/2600mAh

Battery specification: 18650/2S2P/7.4V/5600mAh

Nominal voltage:7.4V

Nominal capacity:5600mAh

Charging voltage: 8.4V

Charging current: ≤2000mA

Discharging current: 2000mA

Instant discharging current: 3000mA

End-off voltage: 6.0V

Internal resistance: ≤250m?

Battery weight:180g

Product dimension: 68*40*39mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: LED light, testing equipment
