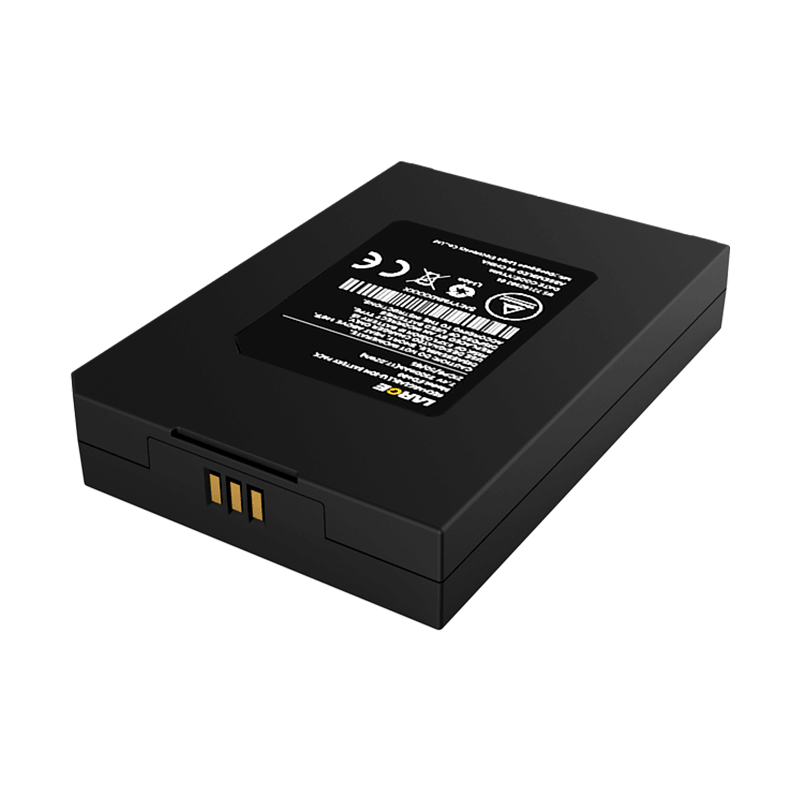

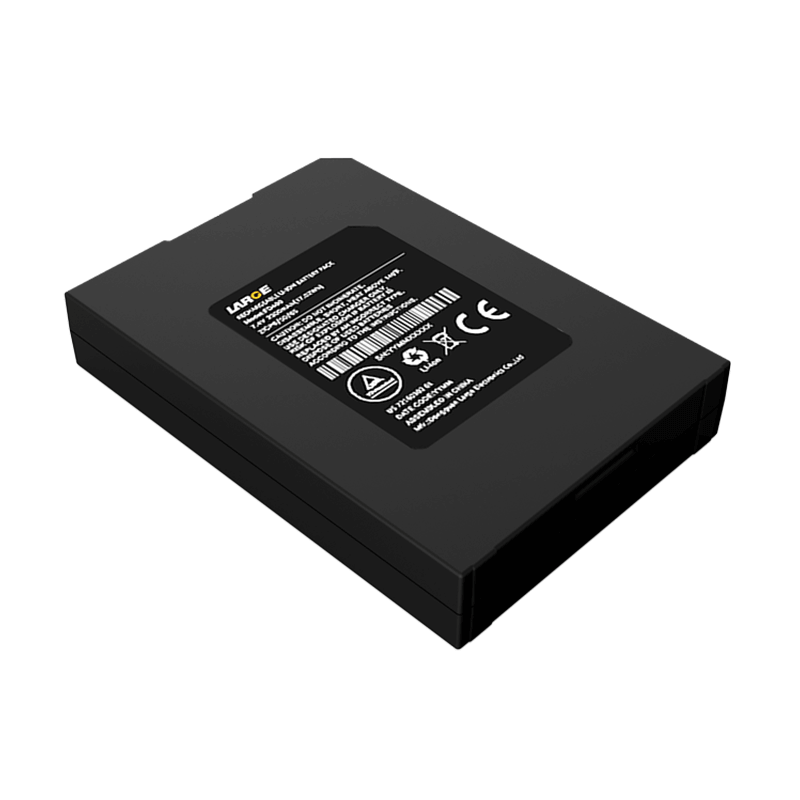

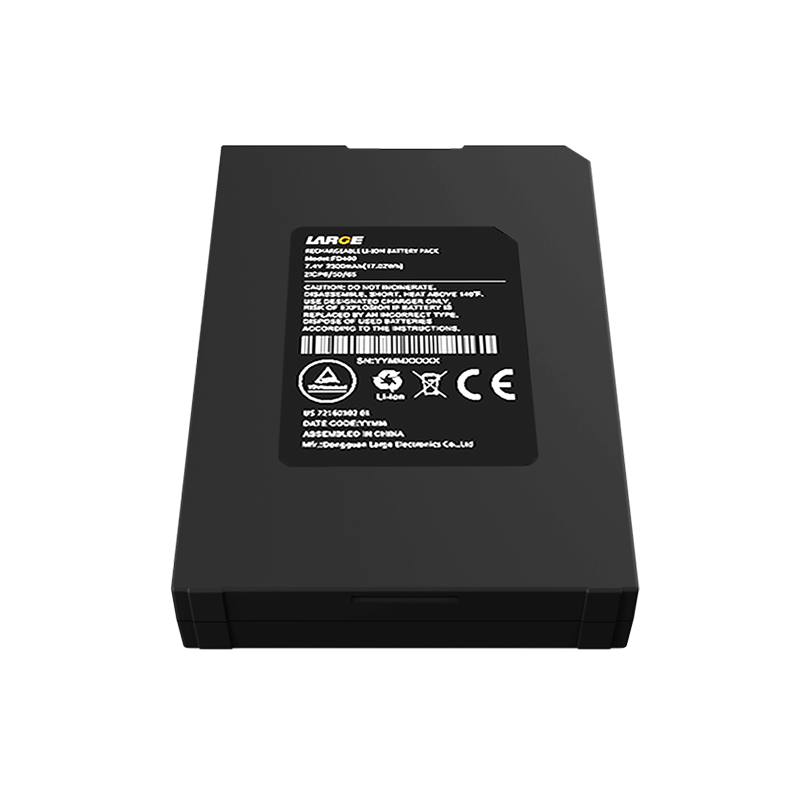

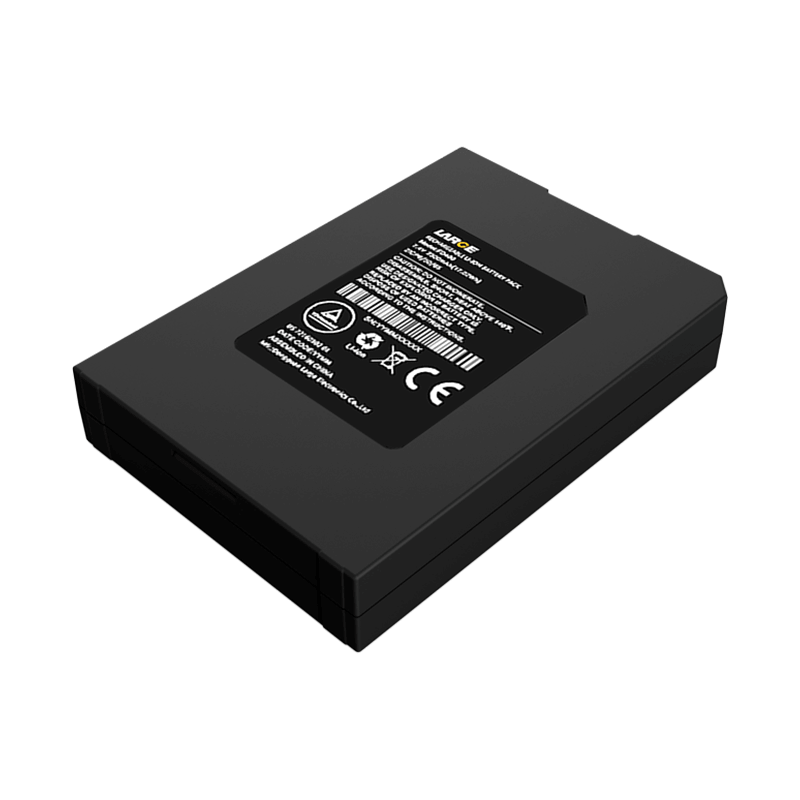

7.4V 2300mAh Lithium Polymer Battery for Mobile Printers

Product Detail

Product number: 04CQ028-03

Cell model:555065/3.7V/2300mAh

Battery specification: 555065-2S1P/7.4V/2300mAh

Nominal voltage:7.4V

Nominal capacity:2300mAh

Charging voltage: 8.4V

Charging current: ≤2.3A

Discharging current: 0.46A

Instant discharging current: 2.3A

End-off voltage: 6.0V

Internal resistance: ≤320mΩ

Battery weight: 85g

Product dimension: 13.2*52.2*73.15mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: POS machine, mobile printing

*
*
*
