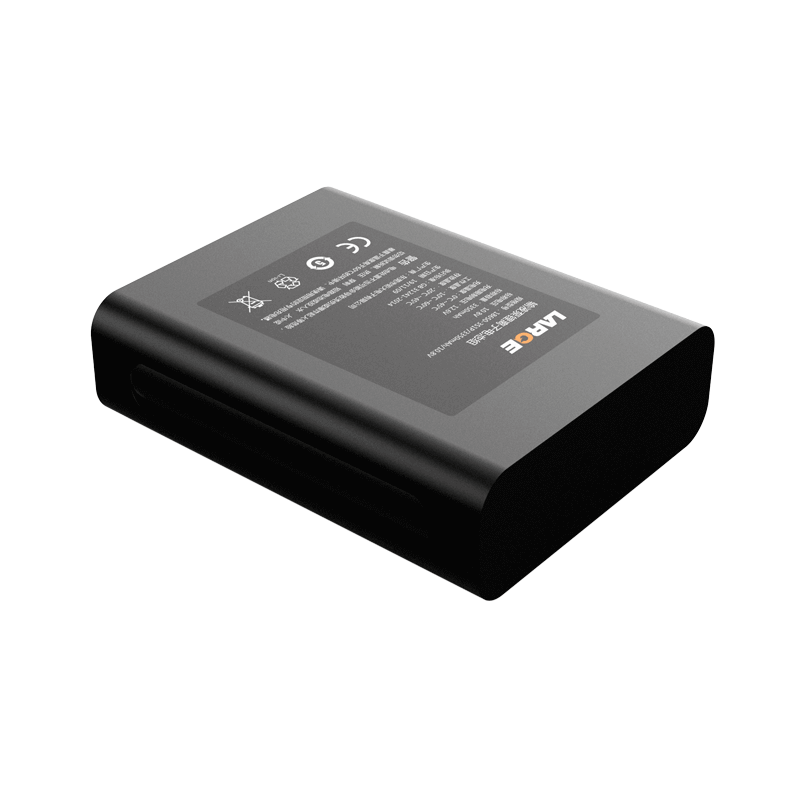

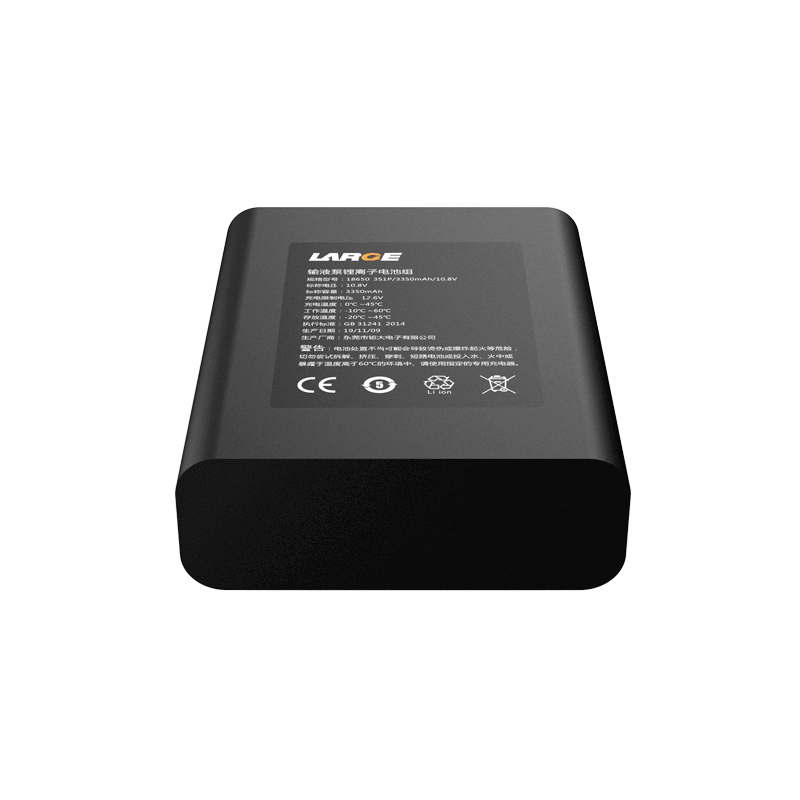

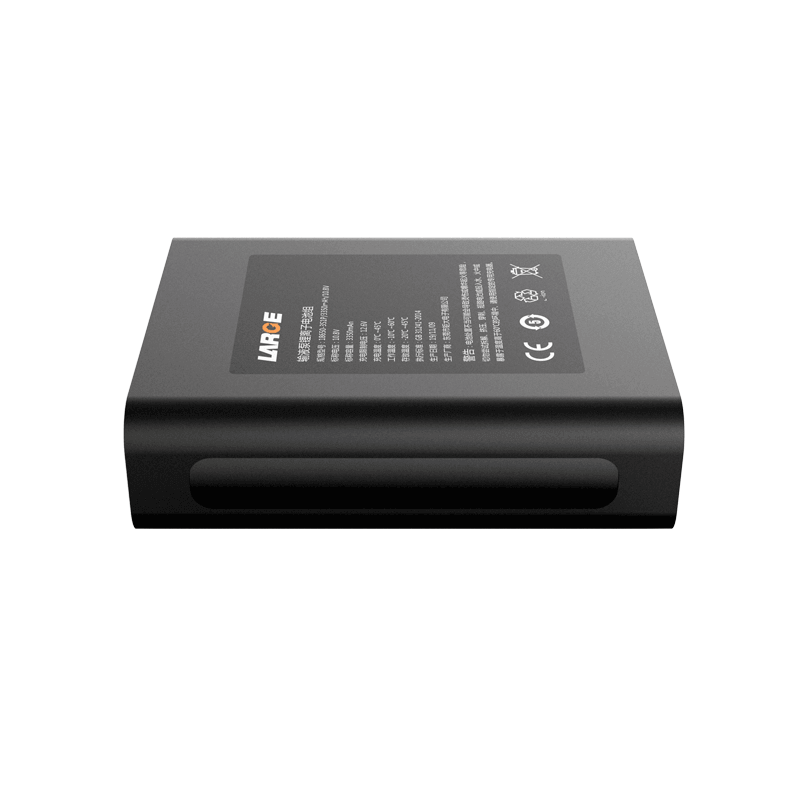

18650 10.8V 3350mAh Lithium Ion Battery Samsung Battery for Infusion Pump

Product Detail

Product number: 01WQ0021-03T

Cell model:IN18650-35E/3350mAh/3.6V-SDI

Battery specification: 18650-3S1P/3350mAh/10.8V

Nominal voltage:10.8V

Nominal capacity:3350mAh

Charging voltage: 12.6V

Charging current: 1700mA

Discharging current: 1700mA

End-off voltage: 8.25V

Internal resistance: ≤350mΩ

Battery weight: 200g

Product dimension: 70*56.5*20.0mm(Max)

Charging temperature:0~45℃

Discharging temperature: -10~60℃

Storage temperature: -20~45℃(<3 months)

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: medical device, infusion pump, injection pump

*
*
*
