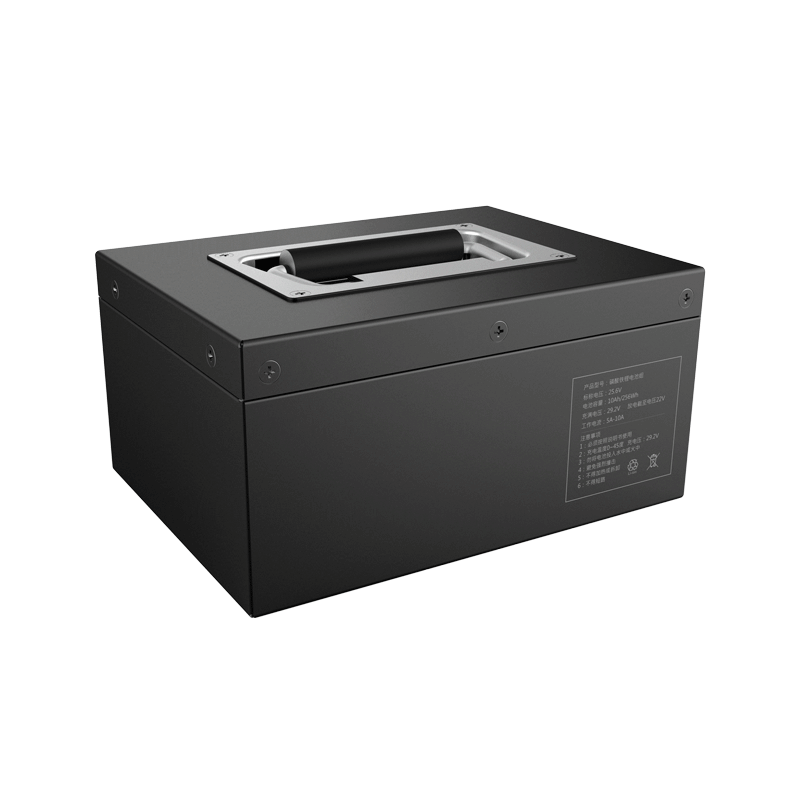

Custom Lithium Ion Battery Pack

26650 12V 12.8Ah LiFePO4 Battery for Missile Performance Test Equipment with SMBUS Communication Port

  • Model number:09AQ505-01

  • Nominal voltage:12.0V

  • Nominal capacity:12000mAh

  • Battery cell:26650/3.2V/3.2Ah

  • Dimension:200×150×100(Max)

  • Application:test equipment of missile performance

Product Detail

Product number: 09AQ505-01

Cell model:26650/3.2V/3.2Ah

Battery specification: 26650/4S4P/12V/12.8Ah

Nominal voltage:12V stable voltage

Nominal capacity:12Ah

Charging voltage: 220V

Charging current: ≤1A

Discharging current: 5A

Instant discharging current: 6A

End-off voltage: 12V stable voltage

Internal resistance: ≤100m?

Battery weight: 2.5kg

Product dimension: 200×150×100(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, temperature protection and equilibrium

Application field: test equipment of missile performance


Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Output under stable voltage: output 12V stable voltages by DC-DC electric circuit to assure the power requirement of precision equipment.

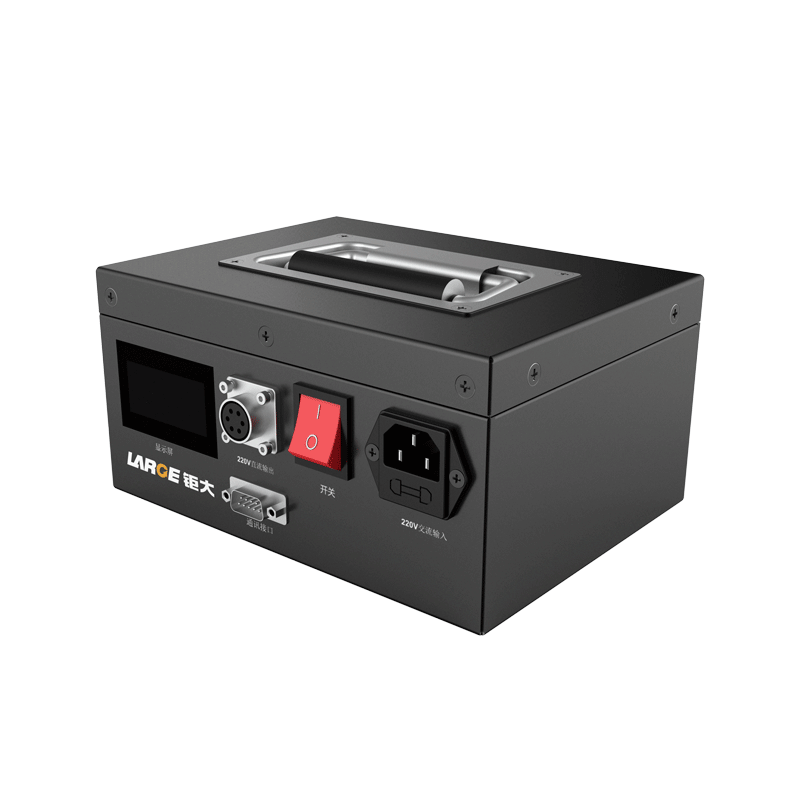

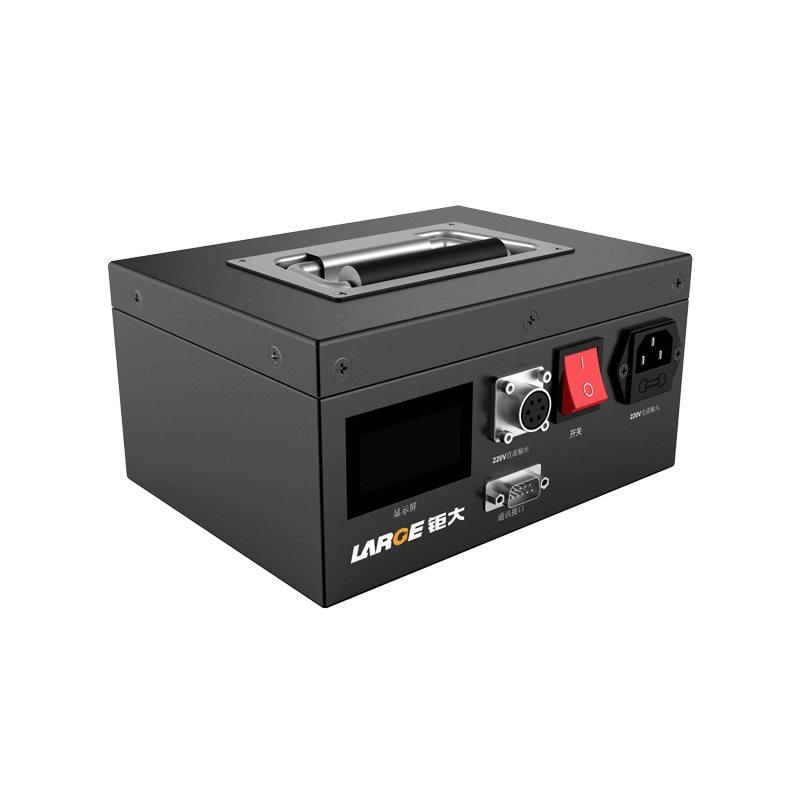

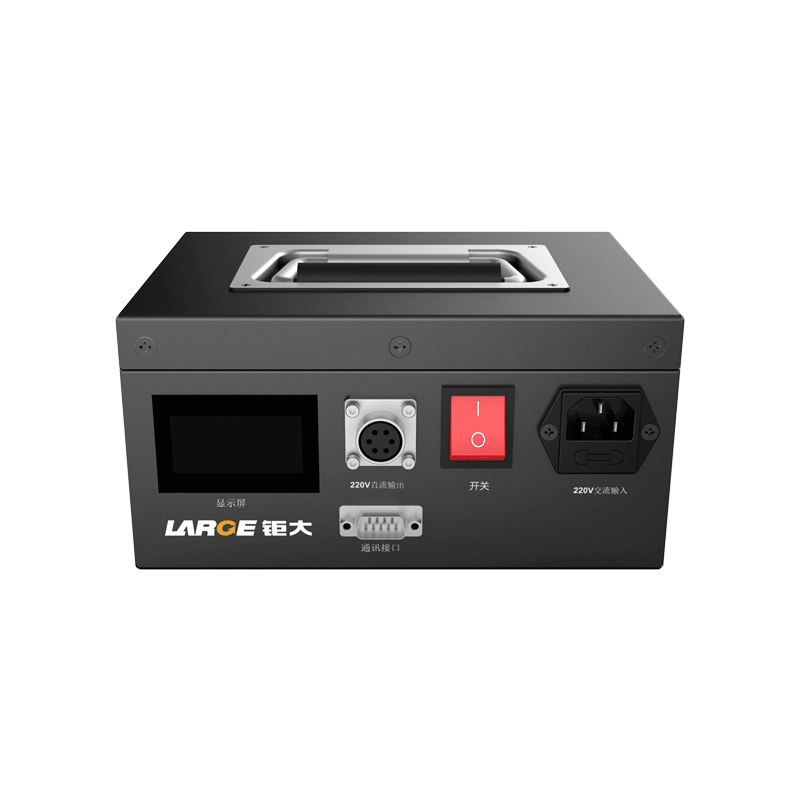

3. Reliable connection: apply aviation connector, which is efficient, safe and reliable.

4. AC Charging: there is AC-DC module inside the battery, which can transfer 220V AC current into DC current for charging.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
