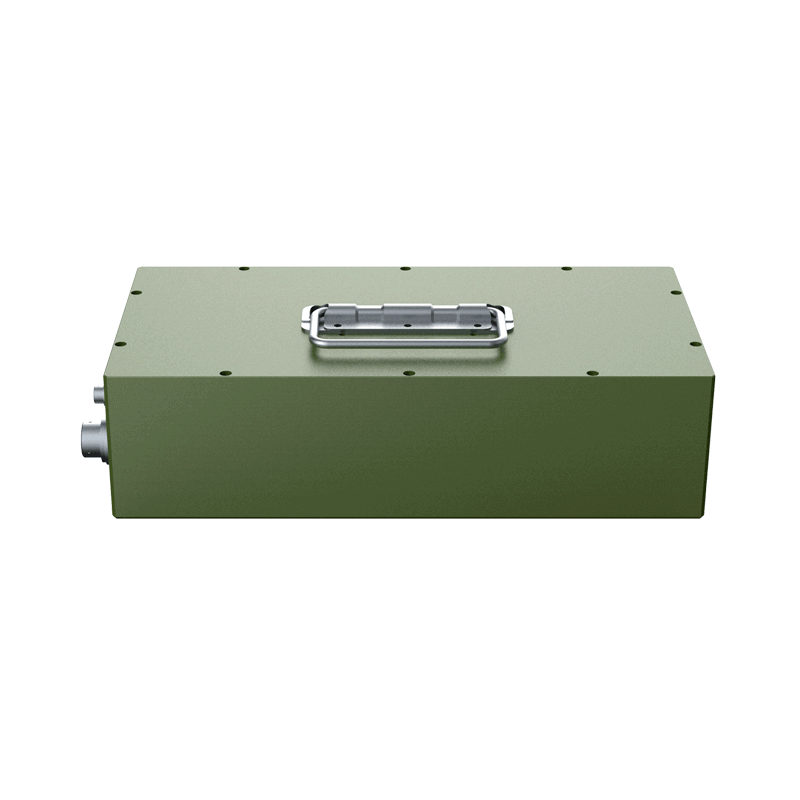

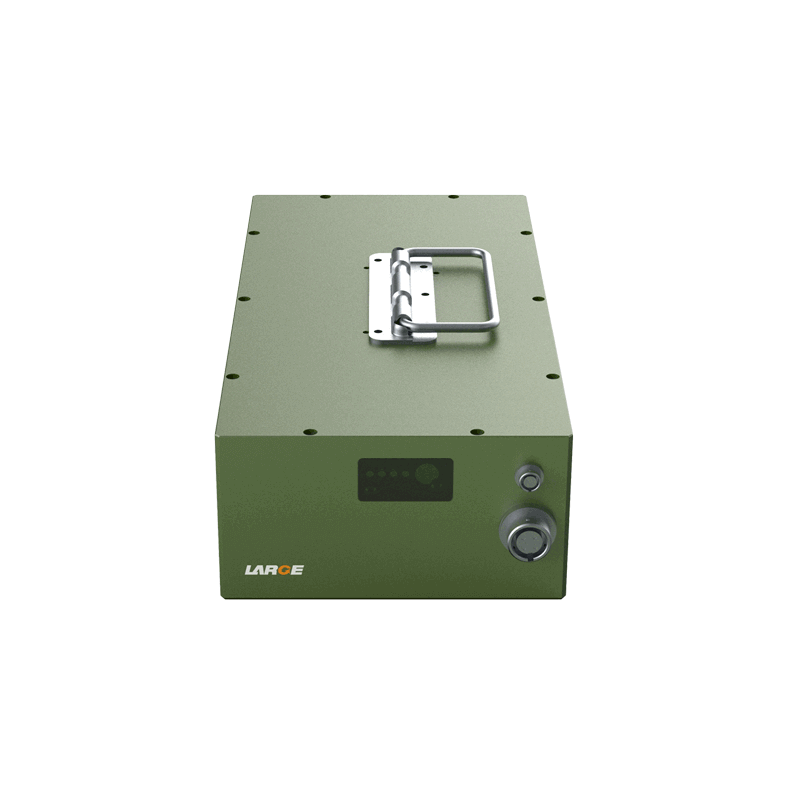

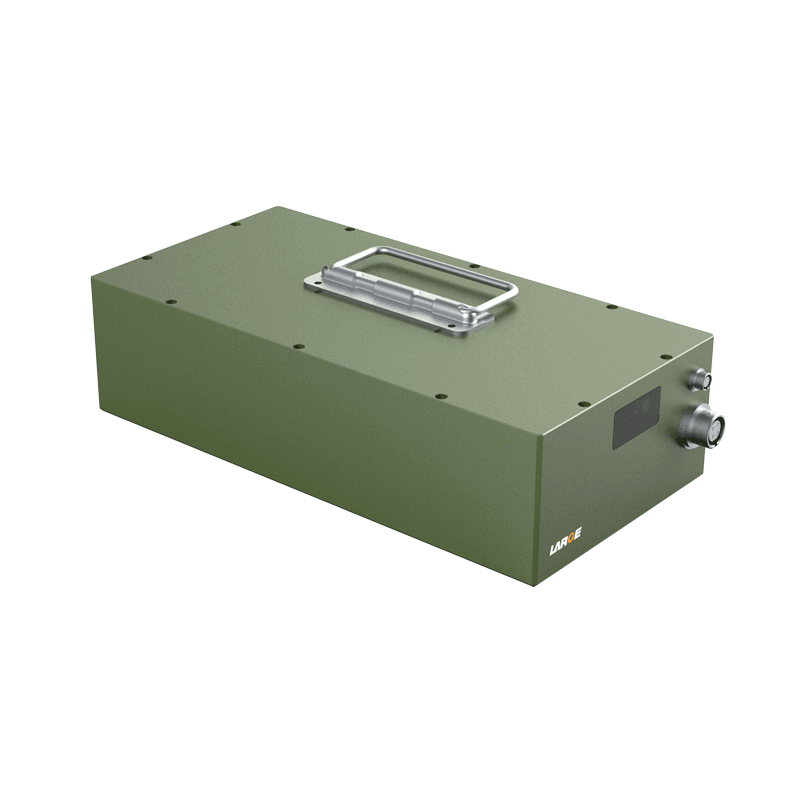

18650 25.9V 27.5Ah Low Temperature Battery for Warm Up Bags

Product Detail

Product number: 08DQ0024-01

Cell model:18650/2500mAh/3.7V

Battery specification: 18650/7S11P/27.5Ah/25.9V

Nominal voltage:25.9V

Nominal capacity:27.5Ah

Charging voltage: 29.4V

Charging current: ≤5.5A

Discharging current: 15.5A

Instant discharging current: 20.0A

End-off voltage: 17.5V

Internal resistance: ≤100mΩ

Battery weight: 4.95Kg

Product dimension: 80*183.5*323.5mm

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~25 ℃

Temperature protection: 70℃±5℃

Battery case: metal plate case

Lithium ion battery protection: capacity calculation, short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

*
*
*
