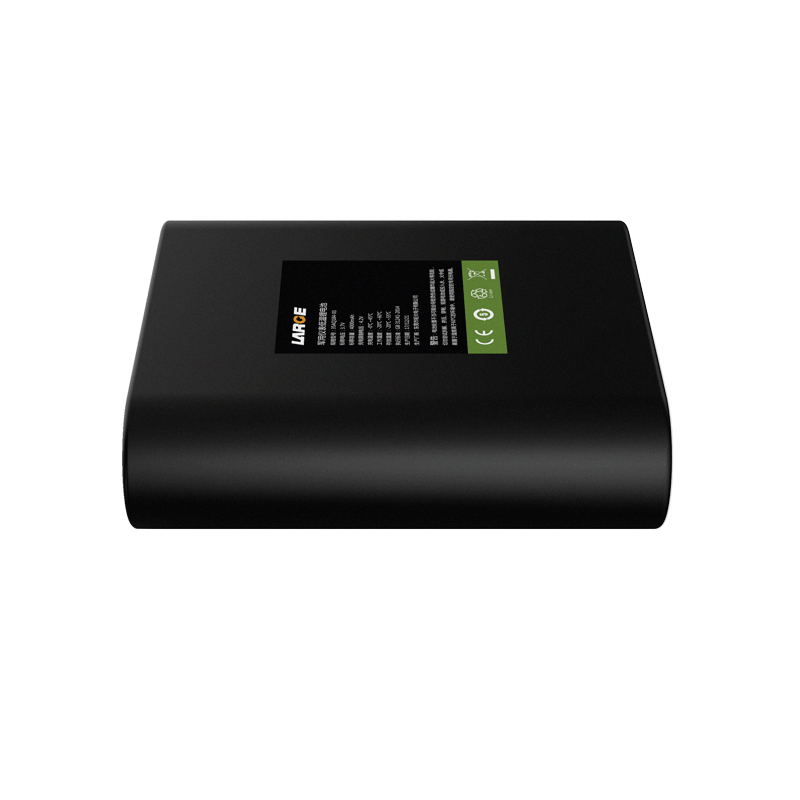

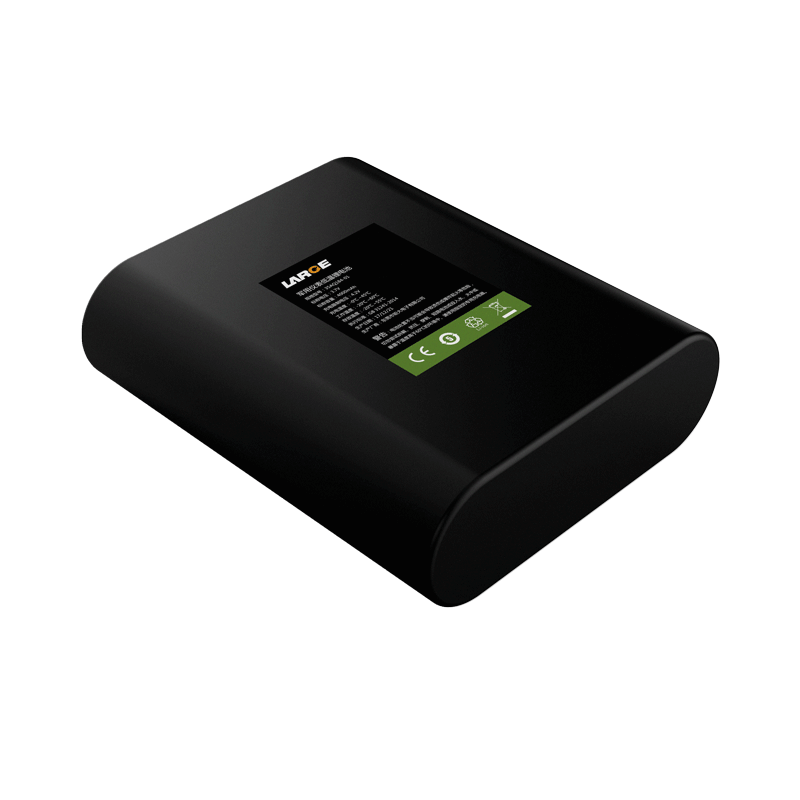

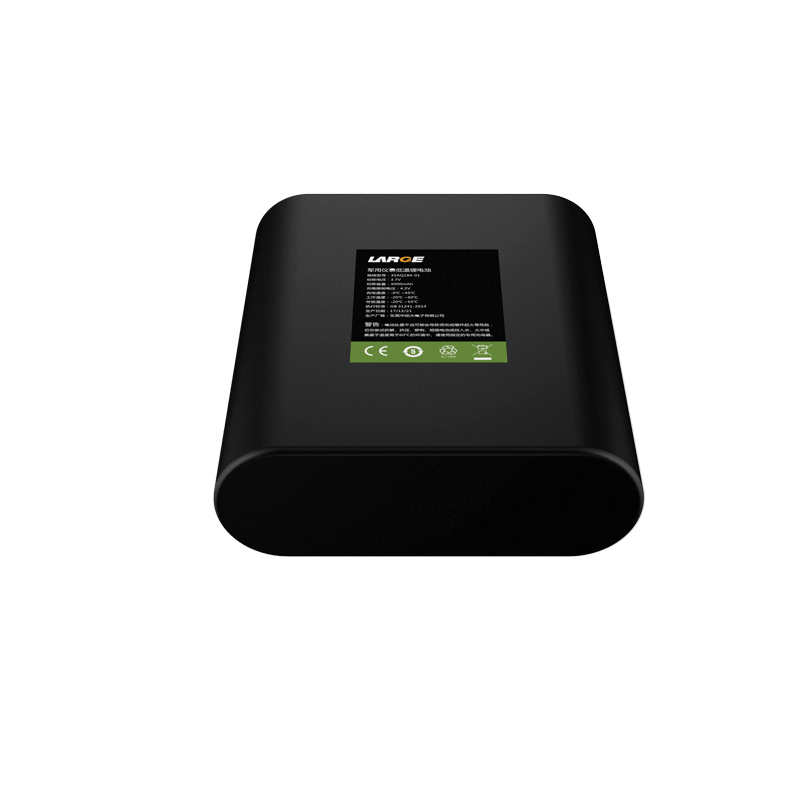

Custom Lithium ion Battery Pack

3.7V 4000mAh 18650 low temperature battery pack for military instrument

  • Model number:35AQ184-01

  • Nominal voltage:3.7V

  • Nominal capacity:4000mAh

  • Battery cell:18650/3.7V/2000mAh

  • Dimension:70*40*20mm(Max)

  • Application:military low temperature instrument

Product Detail

Product number: 35AQ184-01

Cell model:18650/3.7V/2000mAh

Battery specification: 18650-1S2P/3.7V/4000mAh

Nominal voltage:3.7V

Nominal capacity:4000mAh

Charging voltage: 4.2V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 4A

End-off voltage: 2.5V

Internal resistance: ≤120mΩ

Battery weight: 90g

Product dimension: 70*40*20mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, etc.

Application field: military low temperature instrument


*
*
*
