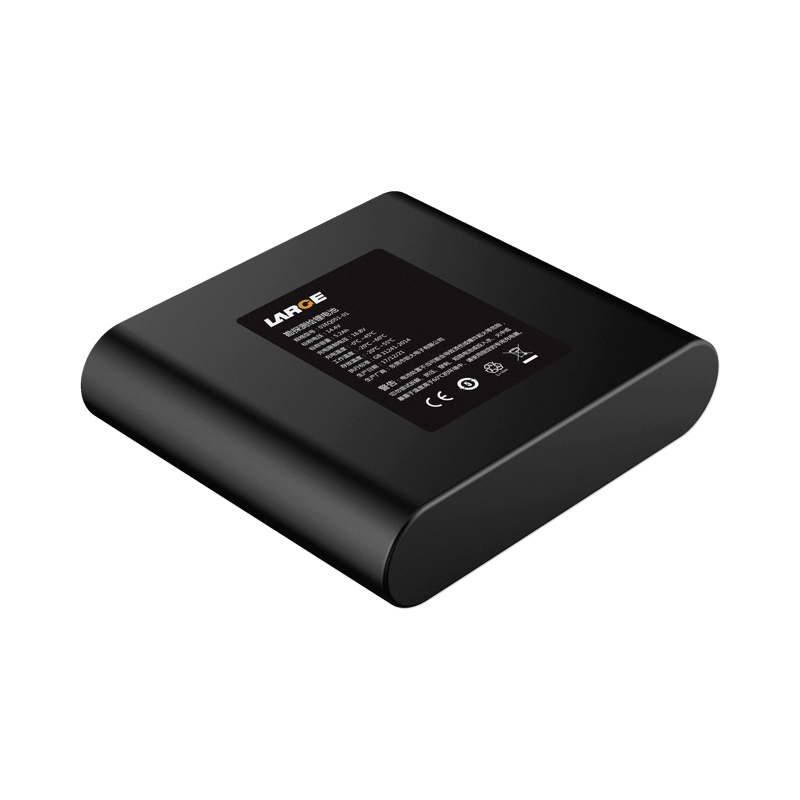

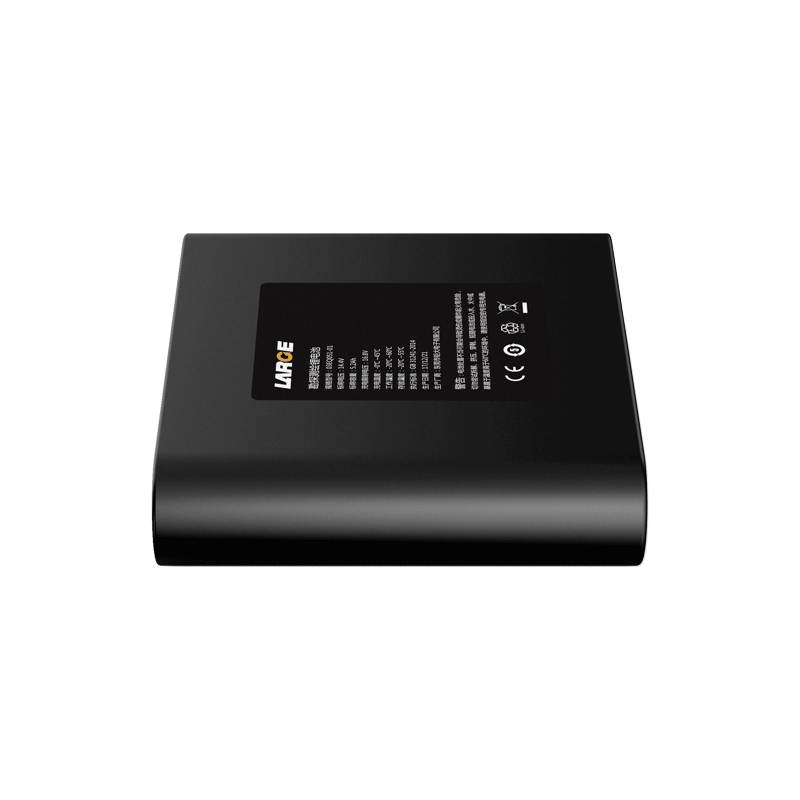

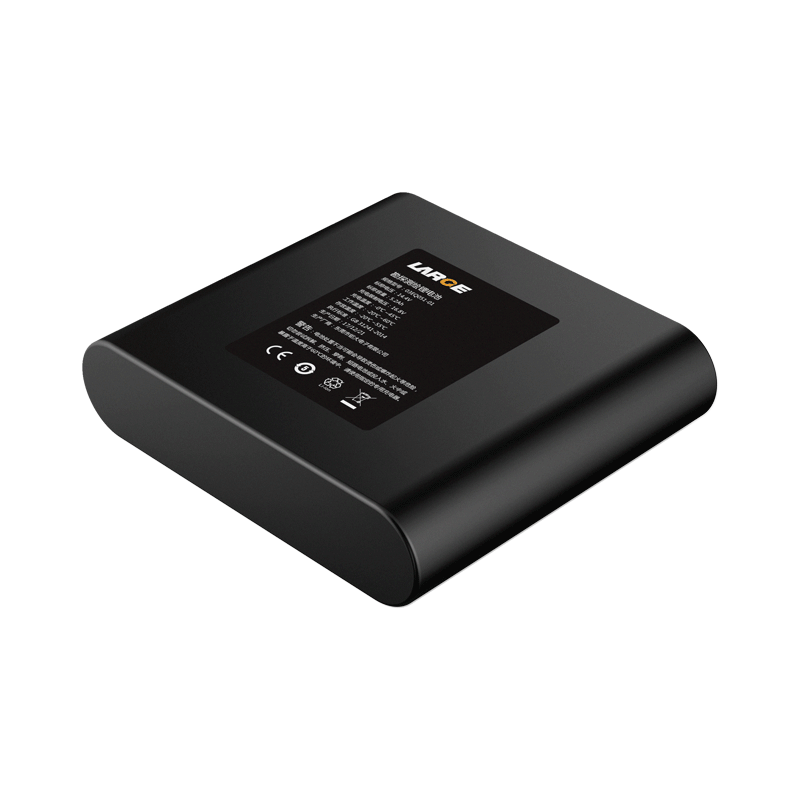

18650 14.4V 5.2Ah Lithium Battery for Test and Measurement Equipment

18650 14.4V 5.2Ah Lithium Battery for Test and Measurement Equipment

Product number: 03EQ051-01

Cell model：18650/14.4V/5.2Ah

Battery specification: 18650-4S2P/14.4V/5.2Ah

Nominal voltage：14.4V

Nominal capacity：5.2Ah

Charging voltage: 16.8V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 3.0A

End-off voltage: 3.0V

Internal resistance: ≤280mΩ

Battery weight: 400g

Product dimension: 170*75*22mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: special application, test and measurement equipment
